4KAF8000 4K Auto Focus Digital Microscope (1x – 102x)

4KAF8000LBSm28 4K Ultra HD auto focus digital microscope with basic stand and 28 inch 4k ultra hd monitor
4KAF8000LUSm28 4K Ultra HD auto focus digital microscope with universal boom stand and 28 inch ultra hd monitor
4KAF8000LABm28 4K Ultra HD auto focus digital microscope with articulating arm stand and 28 inch 4k ultra hd monitor
4KAF8000LBS 4K Ultra HD auto focus digital microscope with basic stand
4KAF8000LUS 4K Ultra HD auto focus digital microscope with universal boom stand
4KAF8000LAB 4K Ultra HD auto focus digital microscope with articulating arm stand
4KAF8000LBSm28
4KAF8000LUSm28
4KAF8000LABm28
4KAF8000LBS
4KAF8000LUS
4KAF8000LAB
previous arrowprevious arrow
next arrownext arrow

4KAF8000LBSm28
4KAF8000LUSm28
4KAF8000LABm28
4KAF8000LBS
4KAF8000LUS
4KAF8000LAB
previous arrow
next arrow

4K Ultra HD digital microscope   Measurement software   HDMI output Auto focus digital microscope                                                   Starting at $5995+

The 4KAF8000 4K Ultra HD auto focus microscope offers high definition 4K Ultra HD quality inspection with incredible HD image quality and magnification along with high quality color reproduction, contrast, and resolution. The system comes standard with the 5+ lens, which has an optical magnification range of 3.1x to 34.4x, and digital zoom up to 68.9x on a 28” 4K Ultra HD monitor via HDMI output. Other lens options are available for applications requiring different magnification ranges or working distances. The system includes a remote control panel with 2m cable, allowing easy control from a distance if needed.

The 4KAF8000 can be customized with different stands, including basic stand, dual sliding arm stand, universal boom stand, and articulating arm stand. For applications requiring some measurement, XY measurement stages are a great option to pair with the auto focus 4K digital microscope. The system includes an adjustable high intensity LED ring light that provides bright, uniform lighting, but can also be paired with other lighting options available, such as polarizer lighting, dual goose arm lighting, etc.

✓ High definition image quality and excellent resolution 4K Ultra HD
✓ Exceptional color rendition and contrast color control
✓ Large field of view range 0.4″ to 7.8″ standard, and up to 20.7″ with optional lens
✓ Possible long working distance range: 4.6″ to 15.4″; standard lens: 6.7″
✓ 1x to 102x zoom (with optional lens)

4KAF8000 4K Auto Focus Microscope Key Features

  • Real time viewing on monitor for quality assurance
  • High accuracy and detailed inspection
  • Ergonomic design to improve operator experience and production efficiencies
  • Convenient documentation and traceability function for quality
    control records
  • Optional video recorder available for image/video capture.

4KAF8000 Digital Microscope Applications

  • Production
  • Laboratory
  • Micro-assembly
  • Electronics
  • Micro-mechanics
  • Automotive
  • Dental Technology
  • Medical Device
  • Forensics
  • Quality Control
  • Presentation and Training

4KAF8000 4K Auto Focus Microscope Camera Specifications

(Mobile: swipe left for horizontal scrolling)

Technical Specifications
Image Sensor1/2.3-type Exmor R CMOS
Number of effective pixels8.93 Megapixels
Signal System2160p/29.97, 2160p/25
1080p/59.94, 1080p/50, 1080p/29.97, 1080p/25,
1080i/59.94, 1080i/50,
720p/59.94, 720p/50, 720p/29.97, 720p/25
Minimum illumination50%
High sensitivity modeColor: 0.75 1x (F1.6, AGC on, 1/30 s)
Normal modeColor: 3.0 1x (F1.6, AGC on, 1/30 s)
Recommended illumination100 1x to 100,000 1x
GainAuto/Manual (0 step to 28 step, +2 step/total 15 steps)
Max. Gain Limit (6 step to 28step, +2 step/total 12 steps)
Shutter speed1/1 s to 1/10,000 s, 22 steps
Sync systemInternal
Exposure controlAuto, Manual, Priority mode (shutter priority & iris priority),
Bright, EV compensation, Slow AE
Backlight compensationYes
Aperture control16 steps
White balanceAuto, ATW, Indoor, Outdoor, Outdoor Auto,
Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), One-push, Manual
Lens12x optical zoom
f=3.9 mm (wide) to 46.8 mm (tele)
F1.8 to F2.0
Digital zoom12x (144x with optical zoom)
Focusing systemAuto One-push AF, Manual, Interval AF, Zoom Trigger AF,
Focus compensation in ICR on
Horizontal viewing angle70.7° (wide end) to 6.4° (tele end)
Minimum object distance10 mm (wide end) to 1500 mm (tele end)
(Default: 300 mm)
Auto ICRYes
Visibility enhancerYes
Noise reductionYes (6 steps)
Progressive scan modeYes
Image stabilizerNo
StableZoomNo
Digital outputYes
Spherical privacy zone maskingYes
Motion detectionYes
AlarmNo
Slow AE responseYes
Picture effectsE-Flip, Nega Art, Black & White, Mirror image,
Color enhancement
Picture freezeYes
Slow shutterYes
Temperature readoutYes
Title display20 characters/line, max. 11 lines
Camera mode displayYes
Video output HDDigital : HDMI
Video output SDNo
Camera control interfaceVISCA (RS232)
Baud rate: 9.6 Kbps, 19.2 Kbps, 38.4 Kbps,
115.2 Kbps, Stop bit: 1 bit
Power requirements6.0…..12.0 V DC
Power consumption2.9 W (zoom/focus inactive)
Operating temperature-5ºC to +60ºC (23°F to 140°F)
Storage temperature-20ºC to +60ºC (-4°F to 140°F)
Operating humidity20% to 80%
Storage humidity20% to 95%
Dimensions (W x H x D)72.0 x 76.0 x 135.0mm
Mass900 g
]

Click for PDF of different HD Digital Microscope models and options

Measurement software  YSC Measurement 101 Software Options

4K Ultra HD has more resolution than HD 1080p

Full HD 1080p vs. 4K Ultra HD auto focus digital microscope

SD vs HD vs 4K dimensions

4KAF8000 4K Auto Focus Microscope Technical Specifications

(Mobile: swipe left for horizontal scrolling)

LensWorking DistanceMagnification*
Optical (Digital)
Horizontal Field of View
Optical (Digital)
2+390 mm1.2x - 13.3x (26.7x)525 mm - 46.5 mm (23.310 mm)
15.4 inches20.7" - 1.8" (0.94")
4+246 mm1.9x - 22.8x (45.6x)318 mm - 27.2 mm (13.6 mm)
9.7 inches12.5" - 1.1" (0.5")
5+ (standard)170 mm3.1x - 34.4x (68.9x)198 mm** - 18 mm (9 mm)
6.7 inches7.8" - 0.7" (0.4")
10+118mm4.4x - 50.8x (101.6x)140 mm - 12.2 mm (6.1 mm)
4.6 inches5.5" - 0.5" (0.2")
*Video magnification obtained using a 28" 4K UHD monitor (use 9/16 multiplier for vertical field of view calculation)

**Non-vignetting HFOV

Standard Output

4k auto focus microscope Standard output

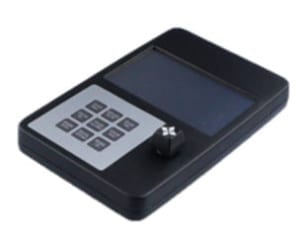

Included Remote Control

Remote control

Optional Outputs  (for HDAF900 models only)
