Starting at $2800+

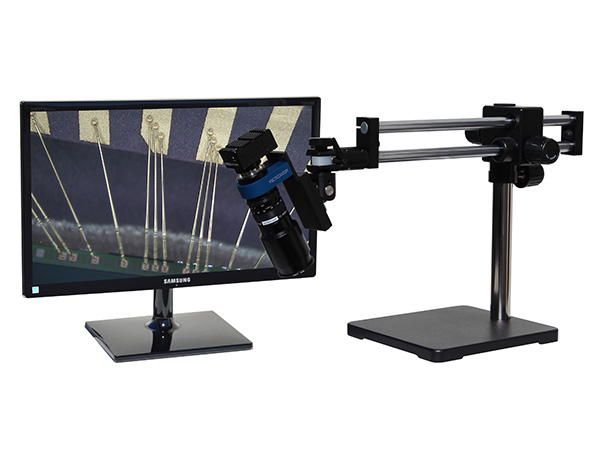

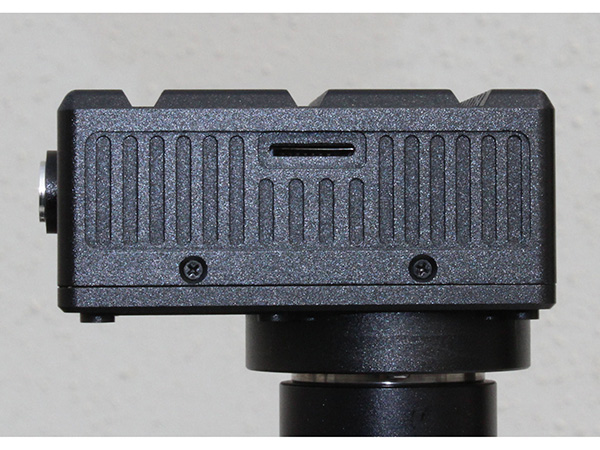

4K101 is the ideal 4K Ultra HD digital microscope with exceptional digital camera technology featuring SONY ExmorR sensor to deliver 4K Ultra HD resolution motion video with no lag time. The 4K manual focus digital microscope can be configured with a 24” UHD monitor for possible magnification range of 4x-91x, or 5x-106x on 28″ UHD monitor. With long working distance range of 4.5” to 12” and diagonal field of view range of 0.26″ to 5.46″, the system works well for assembly, inspection, training, real-time viewing, image capture and motion video documentation. The digital microscope has a TF (micro SD) card for saving images in bmp or raw formats (3840×2160) internally while connected to a 4K monitor through HDMI, allowing full operation of the unit without requiring a computer connection.
The 4K101 can be configured with various stands, XY measurement stage, and lighting accessories. It includes an adjustable high intensity LED ring light with a diffuser glass filter to provide bright uniform lighting while also giving option to reduce glare on reflective parts, where applicable, for great picture quality. Other lighting choices are available, including polarizer lighting, dual goose arm lighting, and even a laser pointer accessory (great for locating inspection area visually). For applications requiring measurements on the 4K101, XY measurement stages are also available to provide manual measurement assistance.
4K101 4K Ultra HD Digital Microscope Benefits
- 4K Ultra HD digital microscope
- Designed ergonomically with operator in mind to minimize eye and neck strain
- Great Depth of Field
- Long Working Distance range: 4.5″ to 12″
- Adjustable Viewing Angles (0 to 90 degrees)
- Real Time Full Motion 4K Ultra HD 60fps
- Large 4K UHD monitors available for discussion or training purposes
- Image capture (8 MP) and motion video capture (4K Ultra HD) directly to SD card without computer connection
- Wide zoom ratio with constant focus
- Full camera, lens and lighting adjustments

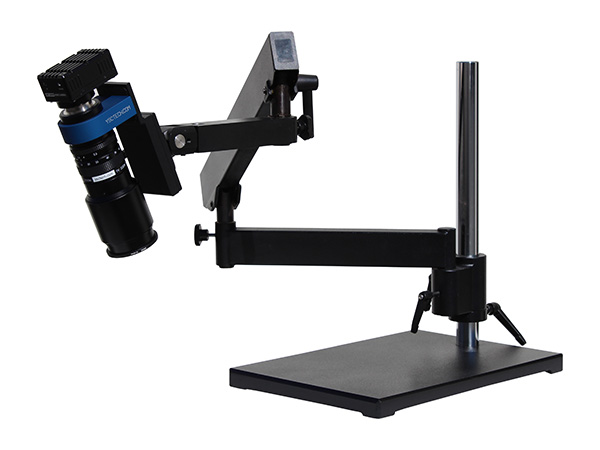

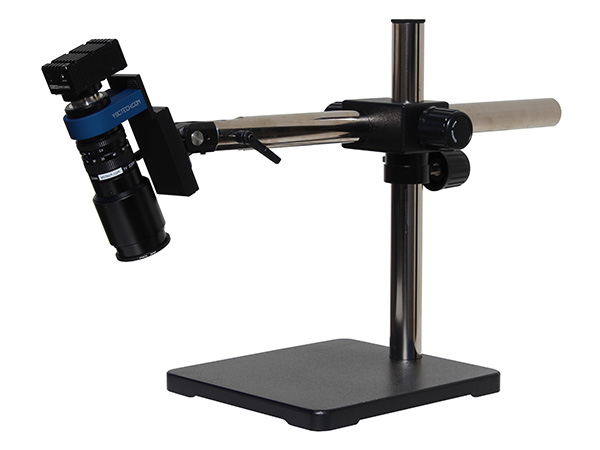

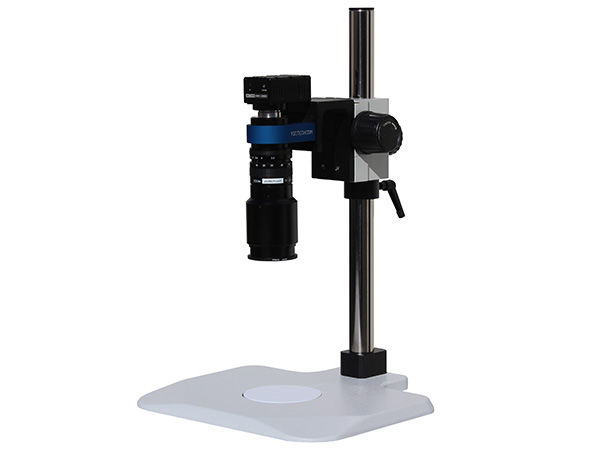

- Many stand options: basic stand, boom stand, dual sliding arm stand, articulating arm stand
- Adjustable high intensity LED ring light with diffuser glass included
- Accessories available: laser pointer, halogen/fluorescent lighting, XY measurement stages
- Measurement software available on equivalent models (4K401)
4K101 Digital Microscope Applications
- Assembly
- Production
- Quality Control
- Failure Analysis
- Electronics
- Documentation
- Video Recording
- Medical Device
- Machining
- Aerospace
- Natural Science
- Training
- Education
- Research and Development
- Forensics
- Pharmaceuticals
- Micro Electronics
- SMT
- Semiconductor
Click for PDF of different HD Digital Microscope models and options
4K Ultra HD has more resolution than HD 1080p
YSC Measurement 101 Software Options
4K101 4K Ultra HD Digital Microscope Viewing Chart
Working Distance | Field of View (Diagonal) | Video Mag. with 28" Monitor | Video Mag. with 24" Monitor | |||
4.5" | 40 mm | 7 mm | 18x | 106x | 15x | 91x |
| 1.59" | 0.26" | |||||
5" | 48 mm | 8 mm | 15x | 87x | 13x | 74x |
| 1.91" | 0.32" | |||||
6" | 63 mm | 11 mm | 11x | 65x | 10x | 56x |
| 2.49" | 0.43" | |||||
8" | 87 mm | 15 mm | 8x | 46x | 7x | 39x |
| 3.44" | 0.61" | |||||
10" | 114 mm | 20 mm | 6x | 35x | 5x | 30x |
| 4.50" | 0.79" | |||||
12" | 139 mm | 24 mm | 5x | 29x | 4x | 25x |
| 5.46" | 0.95" | |||||
| Specifications subject to changes and E&O without notice and liabilities. | ||||||
