Starting at $2900+
4K102 is the optimal 4K Ultra HD digital microscope featuring leading SONY ExmorR sensor technology to deliver 4K Ultra HD resolution motion video with no lag time. The 4K digital microscope offers a high magnification range of 14x-740x on a 28” UHD monitor with included front adapters and rear couplers’ combinations, and a total possible range of 5x-37003x with other front adapters, rear couplers and high-powered objective lenses available. The manual focus system has long working distance range of 1.8” to possible 13” with possible field of view range of 0.038″ to 3.2″, and is ideal for assembly, inspection, training, real-time viewing, image capture and motion video documentation. The 4K Ultra HD microscope works as a standalone unit by connecting directly to monitor through HDMI connection, and also features a TF (micro SD) card to directly save images onto in bmp or raw formats (3840×2160), without any computer connection.

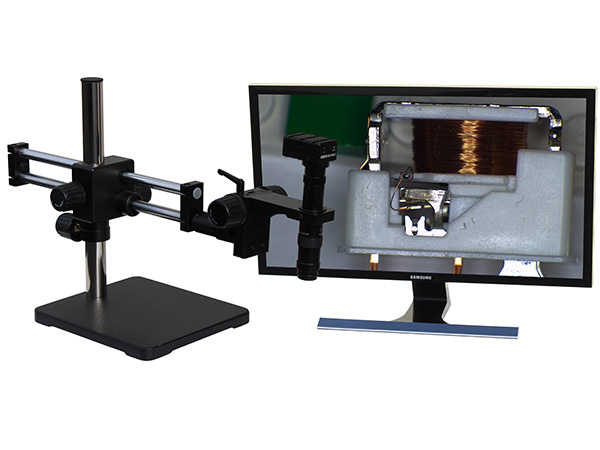

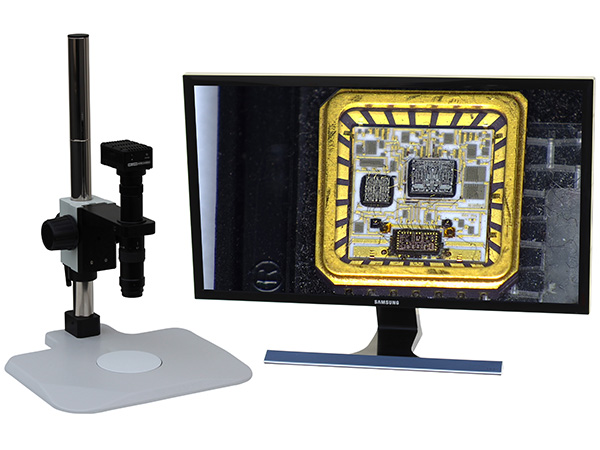

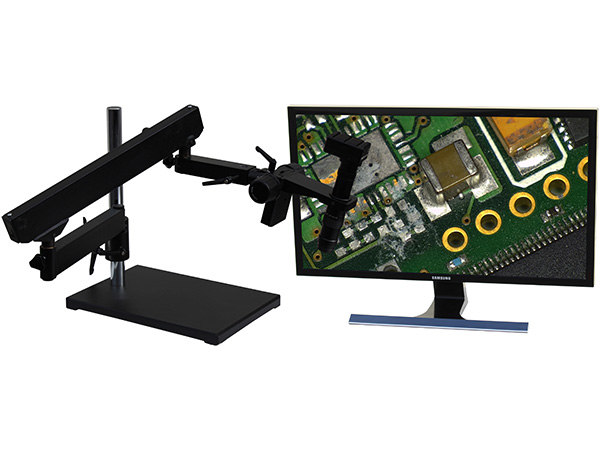

The 4K102 comes standard with an adjustable high intensity LED ring light to provide uniform lighting, and also includes a dimmer glass filter to reduce glare on highly reflective components, if needed. Other lighting options include polarizer lighting, dual goose arm lighting, and fluorescent/halogen lighting. The digital microscope can be configured with various stands, such as basic post stand, boom stand, dual sliding arm stand, and articulating arm stand. It can even be used with the optional laser light pointer help visually locate the inspection area. XY measurement stages are also a good option to consider for applications also requiring measurement on the 4K102.
4K102 High Magnification 4K Ultra HD Digital Microscope Benefits
- 4K Ultra HD high magnification digital microscope
- Ergonomic design to reduce operator eye and neck fatigue
- Great Depth of Field
- Possible long working distance range: 1.8″ to 13″
- Adjustable Viewing Angles (0 to 90 degrees)
- Real Time Full Motion 4K Ultra HD 60fps
- Large 28″ UHD monitor available for discussion or training purposes
- Save images (8MP) and motion video (4K Ultra HD) directly to SD card without computer connection
- Wide zoom ratio with constant focus
- Full camera, lens and lighting adjustments
- Many stand options
- Adjustable high intensity LEDs with diffuser glass included
- Other accessories: laser pointer, fluorescent/halogen lighting, XY measurement stages
- Measurement software available on other model equivalents (4K406)
4K102 4K HD Digital Microscope Applications
- Assembly
- Production
- Quality Control
- Failure Analysis
- Electronics
- Documentation
- Video Recording
- Medical Device
- Machining
- Aerospace
- Natural Science
- Training
- Education
- Research and Development
- Forensics
- Pharmaceuticals
- Micro Electronics
- SMT
- Semiconductor
Click for PDF of different 4K102 models and options
4K Ultra HD has more resolution than HD 1080p
YSC Measurement 101 Software Options
4K102 High Magnification 4K Ultra HD Digital Microscope Viewing Chart
(Mobile: swipe left for horizontal scrolling)
| Adapter: | 0.3x | 0.5x | 0.75x | 1x (standard) | 1.5x | 2x |
| Video Magnification on 28" Monitor: | 17x - 111x | 29x - 185x | 43x - 278x | 58x - 370x | 86x - 555x | 115x - 740x |
| Field of View (Diagonal): | 41 mm - 6.4 mm | 24.6 mm - 3.8 mm | 16.4 mm - 2.6 mm | 12.3 mm - 1.9 mm | 8.2 mm - 1.3 mm | 6.2 mm - 0.96 mm |
| 1.6" - 0.25" | 0.97" - 0.15" | 0.65" - 0.10" | 0.48" - 0.075" | 0.32" - 0.050" | 0.24" - 0.038" | |
| Working Distance: | 331 mm (13.0") | 199 mm (7.8") | 131 mm (5.2") | 97 mm (3.8") | 61 mm (2.4") | 46 mm (1.8") |
| *Data are estimated by calculation. Optional rear couplers available (0.35x, 0.5x, 0.75x, 1.5x, 2x) for lowering or increasing magnification without changing working distance. Video magnification will be increased by the same factor. Field of view will be changed by inverse factor. | ||||||
Below Viewing Chart is for System with 0.5x Rear Coupler
| Adapter: | 0.3x | 0.5x | 0.75x | 1x (standard) | 1.5x | 2x |
| Video Magnification on 28" Monitor: | 9x - 56x | 14x - 93x | 22x - 139x | 29x - 185x | 43x - 278x | 58x - 370x |
| Field of View (Diagonal): | 82 mm - 12.8 mm | 49.2 mm - 7.7 mm | 32.8 mm - 5.1 mm | 24.6 mm - 3.8 mm | 16.4 mm - 2.6 mm | 12.3 mm - 1.91 mm |
| 3.2" - 0.50" | 1.94" - 0.30" | 1.29" - 0.20" | 0.97" - 0.151" | 0.65" - 0.100" | 0.48" - 0.075" | |
| Working Distance: | 331 mm (13.0") | 199 mm (7.8") | 131 mm (5.2") | 97 mm (3.8") | 61 mm (2.4") | 46 mm (1.8") |
| *Data are estimated by calculation. Optional rear couplers available (0.35x, 0.5x, 0.75x, 1.5x, 2x) for lowering or increasing magnification without changing working distance. Video magnification will be increased by the same factor. Field of view will be changed by inverse factor. | ||||||
(Mobile: swipe left for horizontal scrolling)
| Objective: | 1x (standard) | 5x | 10x | 20x | 50x | 100x |
| Video Magnification on 28" Monitor: | 58x - 370x | 288x - 1850x | 576x - 3700x | 1151x - 7401x | 2878x - 18502x | 5756x - 37003x |
| Field of View (Diagonal): | 12.3 mm - 1.91 mm | 2.5 mm - 0.38mm | 1.2 mm - 0.19 mm | 0.62 mm - 0.096 mm | 0.25 mm - 0.038 mm | 0.12 mm - 0.019 mm |
| 0.484" - 0.075" | 0.097" - 0.015" | 0.048" - 0.008" | 0.024" - 0.004" | 0.010" - 0.002" | 0.005" - 0.001" | |
| Working Distance: | 97 mm (3.8") | 44.5 mm (1.8") | 34 mm (1.3") | 31 mm (1.2") | 20.5 mm (0.8") | 12.5 mm (0.5") |
| 11.7 mm (0.5") | 15.33 mm (0.6") | 11.02 mm (0.4") | 7.9 mm (0.3") | 1.75 mm (0.1") | ||
| *Data are estimated by calculation. Optional rear couplers available (0.35x, 0.5x, 0.75x, 1.5x, 2x) for lowering or increasing magnification without changing working distance. Video magnification will be increased by the same factor. Field of view will be changed by inverse factor. | ||||||
