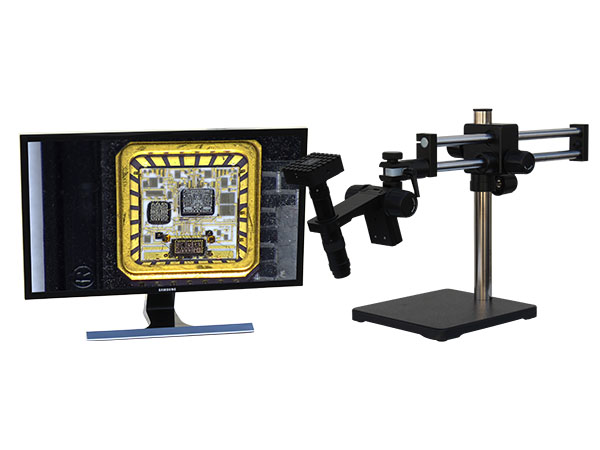

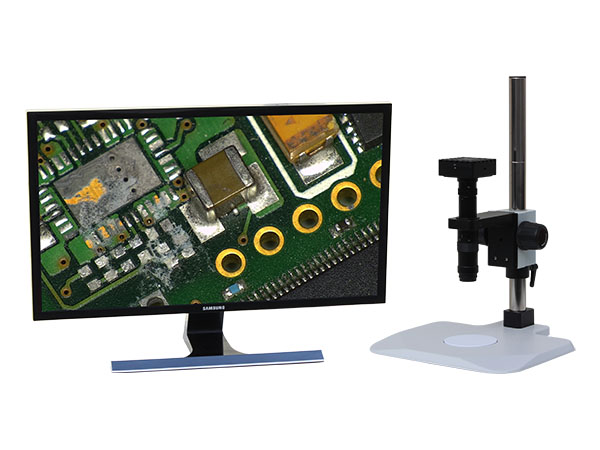

4K202 is the ideal 4K UHD digital microscope for applications requiring small field of view for detailed micro-inspections. The system can be paired with 24 or 28 inch 4K Ultra HD monitor paired to deliver possible magnification of 5x-1480x (24”) or 17x-37003x (28”) while featuring long working distance range of 1.8” to 13”. With a field of view range of 0.038″ up to possible 3.2″, it works great for assembly, inspection, training, real-time viewing, image capture and motion video documentation applications. The 4K202 has sophisticated high definition digital camera technology to deliver 4K Ultra HD resolution motion video with no lag time.
The manual focus digital microscope has a TF (micro SD) card that images can be saved directly to in bmp or raw formats (3840×2160) without requiring a computer connection. The 4K202 also has integrated measurement software built in to the camera, allowing for complete measurement functionality as a standalone inspection unit. Camera and measurement settings can be easily controlled with a simple mouse connection and monitor connection via HDMI output.

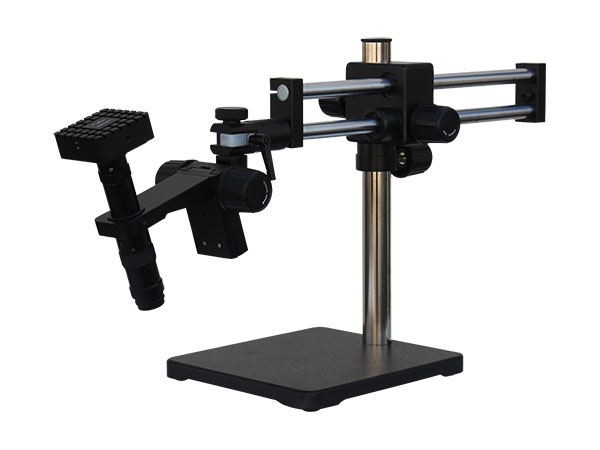

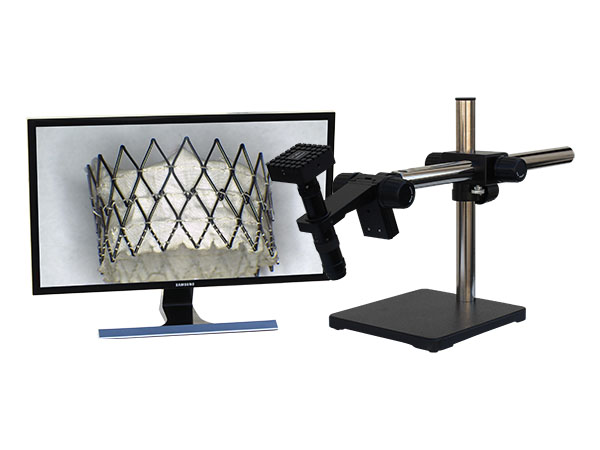

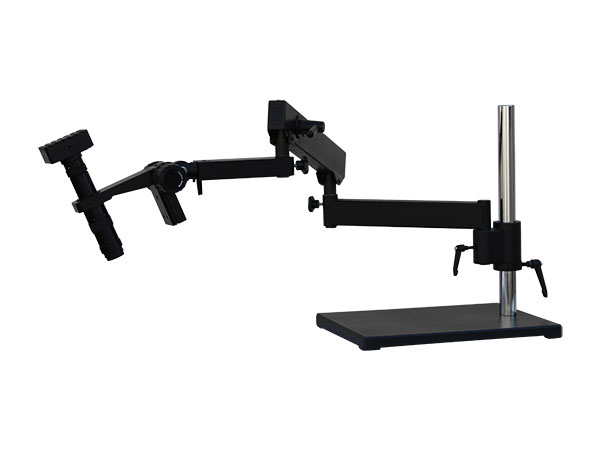

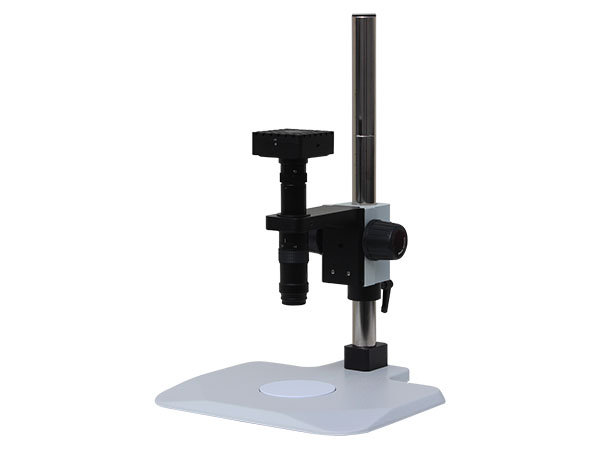

The 4K202 4K UHD digital microscope comes standard with an adjustable high intensity LED ring light to bring bright uniform lighting to inspections, and also includes a diffuser glass filter for applications requiring glare reduction on highly reflective parts. Other lighting options, such as polarizer lighting and dual gooseneck arm lighting, are also available. The optional laser pointer accessory can also be used with the system to visually pinpoint inspection area. The 4K UHD digital microscope can be paired with a variety of stands, including basic stand, universal boom stand, dual sliding arm stand and articulating arm stand. XY measurement stages can also be used for applications benefiting from manual measurements over digital video measurements.
4K202 4K UHD Digital Microscope Benefits
- 4K Ultra HD high magnification digital microscope
- Great Ergonomics to minimize eye and neck fatigue
- Great Depth of Field
- Long Working Distance range: 1.8″ to 13″
- Adjustable Viewing Angles (0 to 90 degrees)
- Real Time Full Motion 4K Ultra HD 60fps
- Large HD monitor options for discussion or training purposes
- Save 8 MP images and 4K Ultra HD motion videos directly to SD card (no PC needed)
- 4K Ultra HD video motion can be recorded directly to PC via optional USB 3.0 device
- Wide zoom ratio with constant focus
- Easy full camera, lens and lighting adjustments
- Many stand options
- Adjustable high intensity LEDs with diffuser glass included
- Optional accessories: laser pointer, fluorescent/halogen light, XY measurement stages
- Integrated measurement software included
4K202 Digital Microscope Applications
- Assembly
- Production
- Quality Control
- Failure Analysis
- Electronics
- Documentation
- Video Recording
- Medical Device
- Machining
- Aerospace
- Natural Science
- Training
- Education
- Research and Development
- Forensics
- Pharmaceuticals
- Micro Electronics
- SMT
- Semiconductor
Click for PDF of different HD Digital Microscope models and options
4K UHD Digital Microscope Camera Specifications
- Sensor size: 1/1.8 “
- Effective pixels: 12 million pixels
- Live image resolution: 1920*1080@60FPS 3840*2160@30FPS
- Output: HDMI, TF microSD card
- Pixel size: 1.85*1.85µm
- Power : DC-12V/1A
- User Interface: Digital design, mouse operation, ergo design
- Labeling functions: Point coordinates, cross lines, coordinate systems, text annotations
- Measurement Functions: Line length, line length, curve length, parallel line distance, point line distance
- Center distance measurements: The radius fixed circle, two points setting circle, three points setting circle
- Geometric measurement: Line length, radius fixed circle, two point fixed circle, three point fixed circle, concentric circles
- Geometric area measurements: Polygon, square
- Image: Support for 4K static photos
- Video: Support 4K video
Integrated Measurement Software (no PC needed)
Main Features
- Video recording
- Preview images and videos taken
- Adjust software settings easily with mouse
- Conduct measurements

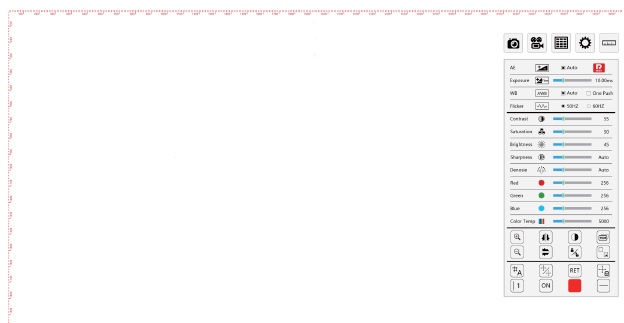

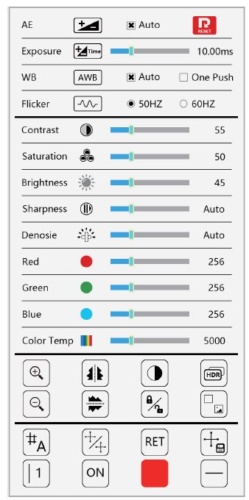

Interface Settings
(from top to bottom)
Automatic exposure, Exposure, White Balance, Anti-scintillation, Reset, Contrast, Saturation, Brightness, Sharpness, Noise reduction, Red, Green, Blue, Color temperature
(Grid, from top left to bottom right)
Zoom in, Horizontal mirror, Monochrome image, HDR, Zoom out, Vertical mirror, Image still, Image contrast, Select grid, Grid switch, Reset grid, Save grid, Selection line, Line switch, Line color, Line width

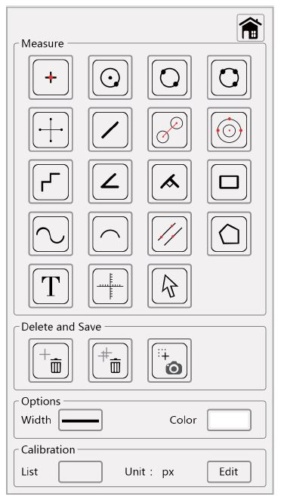

Measurement Features
(Measure: from top to bottom)
Coordinate point, Circle radius measurement, 2 point circle, 3 point setting circle, Cross line, Line, Center distance, Concentric circle, Broken line measurement, Angle measurement, Click line spacing, Rectangle, Curve measurement, Arc length measurement, Parallel lines, Polygon, Text annotation, Coordinate system, Complete measurement
(Delete and Save: from left to right)
Delete, Delete All, Screen Capture
4K Ultra HD has more resolution than HD 1080p
YSC Measurement 101 Software Options
4K202 4K UHD Digital Microscope Viewing Chart
(Mobile: swipe left for horizontal scrolling)
| Adapter: | 0.3x | 0.5x | 0.75x | 1x (standard) | 1.5x | 2x |
| Video Magnification on 28" Monitor: | 17x - 111x | 29x - 185x | 43x - 278x | 58x - 370x | 86x - 555x | 115x - 740x |
| Field of View (Diagonal): | 41 mm - 6.4 mm | 24.6 mm - 3.8 mm | 16.4 mm - 2.6 mm | 12.3 mm - 1.9 mm | 8.2 mm - 1.3 mm | 6.2 mm - 0.96 mm |
| 1.6" - 0.25" | 0.97" - 0.15" | 0.65" - 0.10" | 0.48" - 0.075" | 0.32" - 0.050" | 0.24" - 0.038" | |
| Working Distance: | 331 mm (13.0") | 199 mm (7.8") | 131 mm (5.2") | 97 mm (3.8") | 61 mm (2.4") | 46 mm (1.8") |
| *Data are estimated by calculation. Optional rear couplers available (0.35x, 0.5x, 0.75x, 1.5x, 2x) for lowering or increasing magnification without changing working distance. Video magnification will be increased by the same factor. Field of view will be changed by inverse factor. | ||||||
Below Viewing Chart is for System with 0.5x Rear Coupler
| Adapter: | 0.3x | 0.5x | 0.75x | 1x (standard) | 1.5x | 2x |
| Video Magnification on 28" Monitor: | 9x - 56x | 14x - 93x | 22x - 139x | 29x - 185x | 43x - 278x | 58x - 370x |
| Field of View (Diagonal): | 82 mm - 12.8 mm | 49.2 mm - 7.7 mm | 32.8 mm - 5.1 mm | 24.6 mm - 3.8 mm | 16.4 mm - 2.6 mm | 12.3 mm - 1.91 mm |
| 3.2" - 0.50" | 1.94" - 0.30" | 1.29" - 0.20" | 0.97" - 0.151" | 0.65" - 0.100" | 0.48" - 0.075" | |
| Working Distance: | 331 mm (13.0") | 199 mm (7.8") | 131 mm (5.2") | 97 mm (3.8") | 61 mm (2.4") | 46 mm (1.8") |
| *Data are estimated by calculation. Optional rear couplers available (0.35x, 0.5x, 0.75x, 1.5x, 2x) for lowering or increasing magnification without changing working distance. Video magnification will be increased by the same factor. Field of view will be changed by inverse factor. | ||||||
(Mobile: swipe left for horizontal scrolling)
| Objective: | 1x (standard) | 5x | 10x | 20x | 50x | 100x |
| Video Magnification on 28" Monitor: | 58x - 370x | 288x - 1850x | 576x - 3700x | 1151x - 7401x | 2878x - 18502x | 5756x - 37003x |
| Field of View (Diagonal): | 12.3 mm - 1.91 mm | 2.5 mm - 0.38mm | 1.2 mm - 0.19 mm | 0.62 mm - 0.096 mm | 0.25 mm - 0.038 mm | 0.12 mm - 0.019 mm |
| 0.484" - 0.075" | 0.097" - 0.015" | 0.048" - 0.008" | 0.024" - 0.004" | 0.010" - 0.002" | 0.005" - 0.001" | |
| Working Distance: | 97 mm (3.8") | 44.5 mm (1.8") | 34 mm (1.3") | 31 mm (1.2") | 20.5 mm (0.8") | 12.5 mm (0.5") |
| 11.7 mm (0.5") | 15.33 mm (0.6") | 11.02 mm (0.4") | 7.9 mm (0.3") | 1.75 mm (0.1") | ||
| *Data are estimated by calculation. Optional rear couplers available (0.35x, 0.5x, 0.75x, 1.5x, 2x) for lowering or increasing magnification without changing working distance. Video magnification will be increased by the same factor. Field of view will be changed by inverse factor. | ||||||
