Starting at $3100+

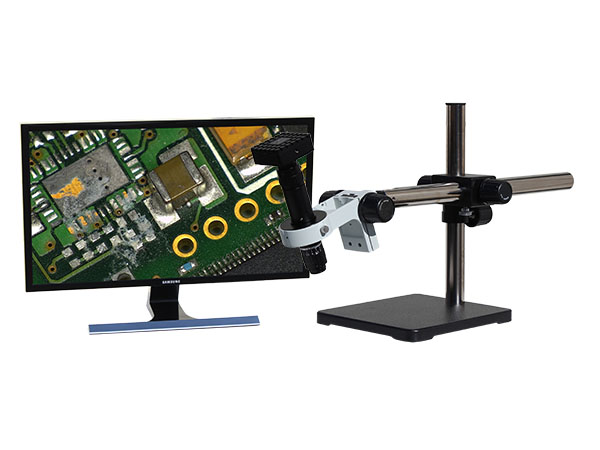

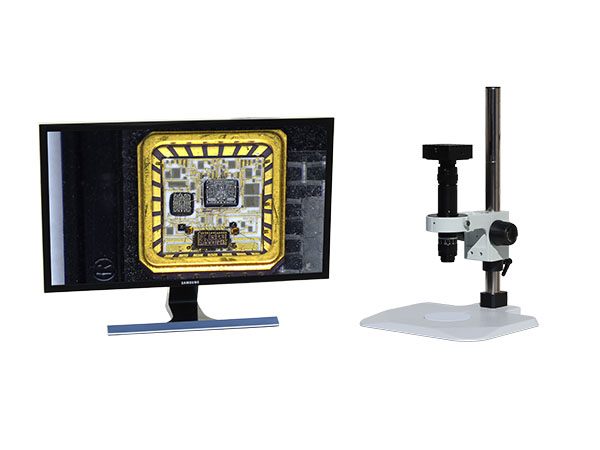

4K206 is a 4K Ultra HD high magnification digital microscope with media saving and built-in software capabilities ideal for using the system as a completely standalone unit. With the included TF (micro SD) card, images can be saved directly to the card in bmp or raw format (3840×2160) without requiring a computer connection. The integrated measurement software allows measurements as well as camera settings to be easily controlled with a mouse while connected to a 4K UHD monitor via HDMI output.
The microscope camera has high definition digital camera technology to deliver 4K Ultra HD resolution motion video with no lag time. The 4K digital microscope has magnification range of 6x-1416x on 24″ UHD monitor or 7x-1652x on 28″ UHD monitor, and long working distance range of 1.5” to 10.6”. The diagonal field of view range of 0.034″ up to possible 3.77″ makes it ideal for assembly, inspection, training, real-time viewing, image capture and motion video documentation applications.

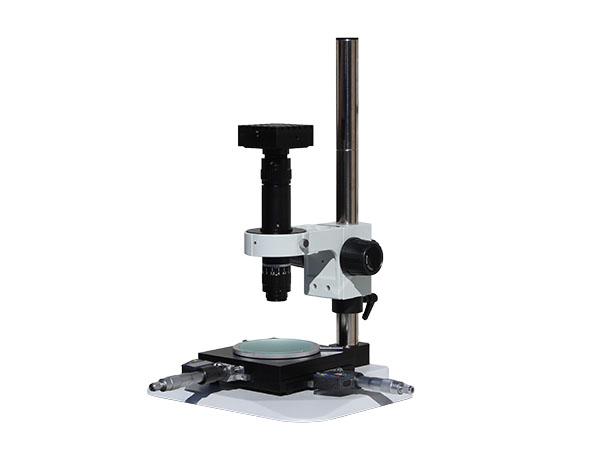

The manual focus 4K206 can be configured with various stands, XY measurement stage, and lighting accessories. Adjustable high intensity LEDs provide bright uniform lighting for great picture quality. Diffuser glass filter can be used to reduce glare from highly reflective parts. Polarizer lighting, coaxial lighting accessory, and dual arm goose arm lighting options are also available for this 4K206. The optional laser light pointer is great for locating the inspection area. XY measurement stages are also available with the 4K206.
4K206 4K High Magnification Digital Microscope Benefits
- 4K Ultra HD digital microscope
- Healthy Ergonomics to reduce eye fatigue and neck stress
- Great Depth of Field
- Long Working Distance range: 1.5″ to 10.6″
- Adjustable Viewing Angles (0 to 90 degrees)
- Real Time Full Motion 4K Ultra HD 60fps
- Large UHD monitor options available for discussion or training purposes
- Media can be saved directly to SD card without PC connection (8 MP images, 4K Ultra HD motion video)
- 4K Ultra HD video motion can be recorded directly to PC via optional USB 3.0 device
- Wide zoom ratio with constant focus
- Full camera, lens and lighting adjustments

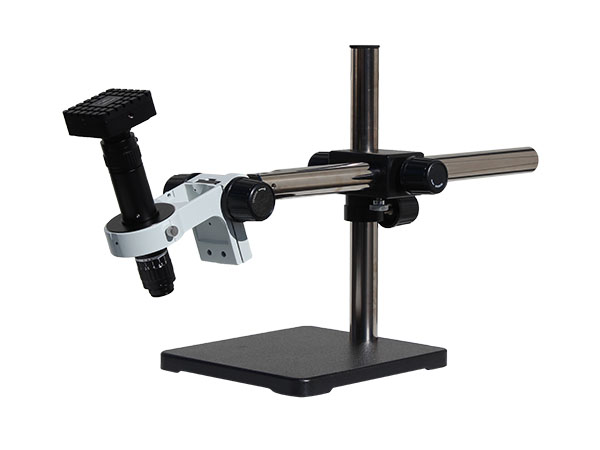

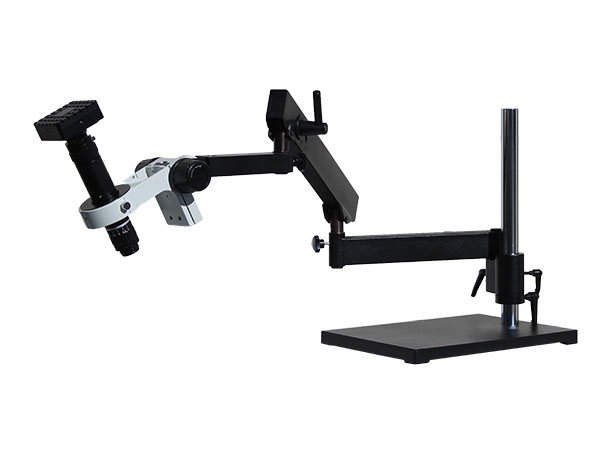

- Many stand options: basic stand, universal boom stand, dual sliding arm stand, articulating arm stand
- Adjustable high intensity LEDs with diffuser glass included
- Accessory options available: laser pointer, fluorescent/halogen lighting, XY measurement stages
4K206 Digital Microscope Applications
- Assembly
- Production
- Quality Control
- Failure Analysis
- Electronics
- Documentation
- Video Recording
- Medical Device
- Machining
- Aerospace
- Natural Science
- Training
- Education
- Research and Development
- Forensics
- Pharmaceuticals
- Micro Electronics
- SMT
- Semiconductor
Click for PDF of different HD Digital Microscope models and options
4K206 Detent Click Stops and Telecentric Features
Optional Digital Microscope Add-On Features
Turret for High Power Objectives
Coaxial Lighting Port
Differential Interference Contrast (DIC)
Eyepiece
4K High Magnification Digital Microscope Camera Specifications
- Sensor size: 1/1.8 “
- Effective pixels: 12 million pixels
- Resolution: 1920*1080@60FPS 3840*2160@30FPS
- Output: HDMI, TF microSD card
- Pixel size: 1.85*1.85µm
- Power : DC-12V/1A
- User Interface: Digital design, mouse operation, ergo design
- Labeling functions: Point coordinates, cross lines, coordinate systems, text annotations
- Measurement Functions: Line length, line length, curve length, parallel line distance, point line distance
- The center distance: The radius fixed circle, two points setting circle, three points setting circle
- Geometric measurement: Line length, radius fixed circle, two point fixed circle, three point fixed circle, concentric circles
- The geometric area: Polygon, square
- Image: Support for 4K static photos
- Video: Support 4K video
Integrated Measurement Software (no PC needed)
Main Features
- Video recording
- Preview images and videos taken
- Adjust software settings easily with mouse
- Conduct measurements and annotations
Interface Settings
(from top to bottom)
Automatic exposure, Exposure, White Balance, Anti-scintillation, Reset, Contrast, Saturation, Brightness, Sharpness, Noise reduction, Red, Green, Blue, Color temperature
(Grid, from top left to bottom right)
Zoom in, Horizontal mirror, Monochrome image, HDR, Zoom out, Vertical mirror, Image still, Image contrast, Select grid, Grid switch, Reset grid, Save grid, Selection line, Line switch, Line color, Line width
Measurement Features
(Measure: from top to bottom)
Coordinate point, Circle radius measurement, 2 point circle, 3 point setting circle, Cross line, Line, Center distance, Concentric circle, Broken line measurement, Angle measurement, Click line spacing, Rectangle, Curve measurement, Arc length measurement, Parallel lines, Polygon, Text annotation, Coordinate system, Complete measurement
(Delete and Save: from left to right)
Delete, Delete All, Screen Capture
4K Ultra HD has more resolution than HD 1080p
YSC Measurement 101 Software Options
4K206 4K High Magnification Digital Microscope Viewing Chart
(Mobile: swipe left for horizontal scrolling)
| Adapter: | 0.3x | 0.5x | 0.6x | 1x (standard) | 1.5x | 2x |
| Video Magnification on 24" Monitor: | 12x - 106x | 21x - 177x | 25x - 212x | 42x - 354x | 63x - 531x | 85x - 708x |
| Video Magnification on 28" Monitor: | 14x - 124x | 24x - 207x | 29x - 248x | 49x - 413x | 74x - 620x | 99x - 826x |
| Field of View (Diagonal): | 47.8 mm - 5.7 mm 1.88" - 0.226" | 28.7 mm - 3.4 mm 1.130" - 0.136" | 23.9 mm - 2.9 mm 0.942" - 0.113" | 14.4 mm - 1.7 mm 0.565" - 0.068" | 9.6 mm - 1.1 mm 0.377" - 0.045" | 7.2 mm - 0.9 mm 0.282" - 0.034" |
| Working Distance: | 270 mm (10.6") | 160 mm (6.3") | 130 mm (5.1") | 86 mm (3.4") | 50 mm (2.0") | 39 mm (1.5") |
| * Data are estimated by calculation. Optional rear couplers available (0.3x, 0.4x, 0.5x, 0.75x, 1.5x, 2x, 3x) for lowering or increasing magnification without changing working distance. Video magnification will be increased by the same factor. Field of view will be changed by inverse factor. Standard Optical Body Zoom Range: 0.6X~5X. Zoom Ratio: 1 : 8.3. Detent click stops at 0.6X, 0.8X, 1.0X, 1.5X, 2.0x, 2.5x, 3.0x, 3.5x, 4.0x, 4.5x, 5.0x lockable. Telecentric from 1x to 4x. FOV d : h : v ratio is about 18.35756 : 16 : 9 for estimation purpose. | ||||||
| Objective: | 1x (standard) | 5x | 10x | 20x | 50x | 100x |
| Video Magnification on 24" Monitor: | 42x - 354x | 212x - 1770x | 424x - 3540x | 849x - 7080x | 2124x - 17700x | 4248x - 35401x |
| Video Magnification on 28" Monitor: | 49x - 413x | 247x - 2065x | 495x - 4130x | 991x - 8260x | 2478x - 20650x | 4956x - 41301x |
| Field of View (Diagonal): | 14.4 mm - 1.7 mm 0.565" - 0.068" | 2.9 mm - 0.34 mm 0.113" - 0.014" | 1.4 mm - 0.172 mm 0.056" - 0.007" | 0.718 mm - 0.086 mm 0.028" - 0.003" | 0.287 mm - 0.034 mm 0.011" - 0.001" | 0.144 mm - 0.017 mm 0.006" - 0.0007" |
| Working Distance: | 86 mm (3.4") | 44.5 mm (1.8") 26.1 mm (1.0") | 34 mm (1.3") 20.2 mm (0.8") | 31 mm (1.2") 8.8 mm (0.3") | 20.1 mm (0.8") 3.7 mm (0.1") | 12.6 mm (0.5") 0.4 mm (0.02") |
| * Data are estimated by calculation. Optional rear couplers available (0.3x, 0.4x, 0.5x, 0.75x, 1.5x, 2x, 3x) for lowering or increasing magnification without changing working distance. Video magnification will be increased by the same factor. Field of view will be changed by inverse factor. Standard Optical Body Zoom Range: 0.6X~5X. Zoom Ratio: 1 : 8.3. Detent click stops at 0.6X, 0.8X, 1.0X, 1.5X, 2.0x, 2.5x, 3.0x, 3.5x, 4.0x, 4.5x, 5.0x lockable. Telecentric from 1x to 4x. FOV d : h : v ratio is about 18.35756 : 16 : 9 for estimation purpose. | ||||||
Below Viewing Chart is for System with 0.5x Rear Coupler
(Mobile: swipe left for horizontal scrolling)
| Adapter: | 0.3x | 0.5x | 0.6x | 1x (standard) | 1.5x | 2x |
| Video Magnification on 24" Monitor: | 6x - 53x | 10x - 89x | 12x - 106x | 21x - 177x | 31x - 266x | 42x - 354x |
| Video Magnification on 28" Monitor: | 7x - 62x | 12x - 103x | 14x - 124x | 24x - 207x | 37x - 310x | 49x - 413x |
| Field of View (Diagonal): | 95.7 mm - 11.5 mm 3.77" - 0.45" | 57.4 mm - 6.9 mm 2.26" - 0.27" | 47.8 mm - 5.7 mm 1.88" - 0.23" | 28.7 mm - 3.4 mm 1.13" - 0.14" | 19.1 mm - 2.3 mm 0.75" - 0.09" | 14.4 mm - 1.7 mm 0.56" - 0.07" |
| Working Distance: | 270 mm (10.6") | 160 mm (6.3") | 130 mm (5.1") | 86 mm (3.4") | 50 mm (2.0") | 39 mm (1.5") |
| * Data are estimated by calculation. Optional rear couplers available (0.3x, 0.4x, 0.5x, 0.75x, 1.5x, 2x, 3x) for lowering or increasing magnification without changing working distance. Video magnification will be increased by the same factor. Field of view will be changed by inverse factor. Standard Optical Body Zoom Range: 0.6X~5X. Zoom Ratio: 1 : 8.3. Detent click stops at 0.6X, 0.8X, 1.0X, 1.5X, 2.0x, 2.5x, 3.0x, 3.5x, 4.0x, 4.5x, 5.0x lockable. Telecentric from 1x to 4x. FOV d : h : v ratio is about 18.35756 : 16 : 9 for estimation purpose. | ||||||
