Starting at $3800+

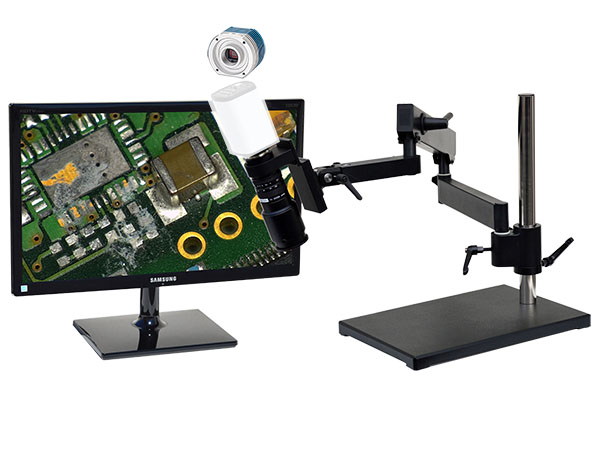

4K301 is a great 4K Ultra HD HDMI digital microscope for low magnification applications requiring high quality 4K imaging during live viewing inspections. The system, which features high definition digital camera technology, can be paired with a 24 or 28 inch Ultra HD to provide 4K Ultra HD resolution motion video with no lag time. The manual focus 4K digital microscope has a possible 4x-91x magnification range on 24″ UHD monitor or 5x-106x on 28″ UHD monitor. With a long working distance range of 4.5” to 12” for 0.26″ to 5.46″ diagonal field of view range, the 4K301 is ideal for assembly, inspection, training, and real-time viewing. The digital microscope has HDMI output for live viewing directly on a 4K monitor without computer connection, making it a great unit for applications that do not need image capture or measurement features.

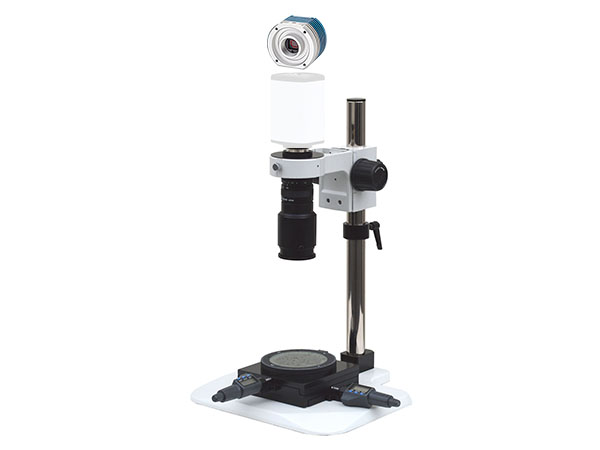

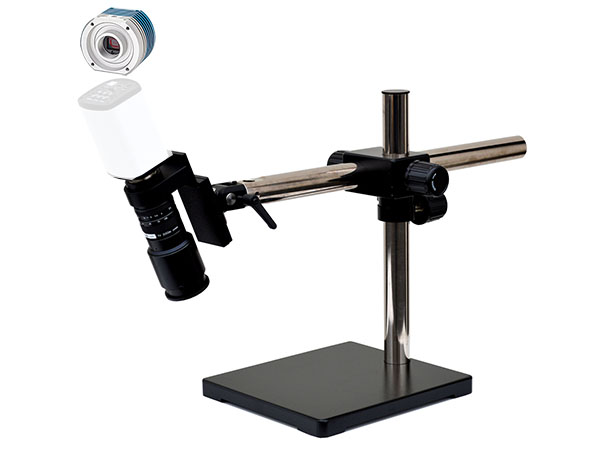

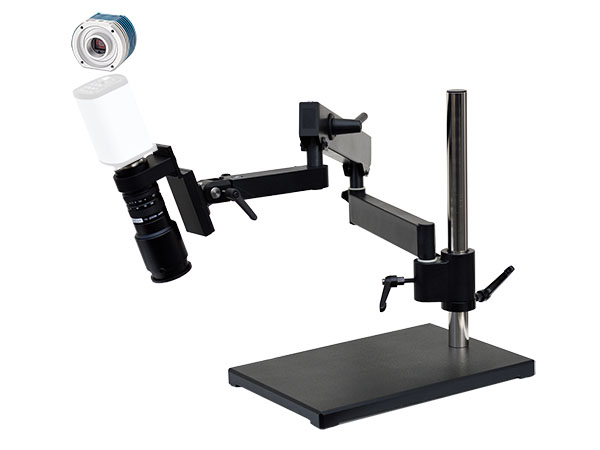

The 4K301 4K HDMI digital microscope can be configured with various stands, XY measurement stage, and lighting accessories. The system comes standard with adjustable high intensity LEDs to provide bright uniform lighting for great picture quality, and also includes a diffuser glass filter, which can be used to reduce glare from highly reflective parts. Other lighting options, such as polarizer lighting, dual gooseneck arm lighting, are also available. The laser light pointer is also an accessory available that is great for locating the inspection area. For applications that may require occasional measurements, XY measurement stages are a great addition to consider without committing to video measurement software.
4K301 4K Ultra HD HDMI Digital Microscope Benefits
- 4K Ultra HD digital microscope with HDMI output
- Excellent ergonomics to minimize eye fatigue and neck strain
- Great Depth of Field
- Long Working Distance range: 4.5″ to 12″
- Adjustable Viewing Angles (0 to 90 degrees)
- Real Time Full Motion 4K Ultra HD 60fps
- Large 4K UHD monitor available via HDMI connection for discussion or training purposes
- Wide zoom ratio with constant focus
- Full camera, lens and lighting adjustments
- Many stand options
- Adjustable high intensity LEDs with diffuser glass included
- Other options: laser pointer, fluorescent/halogen lighting, XY measurement stages, measurement software (available with other model equivalents)
4K301 Digital Microscope Applications
- Assembly
- Production
- Quality Control
- Failure Analysis
- Electronics
- Medical Device
- Machining
- Aerospace
- Natural Science
- Training
- Education
- Research and Development
- Forensics
- Pharmaceuticals
- Micro Electronics
- SMT
- Semiconductor
Click for PDF of different HD Digital Microscope models and options
Systems can also be configured with camera with Imaging/Measurement Software (HD801, 4K201),
HD 1080p Pure HDMI camera (HD701) or Auto Focus camera (HDAF201)
4K Ultra HD has more resolution than HD 1080p
4K301 4K Ultra HD HDMI Digital Microscope Viewing Chart
Working Distance | Field of View (Diagonal) | Video Mag. with 28" Monitor | Video Mag. with 24" Monitor | |||
4.5" | 40 mm | 7 mm | 18x | 106x | 15x | 91x |
| 1.59" | 0.26" | |||||
5" | 48 mm | 8 mm | 15x | 87x | 13x | 74x |
| 1.91" | 0.32" | |||||
6" | 63 mm | 11 mm | 11x | 65x | 10x | 56x |
| 2.49" | 0.43" | |||||
8" | 87 mm | 15 mm | 8x | 46x | 7x | 39x |
| 3.44" | 0.61" | |||||
10" | 114 mm | 20 mm | 6x | 35x | 5x | 30x |
| 4.50" | 0.79" | |||||
12" | 139 mm | 24 mm | 5x | 29x | 4x | 25x |
| 5.46" | 0.95" | |||||
| Specifications subject to changes and E&O without notice and liabilities. | ||||||
