Starting at $2655+
BGA-HD802 is a great HD 1080p angled viewing digital microscope configured with 3D angled viewer attachment to provide angled viewing. The attachment can be paired with a handheld mirror to achieve 90 degree side profile viewing needed for BGA inspection. When the 3D attachment is installed onto the system, BGA-HD802 will have magnification range of 23x-343x when paired with a 24” HD monitor, or 25x-166x on a 12” HD Retina display monitor.
The BGA-HD802 provides excellent image quality at 60 frames per second for inspection and real time viewing. The system can save 6 MP resolution images (3264×1836) and HD 1080p full motion video directly to SD card for documentation or further training and communication with colleagues. The digital microscope has HDMI output to connect directly to monitor and also includes integrated measurement software to allow full system functionality without connecting to the computer. Camera settings and measurements are interfaced directly with the microscope camera for easy control through a USB mouse. While the angled viewing digital microscope is suited for independent functionality, the system also has USB output for USB cable connection to computer to allow direct image capturing and measurement operations on the computer.
The manual focus system comes standard with 3 front adapters (0.5x, 1x, 2x) and 2 rear couplers (0.5x, 1x) to provide a wide high magnification range. When the 3D viewing attachment is not installed, the BGA-HD802 has possible magnification range of 9x to 442x on a 12” Retina display monitor, or possible magnification range of 18x to 914x on a 24” HD monitor, which is 1.35” to 0.026” diagonal field of view range. Other front adapters, rear couplers, and objective lenses options are also available to adjust the system specs according to specific application needs. With long working distance range up to 13” (with 0.3x front adapter), the microscope meets clearance requirements in as production, QC, QA, FA and R&D applications.

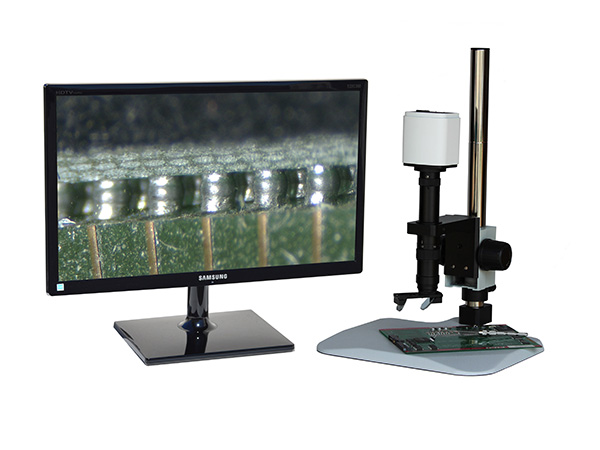

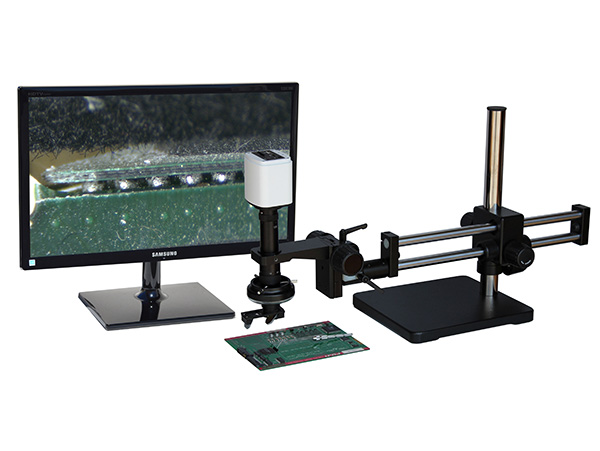

BGA-HD802 can be configured with different stand options, such as the basic stand, universal boom stand, back lighting stand, dual sliding arm stand, or articulating arm stand. Articulating arm stands can be customized to mount to side of bench top with clamp or hard mounted to tabletop surface. Depending on the stand chosen, viewing angles can be adjusted from top-down viewing to oblique side profile viewing. The system includes a high intensity LED ring light with adjustable dimmer glass to provide bright uniform lighting and also the option to reduce glare on reflective surfaces. Alternative lighting options available are internal coaxial lighting (brightfield lighting for wafer, die or cross section), polarizer lighting, dual arm fiber light guide, and fluorescent lighting. Other accessories include (but are not limited to) XY measurement stages and laser pointers. For specific customization needs, please contact us with your application details.
BGA-HD802 Angled Viewing Digital Microscope Benefits
- HD 1080p digital microscope with 3D angled viewing attachment
- Decreases eye and neck strain with ergonomic design
- Great Depth of Field
- Long Working Distance range: 1.8″ to 13″
- Adjustable Viewing Angles
(0 to 90 degrees) - Real Time Full Motion HD1080p 60fps
- Large HD monitor available for discussion or
training purposes - 6 MP image capture and HD 1080p motion video saved directly to SD card, no computer required
- Wide zoom ratio with constant focus
- Full camera, lens & lighting adjustments
- Various stand options
- Adjustable high intensity LEDs with
diffuser glass included - Accessories: laser pointer, fluorescent/halogen lighting, coaxial lighting, polarizer, XY measurement stage
- Measurement software included
Above shown with both L002-3D-BGA
and BGA-M1 Mirror
BGA-HD802 Digital Microscope Applications
- Assembly
- Production
- Quality Control
- Failure Analysis
- Electronics
- Documentation
- Medical Device
- Machining
- Aerospace
- Natural Science
- Training
- Education
- Research and Development
Consider the HD806 model for a new and improved system with angled viewing and high magnification capabilities similar to the BGA-HD802
BGA-HD802 Angled Viewing Digital Microscope with Intelligent Integrated Measurement Tools (no PC required)
Smart Measurement Tools Built Inside the Camera (allow up to 10 calibrations)
The BGA-HD802 offers sophisticated measurement functionality, including freehand lines, rectangles, polygons, circles, bicircles, angles, point-line distance and much more. Furthermore, the camera can measure the perimeter & area of enclosed features such as: rectangles, polygons, and circles. Measurements have unique calibration and magnification functions, and results can be exported into Excel or text formats to make measurements a simple and convenient process.
Camera settings and tools easily controlled by mouse
Camera settings and tools easily controlled by mouseMicro Level Measurement Accuracy
Measurements done on the angled viewing digital microscope have high resolution and accuracy, delivering outstanding metrology capabilities in the most demanding situations.
Measurement for Various Applications
BGA-HD802 allows measurement calibrations in mm, µm, inch and mil to accommodate for different measurement requirement to ensure objective and reliable data gathered supports quantitative analysis.
Digital Microscope Camera Control & Measurement Settings (click to enlarge)
BGA-HD802 Angled Viewing Digital Microscope Viewing Chart
(Mobile: swipe left for horizontal scrolling)
| Adapter: | 0.3x | 0.5x | 0.75x | 1x (standard) | 1.5x | 2x |
| Video Magnification on 11.6" Monitor: | 10x - 66x | 17x - 110x | 25x - 166x | 34x - 221x | 51x - 331x | 68x - 442x |
| Video Magnification on 24" Monitor: | 21x - 137x | 35x - 229x | 53x - 343x | 71x - 457x | 106x - 686x | 142x - 914x |
| Field of View (Diagonal): | 28.6 mm - 4.4 mm 1.12" - 0.175" | 17.1 mm - 2.7 mm 0.675" - 0.105" | 11.4 mm - 1.8 mm 0.450" - 0.070" | 8.6 mm - 1.3 mm 0.337" - 0.052" | 5.7 mm - 0.9 mm 0.337" - 0.052" | 4.3 mm - 0.7 mm 0.169" - 0.026" |
| Working Distance: | 331 mm (13.0") | 199 mm (7.8") | 131 mm (5.2") | 97 mm (3.8") | 61 mm (2.4") | 46 mm (1.8") |
| * Data are estimated by calculation. Optional rear couplers available (0.35x, 0.5x, 0.75x, 1.5x, 2x) for lowering or increasing magnification without changing working distance. Video magnification will be increased by the same factor. Field of view will be changed by inverse factor. | ||||||
| Objective: | 1x (standard) | 5x | 10x | 20x | 50x | 100x |
| Video Magnification on 11.6" Monitor: | 34x - 221x | 172x - 1105x | 344x - 2210x | 687x - 4420x | 1719x - 11049x | 3437x - 22098x |
| Video Magnification on 24" Monitor: | 71x - 457x | 356x - 2286x | 711x - 4572x | 1422x - 9144x | 3556x - 22860x | 7112x - 45720x |
| Field of View (Diagonal): | 8.6 mm - 1.3 mm 0.337" - 0.052" | 1.7 mm - 0.27 mm 0.067" - 0.010" | 0.857 - 0.133 mm 0.034" - 0.005" | 0.429 - 0.067 mm 0.017" - 0.003" | 0.171 - 0.027 mm 0.007" - 0.001" | 0.086 - 0.013 mm 0.003" - 0.001" |
| Working Distance: | 97 mm (3.8") | 44.5 mm (1.8") 11.7 mm (0.5") | 34 mm (1.3") 15.33 mm (0.6") | 31 mm (1.2") 11.02 mm (0.4") | 20.5 mm (0.8") 7.9 mm (0.3") | 12.5 mm (0.5") 1.75 mm (0.1") |
| * Data are estimated by calculation. Optional rear couplers available (0.35x, 0.5x, 0.75x, 1.5x, 2x) for lowering or increasing magnification without changing working distance. Video magnification will be increased by the same factor. Field of view will be changed by inverse factor. | ||||||
