Starting at $1500+
The HDAF600 auto focus wide view digital microscope is optimal for improving inspection process efficiency. The system has a minimum working distance of 4” and no upper limit for maximum working distance, which provides a wide range of possible field of view range and long working distances to meet industrial inspection requirements. At 12” working distance, the HDAF600 offers field of view range of 17” (431.8mm) to 1” (25mm). The wide angle, large area field of view microscope is perfect for inline PCB inspection on the conveyor, and for inspection and assembly of large medical devices.

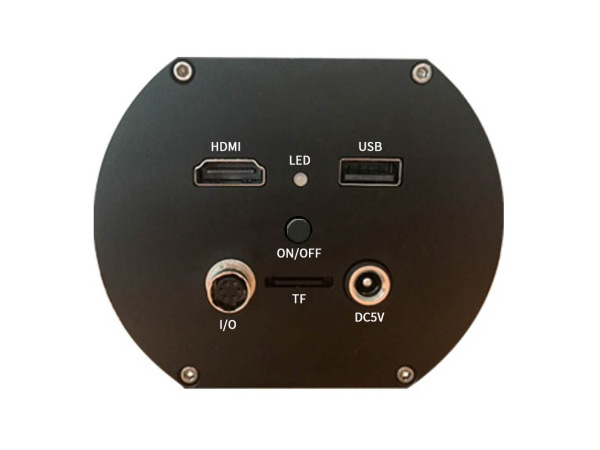

The auto focus wide view microscope includes motorized zoom function that is easily controlled by USB mouse, as well as the option to choose between auto focus, 1-click focus, and manual focus settings. These features enable the inspection process to be faster and more ergonomic by minimizing time operator is required to manually adjust settings for the best in-focus imaging. The HDAF600 has HDMI output to connect directly to 24” HD monitor to provide real-time high definition viewing at 60 frames per second at HD 1080p resolution. Images and videos can be saved directly to SD card for documentation without requiring computer connection.

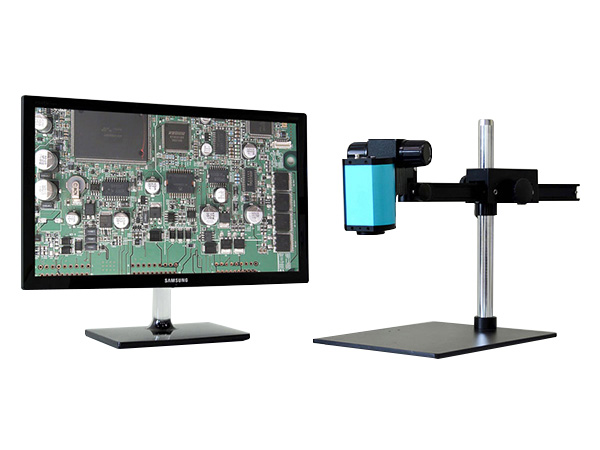

The HDAF600 can be configured with different stand options, such as basic stand, boom stand, dual sliding arm stand, and articulating arm stand. Other accessories, such as polarizer lighting, laser pointer, lighting options, and XY measurement stages are also available for further customization.
HDAF600 Auto Focus Wide View Microscope Benefits
- 2MP HD auto focus digital microscope camera with motorized zoom
- Designed ergonomically to minimize eye and neck fatigue
- Great Depth of Field
- Long Working Distance range: 4″ to infinity
- Real Time Full HD1080p 60fps motion video
- Large HD monitor available for discussion and training purposes
- HDMI output to monitor, and USB mouse for camera zoom control
- Save images and motion video directly to SD card, no computer needed
- Wide zoom ratio with constant focus
- Full camera, lens and lighting adjustments
- Different stand and lighting options available
HDAF600 Digital Microscope Applications
- Assembly
- Production
- Quality Control
- Failure Analysis
- Electronics
- Documentation
- Video Recording
- Medical Device
- Machining
- Aerospace
- Natural Science
- Training
- Education
- Research and Development
- Forensics
- Conveyor Inline Inspection
- Micro Electronics
- SMT
- Semiconductor
HDAF600 Auto Focus Wide View Digital Microscope Key Features
Auto Focus
- Fast focus response (choose between auto focus, 1-click focus, or manual focus)
- Working distance 4″ to infinity
- Motorized zoom with USB mouse control
Wide View Zoom Range
- 0x-22x (22x-132x digital)
- Inspect area from 25″ to 1″
- Saves time on large area inspection
- Motorized zoom with USB mouse control
Application Images
- Capture image and record video directly to SD card
- 1920x1080p full HD at 60 fps real-time viewing
HDAF600 Auto Focus Wide View Digital Microscope Viewing Chart
(Mobile: swipe left for horizontal scrolling)
| Working Distance | Max. Field of View | Min. Field of View | Magnification* |
| 18" | 25.5" | 2.5" | 0.8x - 8x |
| 12" | 17" | 1.75" | 1.2x - 12x |
| 10" | 14.5" | 1.625" | 1.4x - 13x |
| 8" | 12" | 1.375" | 1.7x - 15x |
| 4" | 6" | 0.9375" | 3x - 22x |
| *based on 24" HD monitor | |||
Technical Specifications
(Mobile: swipe left for horizontal scrolling)
| Technical Specifications | |
| Focus | Auto focus, 1-click focus, manual focus |
| Image Sensor | 2 Megapixel CMOS color sensor with HDR |
| Output | HDMI, 1080p at 60 fps |
| Scanning | Progressive |
| Shutter Speed | 1/60s to 1/10,000s |
| Camera Setting | White Balance, Exposure, Shutter Speed, Brightness, RGB color control |
| Camera Control | USB Mouse (included) |
| Cross Hairs | Up to 4 sets of cross hairs, moveable and color adjustable |
| Media Storage | microSD card (not included) |
| Power Supply | DC 5V |
| Zoom | 1x to 22x |
| Digital Magnification | 22 to 132x |
| Field of View | 16" to 1" |
| Working Distance | 10 cm (4") to infinity |
