HDAF201 Low Magnification Auto Focus Digital Microscope with Wi-Fi
(2x – 244x)

HDAF201LABm24

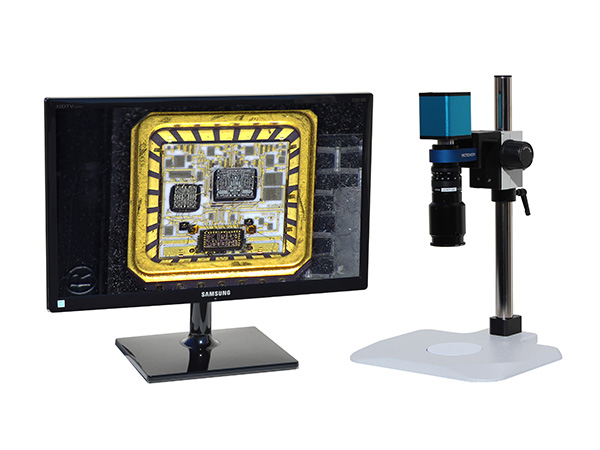

HDAF201LBSm24

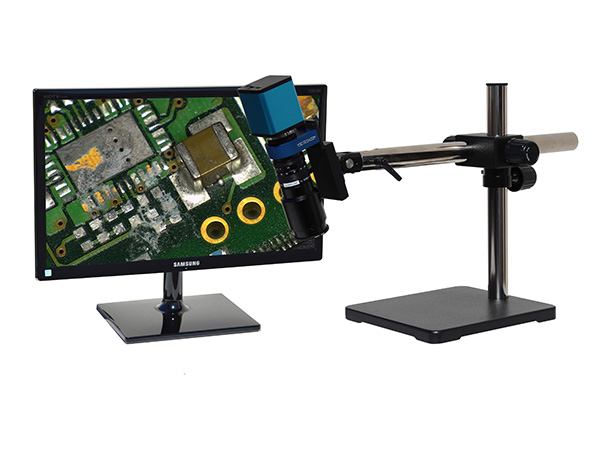

HDAF201USm24

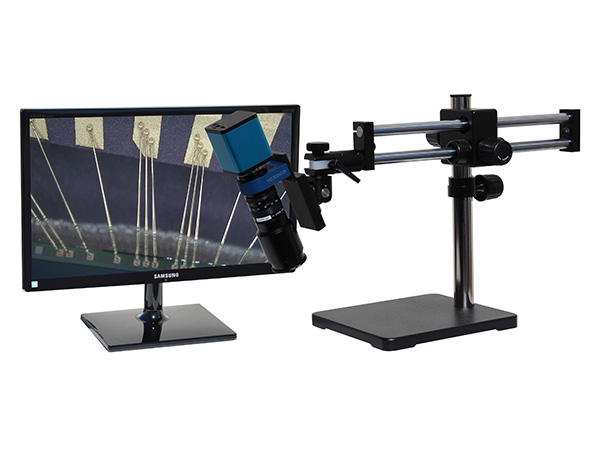

HDAF201DUm24

HDAF201LAB

HDAF201LBS

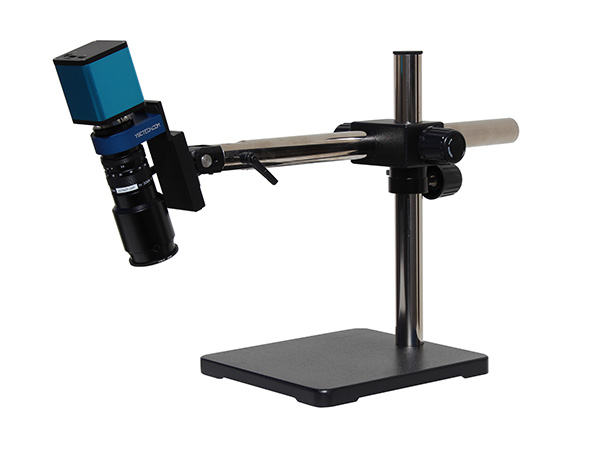

HDAF201LUS

HDAF201LDU



                       Starting at $2,000+

HDAF201 is the ultimate low magnification auto focus digital microscope with Wi-Fi features and up to 5.4” field of view at 12” long working distance. Built with state-of-the-art Sony high sensitivity CMOS sensor, the auto focus digital microscope camera provides Full HD 1080p resolution motion video with no lag. The HD digital microscope has magnification range of 4x-91x on a 24” HD monitor or 2x-59x on a 12” Retina HD monitor, and is suitable for assembly, inspection, training, real-time viewing, image capture and motion video documentation. For applications requiring up to 182x magnification, the optional 2x rear coupler can be installed onto the system without changing the working distances.

The auto focus digital microscope is designed to allow use as a completely independent unit not requiring a computer connection. A monitor can be connected directly to HDMI output for display, and 2 MP images (1920×1080) and HD 1080p videos can be saved directly to the SD card. The HDAF201 also features customized integrated measurement software, with measurements and camera settings easily controlled by computer mouse connected to USB port. If needed, Wi-Fi connection is available for direct connection to computer for video measurement application (USB Wi-Fi adapter included with HDAF201).

The HDAF201 auto focus digital microscope can be customized with various stand and accessories. The system includes adjustable high intensity LEDs to provide bright uniform lighting for great image quality, and even comes with a diffuser glass filter that can be used to reduce glare from highly reflective parts, if needed. Other lighting options, such as polarizer lighting and dual arm goose arm lighting are also available for configuration with the HDAF201. The optional laser light pointer accessory is a great option for visually locating the inspection area. XY measurement stages are also a great addition to the system to pair their manual XY measurement capabilities with the included video measurement software’s features.

  Wi-Fi Video Streaming

Systems can also be configured with Manual Focus camera

HDAF201 Low Magnification Auto Focus Microscope with Integrated Measurement Software (No PC needed or with Wi-Fi connection)

The HDAF201 auto focus digital microscope integrated measurement software user interface features the Camera Control Panel on the left side of the video window, the Measurement Toolbar on the top of the window, the Synthesis Camera Control Toolbar on the bottom and the Auto Focus Control Panel on right side of the video window.

Camera Control Panel pops up when user moves mouse cursor to the left side of the window; Synthesis Camera Control Toolbar pops up when mouse cursor is moved towards bottom of the window.

Measurement Toolbar pops up when mouse is moved towards top of window:

(from left to right):

Float/Fix position of Measurement Toolbar, Show/Hide measuring object, Measurement Unit, Magnification, Object Selection, Point, Angle, Arbitrary Line, Parallel, Horizontal Line, Vertical Line, Rectangle, Circle, Ellipse, Annulus, Two Circles and Center Distance, Arc, Polygon, Curve, Calibration, Conjugate Correction. Export as CSV file, Delete all Measurement Objects, Settings, Exit Current Measurement Mode

  YSC Measurement 101 Software Options (PC Side)

Image Stitching and Extended Depth of Focus

Image Stitching (left) and Extended Depth of Focus (right)

When the auto focus digital microscope camera is directly connected to computer via Wi-Fi connection, the PC-side measurement software features image stitching as well as extended depth of focus. Image stitching allows multiple images to be pieced together to form one combined image, which is useful for applications that require larger field of view while maintaining detailed image quality. Extended depth of focus allows multiple images to be stacked together so that imaging of an area with components on various planes will all be in complete focus, creating one superior image with an extended depth of field of this single area.

Auto Focus Digital Microscope Camera with Wi-Fi Specifications

• All in 1 (HDMI+WiFi) C-mount digital microscope camera with Sony high sensitivity CMOS sensor;
• Auto/Manual focus triggered with the movement of the sensor (HDMI);
• Built-in YSC-HDMI-Measurement software for HDMI application (in multiple languages). The camera features, as well as other basic processing and focus settings, can be controlled by YSC-HDMI-Measurement through the USB mouse.
• 1920 × 1080 (1080P) resolutions to match current high-definition monitor specifications on the market; Support plug and play application;
• For HDMI application, 2.0M resolution image(1920*1080 HDAF200) and 1080P video stream(asf format) can be captured and saved to SD card for future browsing, no computer needed;
• With the USB WiFi adapter, the HDAF200 can be used as WiFi wireless camera for connection to PC or mobile device, the YSC-Measurement (computer software)/ToupLite (mobile app) advanced image processing software is used to display the video and capture image, and supports plug and play application;
• Ultra-Fine Color Engine with perfect color reproduction capability (Wi-Fi connection);
• With advanced video & image processing, YSC-Measurement (computer software) includes professional image processing, such as 2D measurement, HDR, image stitching, EDF(Extended Depth of Focus), image segmentation & count, image stacking, color composite and denoising(USB);
• HDAF200 Wi-Fi auto focus digital microscope camera can meet various application requirements and can be widely used in industrial inspection, education and research, materials analysis, precision measurement, medical analyses etc.

HDAF201 Low Magnification Auto Focus Digital Microscope with Wi-Fi Viewing Chart

HDAF201h Viewing Chart (with rear 2x added)

Digital Microscope Image/Video Gallery (click to enlarge)

 Compact UV LED Ring Light (BLACK LIGHT) for conformal coating inspection (350 – 400 nm)

Optional Digital Microscope Accessories (click to enlarge)
