HDAF207 HD 1080p Auto Focus Wi-Fi Digital Microscope (2x – 200x)

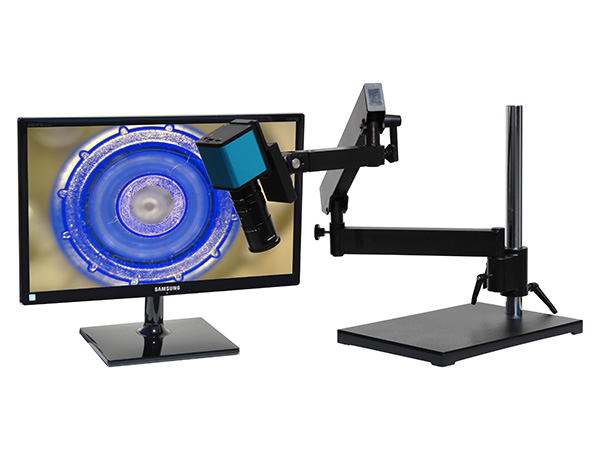

HDAF207LUSm24

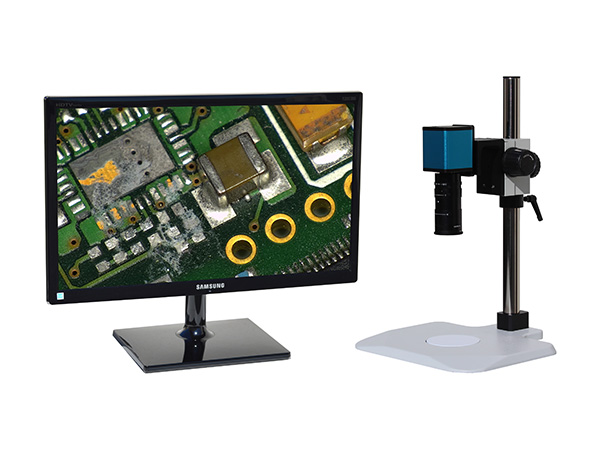

HDAF207LBSm24

HDAF207LABm24

HDAF207LDUm24

HDAF207LUS

HDAF207LBS

HDAF207LAB

HDAF207LDU



                          Starting at $1700+

HDAF207 is an outstanding auto focus digital microscope for low magnification applications requiring large field of view and long working distances. The system features leading auto focus digital camera technology to deliver Full HD 1080p resolution motion video with no lag time. The HD digital microscope has magnification range of 2x to 75x on a 24” HD monitor, and long working distance range of 5.3” to 16”. If needed, an optional 2x rear coupler can be used to increase magnification range up to 150x while maintaining working distances. HDAF207 meets assembly, inspection, training, real-time viewing, image and motion video documentation requirements for applications benefiting from the auto focus feature.

The auto focus microscope has HDMI output to connect to HD monitor and SD card for direct image and motion video capture, allowing the system to operate independently without computer connection. Still images can be saved in 1920×1080 (2MP) and motion HD video can be captured in 1080p. While the system has built in measurement software (no PC needed), Wi-Fi connection is available for direct connection to computer for video measurement application, if needed.

The HDAF207 can be paired with various stands, including basic stand, boom stand, dual sliding arm stand, and articulating arm stand. The system includes adjustable high intensity LEDs with diffuser glass filter to provide bright uniform lighting and also the option to reduce glare on highly reflective surfaces. Other lighting, such as polarizer lighting and dual gooseneck arm lighting are also available if included lighting is not sufficient. Other accessories, such as laser pointer and XY measurement stages, are also available assist in specific application needs.

  Wi-Fi Video Streaming

Systems can also be configured with Manual Focus camera

HDAF207 Auto Focus Microscope with Integrated Measurement Software (No PC needed or with Wi-Fi connection)

The software UI shown below includes the Camera Control Panel on the left side of the video window, the Measurement Toolbar on the upper side of the video window, the Synthesis Camera Control Toolbar on the bottom of the video window and the Auto Focus Control Panel on right side of the video window.

Camera Control Panel pops up when user moves mouse cursor to the left side of the window; Synthesis Camera Control Toolbar pops up when mouse cursor is moved towards bottom of the window.

Measurement Toolbar pops up when mouse is moved towards top of window:

(from left to right):

Float/Fix position of Measurement Toolbar, Show/Hide measuring object, Measurement Unit, Magnification, Object Selection, Point, Angle, Arbitrary Line, Parallel, Horizontal Line, Vertical Line, Rectangle, Circle, Ellipse, Annulus, Two Circles and Center Distance, Arc, Polygon, Curve, Calibration, Conjugate Correction. Export as CSV file, Delete all Measurement Objects, Settings, Exit Current Measurement Mode

  YSC Measurement 101 Software Options (PC Side)

Image Stitching and Extended Depth of Focus

Image Stitching (left) and Extended Depth of Focus (right)

When the auto focus camera is directly connected to computer via WiFi connection, the PC-side measurement software features image stitching as well as extended depth of focus. Image stitching allows multiple images to be pieced together to form one combined image, which is useful for applications that require larger field of view while maintaining detailed image quality. Extended depth of focus allows multiple images to be stacked together so that imaging of an area with components on various planes will all be in complete focus, creating one superior image with an extended depth of field of this single area.

Auto Focus Digital Microscope Camera Specifications

• All in 1( HDMI+WiFi) C-mount camera with Sony high sensitivity CMOS sensor;
• Auto/Manual focus with the movement of the sensor;
• Built-in multiple-language YSC-HDMI-Measurement software for HDMI application. The camera characteristics, as well as other basic processing and settings can be controlled by YSC-HDMI-Measurement through the USB mouse;
• 1920 × 1080 (1080P) resolutions to match the current high-definition monitor specifications on the market;
• For HDMI application, 2.0M resolution image(1920*1080 HDAF200) can be captured and saved for browsing; For video, 1080P video stream(asf format) can be captured and saved;
• With the USB WiFi adapter, the HDAF200 can be used as WiFi wireless camera, the YSC-Measurement (computer software)/ToupLite (mobile app) advanced image processing software is used to display the video and capture image and supports plug and play application;
• Ultra-Fine Color Engine with perfect color reproduction capability (WiFi);
• With advanced video & image processing application YSC-Measurement includes professional image processing such as 2D measurement, HDR, image stitching, EDF(Extended Depth of Focus), image segmentation & count, image stacking, color composite and denoising(USB);
• HDAF200 can meet various application requirements and can be widely used in industrial inspection, education and research, materials analysis, precision measurement, medical analyses etc.

HDAF207 Auto Focus Digital Microscope with Wi-Fi Viewing Chart

HDAF207h Viewing Chart (with rear 2x added)

Digital Microscope Image/Video Gallery (click to enlarge)

 Compact UV LED Ring Light (BLACK LIGHT) for conformal coating inspection (350 – 400 nm)

Optional Digital Microscope Accessories (click to enlarge)
