Starting at $4,995+
The HDAF900 auto focus standalone microscope is ideal for applications requiring cutting edge live inspection image quality. Featured state-of-the-art Sony EXMOR sensor, the system offers high definition 1080p quality inspection with incredible HD Image quality and magnification along with high quality color reproduction, contrast, and resolution. HDAF900, as a standard, has HDMI output to connect directly to HD monitor, and includes a remote control with 2 meter cable (~6.5 feet) for camera control. HDAF900 is standard fitted with the 5+ lens, which has large field of view range of 9.1 inches to 0.3 inches (231mm to 8mm) at 7.9 inches (200 mm) working distance. The auto focus features on the unit, along with its large field of view range and long working distance makes it excellent and efficient for mass-production quick inspections without losing image quality.

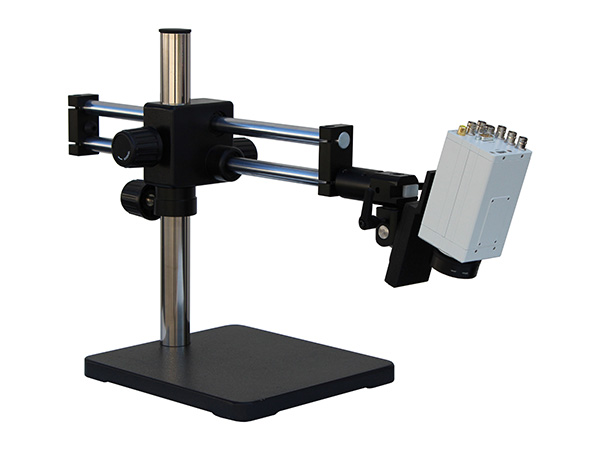

Depending on application needs, the HDAF900 camera can be configured with different back panels to include other output options, such as USB 3.0, HD-SDI, etc. The auto focus standalone microscope can also be fitted with other lens options to achieve a larger field of view and working distance range, with possible field of view of 0.2” (or 0.1” digitally) to 23.4” (595 mm) and maximum working distance up to 19.7” (500mm). Like our other systems, the HDAF900 can be customized with different stand options, including basic stand, universal boom stand, dual sliding arm stand and articulating arm stand. Other accessories, such as laser pointer, XY measurement stages, and various lighting options (like polarizer lighting) are also available. The system features USB Drive to save image. No computer needed.
HDAF900 Auto Focus Standalone Microscope Key Features
- High definition image quality and excellent resolution 1080p
- Exceptional color rendition and contrast color control
- 2x to 237x possible magnification range with optional lens
- Large field of view range (with optional lens): 0.2” to 23.4” (or down to 0.1” digitally)
- Long working distance range (with optional lens): 3.3” to 19.7”
- Real time viewing on monitor for quality assurance
- High accuracy and detailed inspection
- Ergonomic design to improve operator experience and improve
production efficiencies - Optional video recorder available.
HDAF900 Auto Focus Digital Microscope Applications
- Production
- Laboratory
- Micro-assembly
- Electronics
- Micro-mechanics
- Automotive
- Dental Technology
- Medical Device
- Forensics
- Quality Control
- Presentation and Training
HDAF900 Auto Focus Standalone Digital Microscope Lens Data
(Mobile: swipe left for horizontal scrolling)
| Lens | Maximum Height | Minimum Height | Magnification* Optical (Digital) | Horizontal Field of View Optical (Digital) |
| 2+ | 500 mm | 405 mm | 1.1x - 29x (57x) | 595mm - 20mm (10mm) |
| 19.7 inches | 15.9 inches | 23.4" - 0.8" (0.4") | ||
| 3+ | 333 mm | 280 mm | 1.3x - 36x (71x) | 400mm - 14mm (7mm) |
| 13.1 inches | 11 inches | 15.7" - 0.6" (0.3") | ||
| 4+ | 250 mm | 205 mm | 2x - 50x (98x) | 280mm - 10mm (5mm) |
| 9.8 inches | 8.1 inches | 11" - 0.4" (0.2") | ||
| 5+ | 200 mm | 170 mm | 2.5x - 62x (122x) | 231mm - 8mm (4mm) |
| 7.9 inches | 6.7 inches | 9.1" - 0.3" (0.2") | ||
| 10+ | 100 mm | 85 mm | 4x - 121x (237x) | 60mm - 5 mm (2mm) |
| 3.9 inches | 3.3 inches | 2.4" - 0.2" (0.1") | ||
| *Video magnification obtained using a 24" HD monitor (use 9/16 multiplier for vertical field of view calculation) | ||||
Standard Output

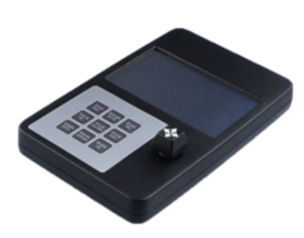

Remote Control (2 meter cable)
