Starting at $1499+
The HD-A03001 is an HD 1080p economy all-in-one digital microscope with integrated 12” HD monitor that provides high quality imaging and also has ability for ergonomically tilting angle adjustments to ensure operator’s comfort without neck or eye strain. The manual focus digital microscope has magnification range of 12x to 78x on the 12” monitor at 3.8” working distance (diagonal field of view range of 0.11″ to 0.91″). It is also capable of possible magnification range of 9x to 117x with optional 0.75x and 2x objective lenses. The imaging can be displayed onto other monitor screens simultaneously with an HDMI output splitter, which can be beneficial in educational settings. The system would achieve up to 234x magnification (with optional objective lenses) on a 24” HD monitor. The microscope is equipped with a track stand to enable smooth vertical height adjustments, and built-in LED lighting with adjustable intensity for uniform lighting.
The HD-A03001 all-in-one digital microscope is designed to function completely as an independent inspection unit. It has HDMI output and can save images and videos directly to USB drive. Still images are saved in 2 MP resolution (1920×1080) and motion HD videos saved in 1080p resolution. The microscope also has built-in measurement tools that provide 14 different measurement functions, including point to point line measurement, angle measurement, circular and perimeter measurements and more. All measurement and camera functionalities can be controlled with USB mouse. Measurements can be saved directly onto the images or exported to in excel format onto the USB drive. The system itself cannot be connected to a computer.
The HD-A03001’s live inspection viewing, camera/video capture and measurement capabilities makes it a valuable asset in applications, such as mobile phone repair, jewelry welding and precision welding. Its straightforward, simplistic operation also makes it useful in the following fields: industrial, electronics, life sciences, minerology, inspect farm, botany, forensics, and education.
HD-A03001 Economy All-in-One Digital Microscope Benefits
- HD 1080p digital microscope with integrated 12” monitor and track stand
- Ergonomic angle adjustments for monitor to minimize neck and eye fatigue
- Great Depth of Field
- 0.75x and 1.5x objective lens options available to adjust overall magnification range
- Long Working Distance (on standard 1x): 3.8″ (96mm)
- Adjustable Viewing Angles (0 to 90 degrees)
- Real Time Full Motion HD1080p 60fps
- Built-in 12″ HD monitor saves on benchtop footprint
- Large 24″ HD monitor connection option available for discussion or training purposes
- Image capture (2MP) and motion video (HD 1080p) can be saved directly to USB drive, no computer needed
- Wide zoom ratio with constant focus
- Full camera, lens and lighting adjustments
- Built-in adjustable high intensity LEDs
- Other supplemental accessories: laser pointer, XY measurement stage, fluorescent/halogen lighting
- Measurement software included
HD-A03001 Digital Microscope Applications
- Mineralogy
- Insect Barns
- Botany
- Assembly
- Production
- Quality Control
- Failure Analysis
- Electronics
- Documentation
- Medical Device
- Machining
- Aerospace
- Natural Science
- Training
- Education
- Research and Development
- Forensics
- Pharmaceuticals
- Micro Electronics
- SMT
- Semiconductor
HD-A03001 includes: digital microscope, camera, LED ring light, 12″ HD LCD monitor, track stand, built-in measurement tools and software
HD-A03001 Economy All-in-One Digital Microscope Key Features
- Simple power button on side of stand with blue LED indication
- Uniform LED illumination with adjustable light intensity
- Ergonomically placed controls for quick focus adjustment and zoom magnification
- USB connection for mouse operation and saves to USB drive
- Built-in 12 inch HD LCD monitor

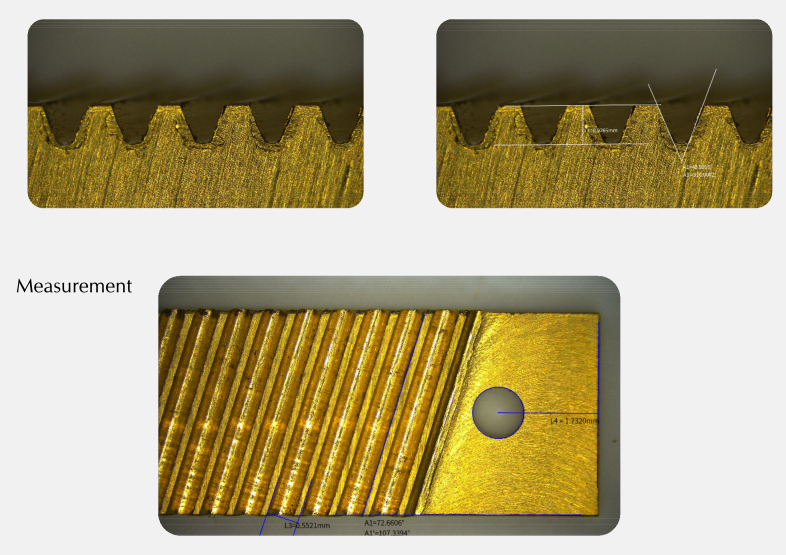

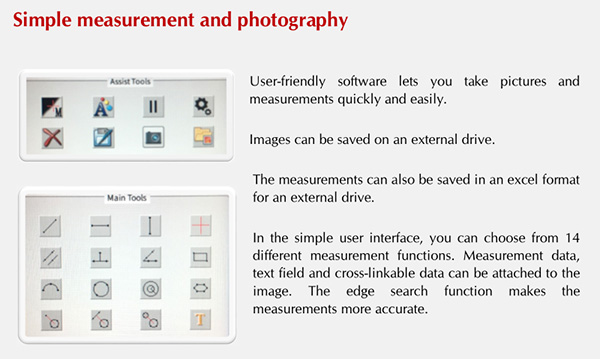

Built-in Measurement Software
- Images and measurements saved directly to USB drive – no PC needed
- Measurement annotations can be saved onto images
- Measurement data can also be saved in excel format onto USB drive to transfer data onto PC for further data analysis
Digital Microscope Camera Specifications
| HD-A03001 Camera Specifications | |
| Image Spec | 1920x1080 x 24bit |
| Resolution | 60 fps @ 1920x1080 |
| Optical Size | 1/2" |
| Pixel Size | 3.75x3.75um |
| Color Adjust | RBG adjust individually |
| White Balance | One Button/Manual |
| Displayer Size | 11.6" diagonal; 280x180x16mm |
| Exposure | Auto or Manual |
| Contrast | Manual |
| Shoot Mode | Manual/Line Control |
| Storage Mode | U Disk/USB Drive |
| Crosshairs | Superpose or cancel |
| Lens Mount | C-Mount |
| Working Voltage | 5V-12V |
| Camera Size | 280x180x67mm |
| Displayer Resolution | 1920x1080p |
| Weight | 450g |
| Working Temperature | 0-70 degrees C |

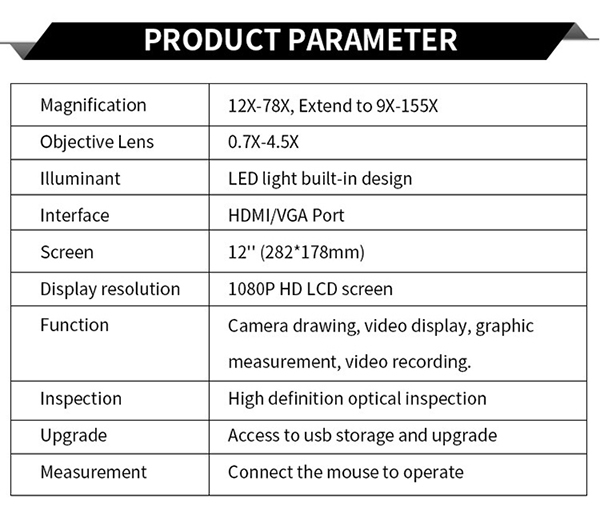

Economy All-in-One Digital Microscope Technical Specifications
HD-A03001 Economy All-in-One Digital Microscope Viewing Chart
(Mobile: swipe left for horizontal scrolling)
| Adapter: | 1x (Standard) | 0.75x (Optional) | 1.5x (Optional) |
| Video Magnification on 12" Monitor: | 12x - 78x | 9x - 59x | 18x - 117x |
| Video Magnification on 24" Monitor: | 24x - 156x | 18x - 118x | 36x - 234x |
| Field of View (Diagonal): | 23 mm - 3 mm 0.91" - 0.11" | 30.7 mm - 4 mm 1.2" - 0.15" | 15.3 mm - 2.0 mm 0.6" - 0.08" |
| Working Distance: | 96 mm (3.8") | 131 mm (5.2") | 63 mm (2.5") |
| * Data are estimated by calculation. Optional rear coupler available (0.75x and 1.5x) for increasing magnification without changing working distance. Video magnification will be increased by the same factor. Field of view will be changed by inverse factor. | |||
