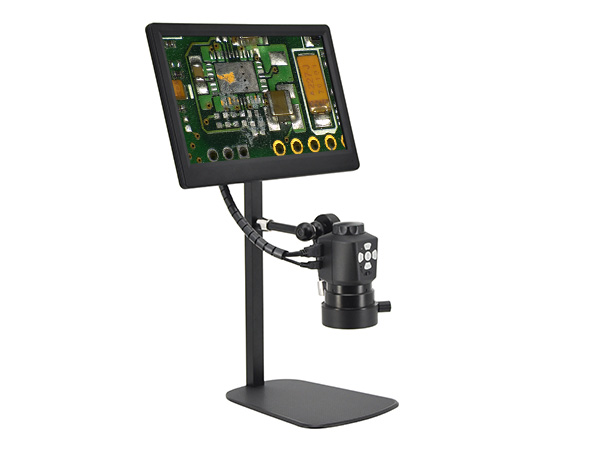

HD-A23001 All-in-One HD 1080p Economy Digital USB Microscope with 12.5″ HD Monitor side view

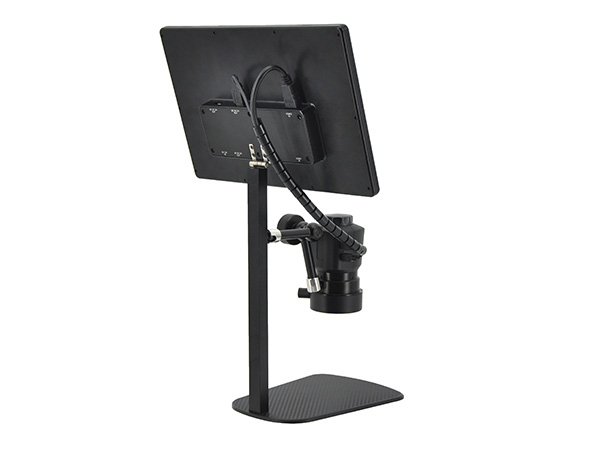

HD-A23001 All-in-One HD 1080p Economy Digital USB Microscope with 12.5″ HD Monitor back
HD-A23001 All-in-One HD 1080p Economy Digital USB Microscope with 12.5″ HD Monitor

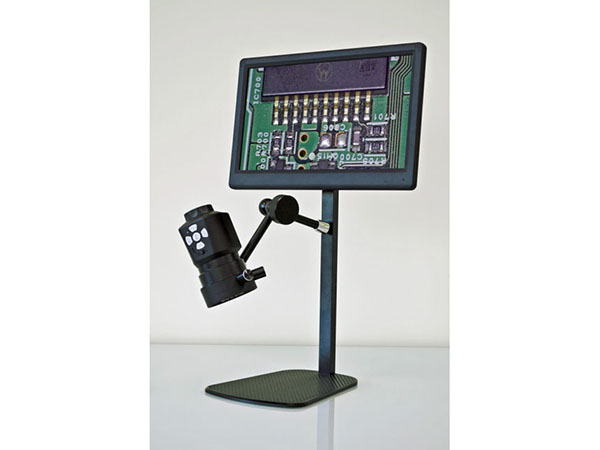

HD-A23001 All-in-One HD 1080p Economy Digital USB Microscope with 12.5″ HD Monitor and horizontal magic arm
HD-A23001 All-in-One HD 1080p Economy Digital USB Microscope with 12.5″ HD Monitor angled measurements
HD-A23001 All-in-One HD 1080p Economy Digital USB Microscope with 12.5″ HD Monitor measurements
HD-A23001 with Magic Arm
HD-A23001 side view
HD-A23001 back view
HD-A23001 features
HD-A23001 with magic arm for angled viewing
HD-A23001 measurement software for PC
HD-A23001 measurement calibrations in inch
previous arrowprevious arrow
next arrownext arrow

HD-A23001 with Magic Arm
HD-A23001 side view
HD-A23001 back view
HD-A23001 features
HD-A23001 with magic arm for angled viewing
HD-A23001 measurement software for PC
HD-A23001 measurement calibrations in inch
previous arrow
next arrow

Full HD 1080p digital microscope   Measurement Software   USB output SD storage HDMI output                                               Starting at $695+

The HD-A23001 is a compact all-in-one economy digital USB microscope with 12.5″ HD LCD for ergonomic viewing and USB output to computer for measurement. The manual focus system has magnification range of 5x to 55x, which is changed by adjusting working distance between scope and target. HD-A23001 has long working distance range of 1.25 inches to 12.5 inches (31.75mm to 317.50mm), which provides ample clearance for assembly and quality control inspections while providing sufficient field of view range (0.2″ to 2.44″). Because the economy digital USB microscope has a built in 12.5” monitor with tiltable positioning, it saves on benchtop footprint for the monitor and also maintains healthy ergonomics for the operator to minimize eye and neck strain.

The HD-A23001’s manual focus knob can be found on top of the camera for image adjustments to produce the sharpest image during inspections, and camera buttons control camera setting adjustments. 3.5 MP images (jpg format) and 1920x1080p full HD 1080p videos (MOV format) can be saved directly to SD card without computer connection. The camera is mounted onto free-moving “magic” arms with flexible joints to allow all possible inspection positions and viewing angles needed for PCB, medical devices, research, hobby, and QC inspection. The system is also equipped with external coaxial lighting, which includes both coaxial lighting and diffuse lighting beads that can be controlled independently for custom lighting adjustments in accordance to observation needs. Although HD-A23001 has integrated image and video capture software, PC connection through USB output is required for access to measurement software.

HD-A23001 All-in-One Economy Digital USB Microscope Benefits

  • 3.5 MP HD digital microscope camera
  • Amazing ergonomic design to allow operator to view from different angles without straining eyes and neck
  • Great Depth of Field
  • Long Working Distance range: 1.25″ to 12.75″
  • 360 degree adjustable viewing angles with magic arm
  • Real Time Full Motion HD1080p 60fps
  • 12.5″ HD LCD monitor for direct line of sight and real time viewing with no lag
  • HDMI output to LCD, and USB 2.0 output to computer
  • Save images (3.5MP) and motion video (1920x1080p) directly to SD card, no computer required
  • Wide zoom ratio with constant focus
  • Full camera, lens and lighting adjustments
  • Two concentric layers of LED ring light are independently controlled
  • Stand with magic arm and base
  • Measurement software included for Windows 10/8/7 computer (USB output connection required)
  • Different stand and lighting options also available

HD-A23001 Digital Microscope Applications

  • Assembly
  • Production
  • Quality Control
  • Failure Analysis
  • Electronics
  • Documentation
  • Video Recording
  • Medical Device
  • Machining
  • Aerospace
  • Natural Science
  • Training
  • Education
  • Research and Development
  • Forensics
  • Pharmaceuticals
  • Micro Electronics
  • SMT
  • Semiconductor
HD-A23001 includes: digital microscope, camera, LED light, 12.5″ HD LCD screen, stand with magic arm, measurement software (PC needed)

HD-A23001 Economy All-in-One Digital USB Microscope Key Features

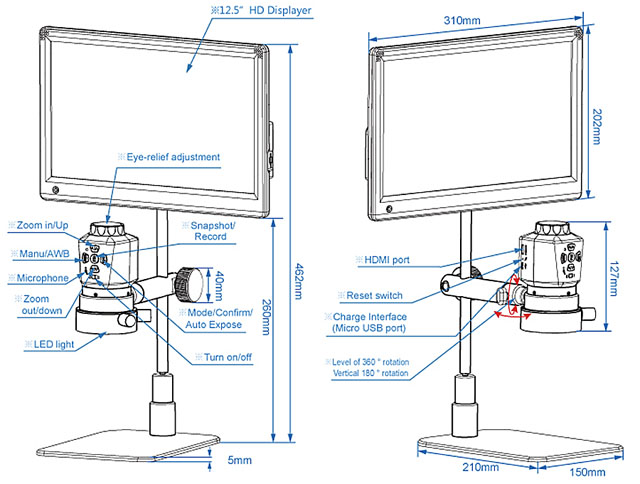

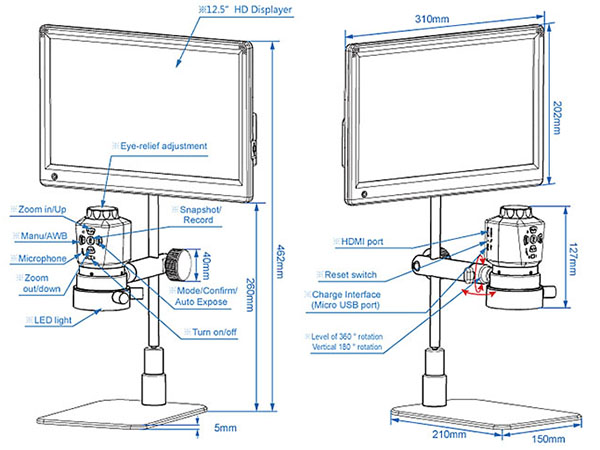

HD-A23001 All-in-One HD 1080p Economy Digital USB Microscope with 12.5″ HD Monitor features

3.5 MP Economy Digital USB Microscope

  • Capture images and record videos to microSD card
  • HDMI direct output to 12.5″ HD LCD screen
  • USB output to computer

Magnification 5x to 55x

  • Magnification controlled by variable working distance
  • Unique camera focused for extended working distance and magnification range

Unique Dual Layer LED Ring Lights

HD-A23001 has built-in external coaxial lighting that consists of both coaxial and diffuse light beads to provide uniform illumination of surface while reducing reflection of shiny surface. It enhances features of markings, recessing and embossing to highlight uneven surface of object and overcomes reflection interference to improve microscope inspection repeatability.

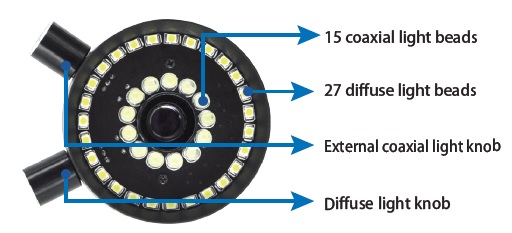

HD-A23001 All-in-One HD 1080p Economy Digital USB Microscope LED ring light

  • Reduce glare under diffused light
  • More conducive to the observation of smooth, highly reflective, and/or hard-to-reach area under external coaxial light
  • Both LED ring lights independently controlled; brightness can be freely combined and adjusted according to actual observation situation
  • Powered by the monitor safe and reliable, and reduces floor line to save space on working table

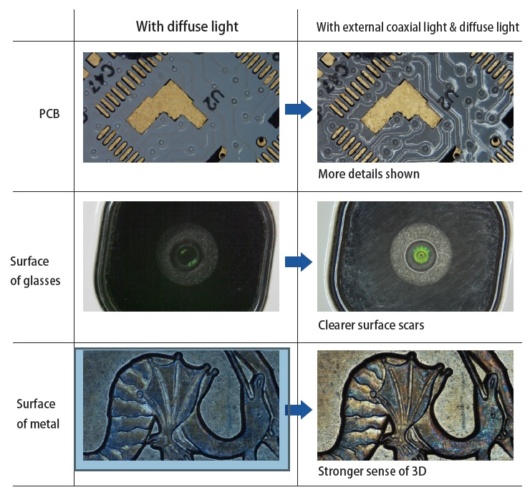

HD-A23001 All-in-One HD 1080p Economy Digital USB Microscope with diffused and coaxial lighting chart

12.5″ HD LCD with multiple HDMI inputs

  • Monitor directly mounted on stand for direct line-of-sight viewing, eliminating neck and eye stress
  • All-in-one design with camera scope for perfect budget-friendly and inclusive solution

New Magic Arm

  • Easy to adjust focal length with only one knob on top of camera
  • For any angle viewing (360 degree rotatability): top, down, sideway, or upside down viewing
HD-A23001 All-in-One HD 1080p Economy Digital USB Microscope with 12.5″ HD Monitor and magic arm bent
HD-A23001 All-in-One HD 1080p Economy Digital USB Microscope with 12.5″ HD Monitor and magic arm extended
HD-A23001 All-in-One HD 1080p Economy Digital USB Microscope with 12.5″ HD Monitor and magic arm lowered extended
HD-A23001 All-in-One HD 1080p Economy Digital USB Microscope with 12.5″ HD Monitor and magic arm lowered bent
Magic Arm

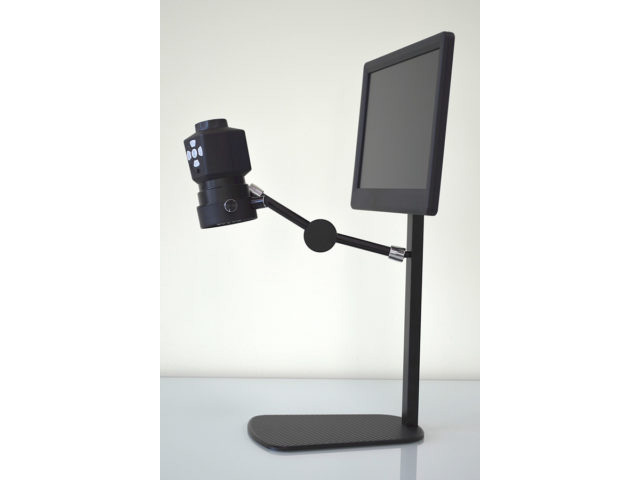

Magic Arm extended
Magic Arm extended lowered
Magic Arm lowered
previous arrowprevious arrow
next arrownext arrow

Compact and Lightweight Design

  • Easily transportable to any locations
  • Camera can be positioned at ANY angle (i.e. tilting any angles, upside down, or horizontally)

Measurement Software for Computer

  • Measurement software for computer (Win 7/8/10) included, requires USB output connection

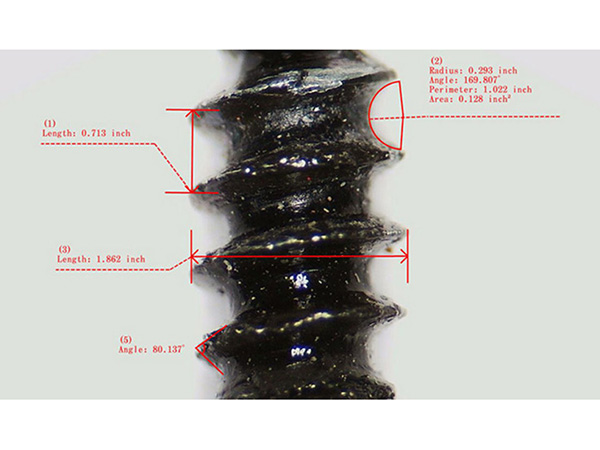

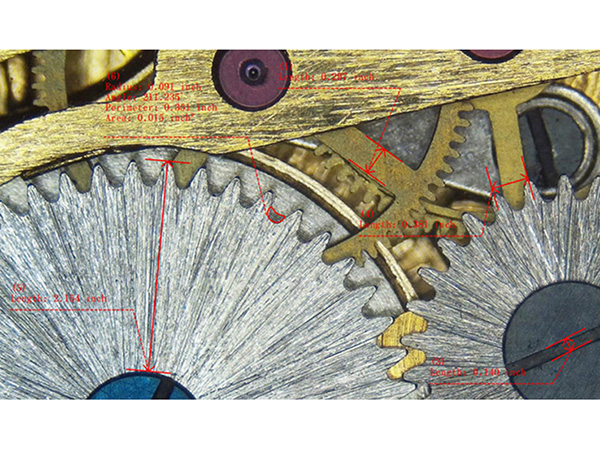

  • Can measure length, radius, angle, area, path length, and create cross hair

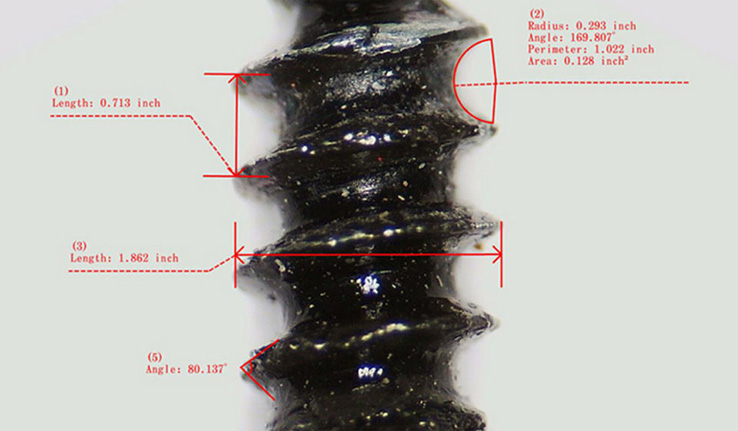

HD-A23001 All-in-One HD 1080p Economy Digital USB Microscope with 12.5″ HD Monitor angled measurement for PCHD-A23001 All-in-One HD 1080p Economy Digital USB Microscope with 12.5″ HD Monitor measurement software for PC

HD-A23001 Economy All-in-One Digital USB Microscope Viewing Chart

(Mobile: swipe left for horizontal scrolling)

Working DistanceField of ViewMagnification*
inchmminchmm
1.25
31.75
0.20
5.0
55x
2
50.80
0.35
9.0
30x
3
76.20
0.55
14.0
20x
4
101.60
0.75
19.0
14x
5
127.00
0.93
23.5
12x
6
152.40
1.14
29.0
9x
7
177.80
1.34
34.0
8x
8
203.20
1.54
39.0
7x
9
228.60
1.73
44.0
6.25x
10
254.00
1.91
48.5
5.6x
11
279.40
2.09
53.0
5x
12
304.80
2.30
58.5
4.7x
12.5
317.50
2.44
62.0
4.4x
*Based on 12.5″ LCD, 10.83″ (275mm) width

Economy Digital USB Microscope Technical Specifications

(Mobile: swipe left for horizontal scrolling)

Technical Specifications
Image SensorAptina 1/3″ CMOS Sensor, 2304 x 1536 (3,538,944 pixels)
Pixel Size2.2 micron x 2.2 micron
Expose ModeRolling Shutter
Dynamic Range69.5 dB
Signal Noise Ratio39 dB
Spectral Range380-650 nm
ExposureReal-time auto, single auto, manual adjustment
White BalanceReal-time auto, single auto, manual adjustment for RBG separately
Display ResolutionHDMI: 1920×1080 @60FPS, 1920×1080 @30FPS, 1280×720 @60FPS, 640×480 @60FPS

USB: 1920×1080 @30FPS, 1280×720 @30FPS
Image CaptureJPG Format

HDMI: 2304×1536, 2304×1296, 1920×1080, 1280×720, 800×480

USB: 1920×1080, 1280×720, 800×480
Video RecordMOV Format

HDMI: 1280×720 @30 FPS, 800×480 @30FPS

USB: 1920×1080 @30 FPS, 1280×720 @30 FPS, 800×480 @30FPS
Capturing MethodHDMI: microSD card (Maximum support 64GB) **microSD Card NOT included**

USB: connection to computer
Magnification5x to 55x on built-in 12.5″ LCD (digital magnification up to 220x)

10x to 110x on desktop 24″ monitor
Working Distance32 mm to 325 mm
Field of View (mm)5x2.8 to 27x15.1
Depth of Field (mm)0.8 to 3
IlluminationLED Ring Lights and Near-Coaxial LED Ring Lights, both independently controlled
Power SupplyCamera: AC100-240V/50-60Hz Input. 12V/5A/60W Output

Display: DC5V/2Ax4 USB-A Output
Operating Temperature0 to 40 C
Storage Temperature-20 to 60 C
Operating Humidity30 to 60% RH
Storage Humidity10 to 80% RH

Digital Microscope Image/Video Gallery (click to enlarge)

Compact UV LED ring light for conformal coating inspection Compact UV LED Ring Light (BLACK LIGHT) for conformal coating inspection (350 – 400 nm)

Optional Digital Microscope Accessories (click to enlarge)

*Below measurement software are available for HD807, HD801, HD802, HD8TR, HD80W, HD803, HD809, and HD808*

Video Measurement Software for Digital Microscope

Image Stitching & Extended Depth of Focus Software
