Starting at $1000+
HD2010 is a great ergonomic digital microscope with sophisticated high definition digital camera technology to deliver Full HD 1080p resolution motion video with no lag time. The HD manual focus digital microscope offers magnification of 12x-310x on the integrated 12″ HD monitor, and 24x-640x on optional 24″ HD monitor, with long working distance of 3.9″ and standard field of view range of 0.15″ to 0.97″. This is ideal for assembly, inspection, training, real-time viewing, image capture and motion video documentation. Optional rear couplers are also available to increase the magnification without changing working distance.
The digital microscope has HDMI output and SD card for direct image and motion video captures, allowing system to be used as a completely standalone unit and without computer connection. Still images can be saved in 1920×1080 (2 mega-pixels) and motion HD video can be captured in 1080p. USB output is available for direct connection to computer for video measurement application. WiFi option is also available for wirelessly connecting camera to your Android or iOS mobile device with the iSmartDV app.
One of the great features of HD2010 is that it allows the 12″ monitor to be mounted to the side, which saves on benchtop footprint and is also very ergonomic for the user and minimizes neck stress.
The HD2010 ergonomic digital microscope can be configured with various stands, XY measurement stage, and lighting accessories. Adjustable high intensity LEDs provide bright uniform lighting for great picture quality. Polarizer lighting and dual arm goose arm lighting options are also available for this HD2010. The optional laser light pointer is great for locating the inspection area. Measurement software and XY measurement stages are also available with the HD2010.
HD2010 Ergonomic Digital Microscope Benefits
- High Definition 1080p ergonomic digital microscope
- Integrated 12.5″ monitor mounted to side for healthy ergonomics to reduce eye fatigue and neck stress
- Great Depth of Field
- Long Working Distance: 3.9″
- Adjustable Viewing Angles (0 to 90 degrees)
- Real Time Full Motion HD1080p 60fps
- Large 24″ HD monitor option for discussion or training purposes
- Side-mounted 12″ HD monitor option to minimize neck stress and benchtop footprint
- Save images with 2 megapixel resolution direct to SD card
- HD 1080p motion video can be recorded direct to SD card
- No computer needed for SD card
- Optional WiFi feature available for connecting to Android or iOS devices
- Wide zoom ratio with constant focus
- Full camera, lens and lighting adjustments
- XY measurement stage options available
- Many stand options
- Adjustable high intensity LEDs with diffuser glass
- Laser Pointer Option
- Fluorescent or halogen lighting options
- Measurement software and stage option
HD2010 Digital Microscope Applications
- Assembly
- Production
- Quality Control
- Failure Analysis
- Electronics
- Documentation
- Video Recording
- Medical Device
- Machining
- Aerospace
- Natural Science
- Training
- Education
- Research and Development
- Forensics
- Pharmaceuticals
- Micro Electronics
- SMT
- Semiconductor
Click for PDF of different HD Digital Microscope models and options
HD2010 Digital Microscope Camera

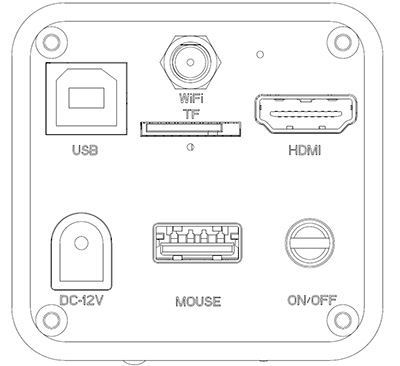

HD2010 is a multiple interfaces (HDMI+USB2.0+SD card+(optional) WiFi) CMOS camera and it adopts ultra-high performance Sony CMOS sensor as the image-picking device. HDMI+USB2.0 are used as the data transfer interface to HDMI display or computer; optional WiFi feature is available for connecting to Android or iOS devices.
Camera Specifications
(Mobile: swipe left for horizontal scrolling)
| Technical Specifications | |
| Image Sensor | 2 MP Sony 1/2 inch |
| Pixel Size | 3.75um x 3.75um |
| Image Resolution | 1920x1080 (16:9), 1440x1080 (4:3) |
| Video Resolution | 4KP25 (Clear), 1080P60 (Smooth), 720P120 (High Speed) |
| HDMI Resolution | 1080P60 |
| USB Resolution | 1080P30, 720P30, WVGAP60 |
| WiFi Output (Optional) | 960x540@30fps, Supports Android and iOS |
| Zoom Rate | 1X～16X Infinite Magnification |
| Exposure Control | AE Lock, Exposure Compensation (10 level adjustment) |
| White Balance | Auto, Manual (RGB 10 level adjustment), Calibration |
| Image Control | Ten level adjustment of contrast, saturation and sharpness |
| Comparison of the PIP | Full screen, left and right, up and down, 1/4 |
| Grid | 8 groups, position, color, thickness adjustable |
| Measurement (Optional) | Point, line, circle, angle |
| Language | English, Simplified Chinese, Traditional Chinese |
| Mouse Interface | TYPE-A USB2.0，recommended to use the original mouse (Optional) |
| IR Remoter | Max 5 meters |
| WiFi Antenna (Optional) | SMA, Max 10 meters |
| HDMI Interface | TYPE-A |
| USB Interface | TYPE-B USB2.0 |
| TF Card Slot | Max support 64G TF card |
| Lens | Suitable for C mount or CS mount |
| Device Size | 56mm（L）x 54mm（W）x 78mm（H）(Wifi antenna height is not included) |
| Device Weight | 185g（With WIFI）/ 175g（Without WIFI） |
| HD2010 requires below minimum computer specificiations for operation: | |
| Windows® Win10/Win7/Vista/XP SP3 or above OS | |
| Intel® Pentium 4, 2.8 GHz CPU or above | |
| At least 2GB RAM or above | |
| Standard USB 2.0 or above | |
| 512 MB or above video card | |
Measurement Software (Optional)
The optional measurement is available when the HD2010 is connected to a computer via USB output. With the optional measurement software, up to 8 calibrations can be saved for quicker measurements without having to recalibrate every time magnification is changed. The software allows a variety of different measurement functions, such as counting, RGB/YUV values, point-point, point-line, rectangle, polygon, radius/diameter/3-point circle, arc and angle measurements. The HD2010 measurement software can measure up to 100 groups of data, and each group can support up to 10 points.
WiFi Feature (Optional)
The HD2010 ergonomic digital microscope also offers an optional WiFi feature, which will allow you to view, control, and image playback wirelessly via WiFi connection. All you have to do is download the iSmartDV app to your iOS device (via App Store) or Android device (via Google Play).
WiFi Output: 960×540 @ 30FPS
HD2010 Ergonomic Digital Microscope Viewing Chart
(Mobile: swipe left for horizontal scrolling)
| Rear Coupler: | 0.5x (Standard) | 1x (Optional) | 2x (Optional) |
| Video Magnification on 11.6" Monitor: | 12x - 77x | 24x - 155x | 48x - 310x |
| Video Magnification on 24" Monitor: | 24x - 160x | 49x - 320x | 99x - 640x |
| Field of View (Diagonal): | 24.5 mm - 3.8 mm 0.97" - 0.15" | 12.3 mm - 1.9 mm 0.48" - 0.08" | 6.1 mm - 1.0 mm 0.24" - 0.04" |
| Working Distance: | 100 mm (3.9") | ||
| * Data are estimated by calculation. Optional rear couplers available (1x and 2x) for increasing magnification without changing working distance. Video magnification will be increased by the same factor. Field of view will be changed by inverse factor. | |||
