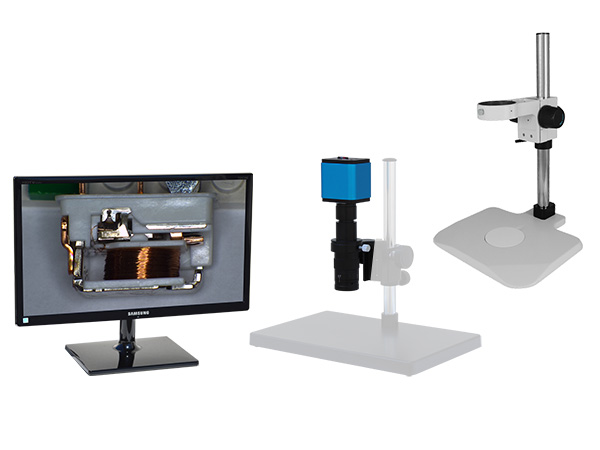

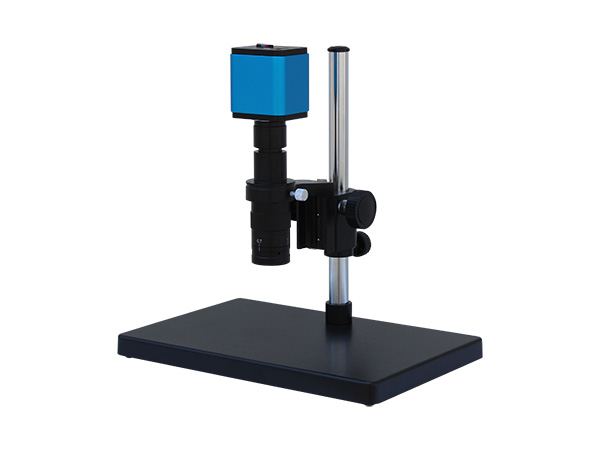

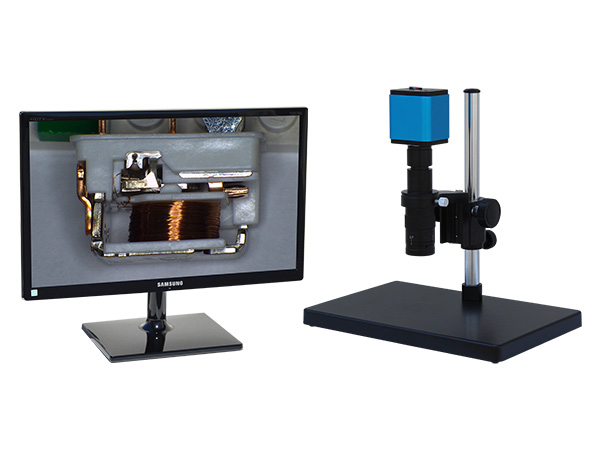

HD305 High Magnification HD 1080p Economy Digital Microscope
(9x – 457x)

HD305LBKm24

HD305LBSm24

HD305LUSm24

HD305LDUm24

HD305LABm24

HD305LAPm24

HD305LARm24

HD300 camera

HD305LBK

HD305LUS

HD305LDU

HD305LAB



                                                  Starting at $1000+

HD305 is the optimal high magnification HD 1080p economy digital microscope with USB and HDMI output, and exceptional Sony CMOS sensor to deliver Full HD 1080p resolution motion video without lag time. The manual focus system is equipped with the 1x front adapter and 2 rear couplers (0.5x, 1x) as the standard, which gives magnification range of 36x to 457x when configured with 24” HD monitor, or 17x to 221x on a 12” HD Retina Monitor at 3.9” (100mm) working distance (field of view range 0.10″ to 0.67″). Depending on application needs, HD305 can use other optional front lens adapters and rear couplers to increase or decrease magnification ranges.

The HD 1080p economy microscope has HDMI output to connect directly to the monitor and also features an SD card so that 2MP still images (1920x1080p) and HD 1080p motion videos can be saved directly to SD card without requiring computer connection. Through easy USB mouse control, the system has full camera controls and integrated measurement tools for complete independent functionality. If needed, HD305 can be connected directly to computer via USB output for full PC-side operation.

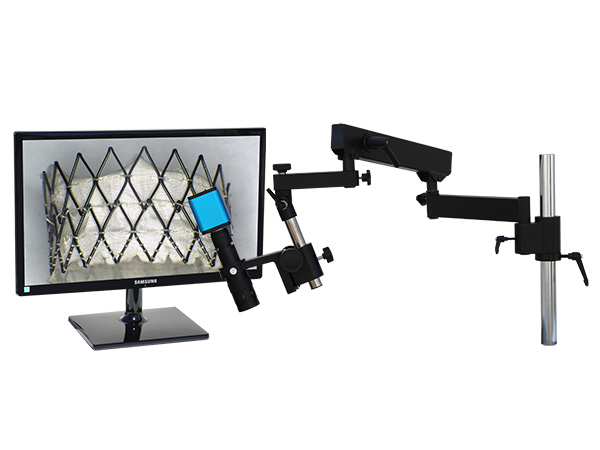

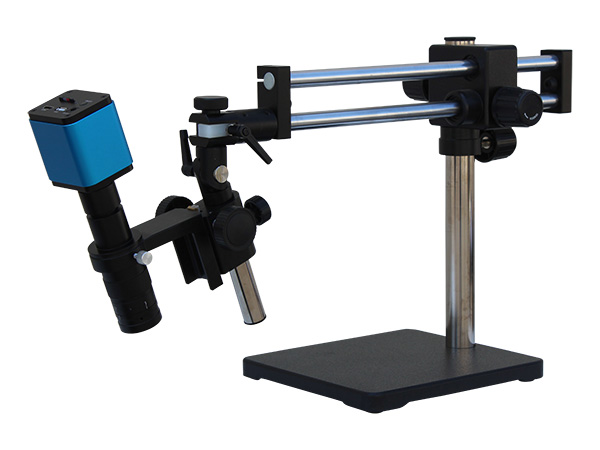

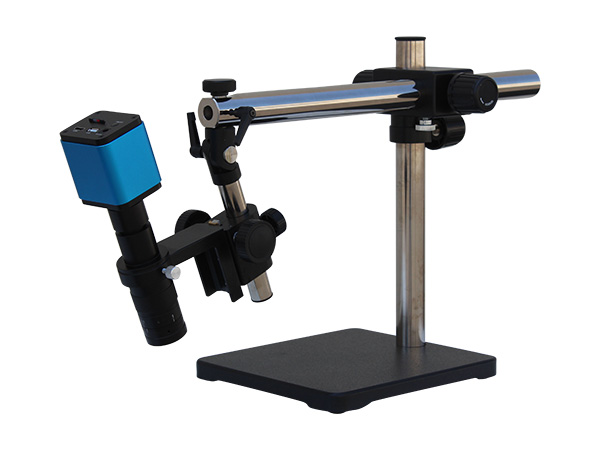

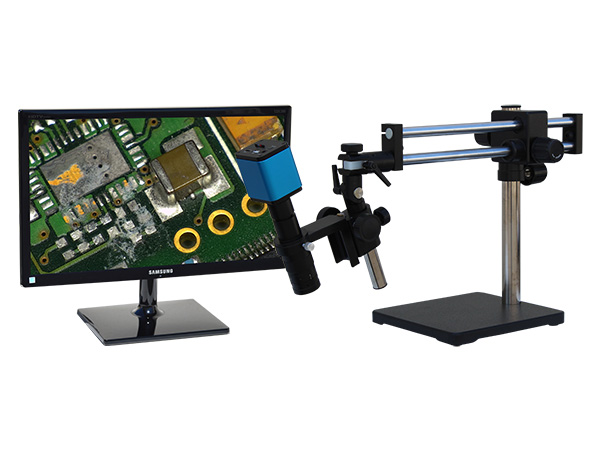

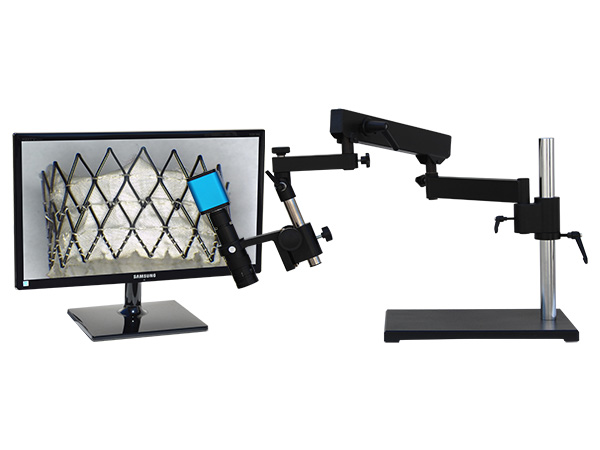

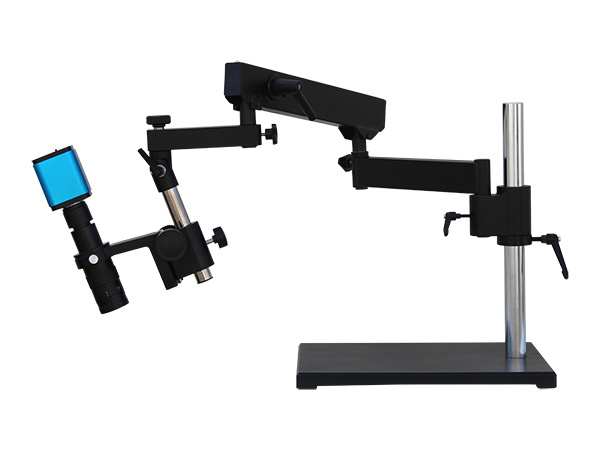

HD305 comes standard with a black basic stand and high intensity LED ring light. Other stand and lighting options are also available, such as boom stand, boom stand, articulating arm stand, polarizer lighting, gooseneck arm lighting, and more. In addition to the optional front adapters, the 0.35x rear coupler option can also be used to increase overall magnification range of the system without changing required working distances. XY measurement stages are also a good supplemental option when paired with on-screen digital measurements for routine measurement applications. For more customization options, please contact us with your application requirements.

Click for PDF of different HD Digital Microscope models and options

HD305 HD 1080p Economy Microscope Camera

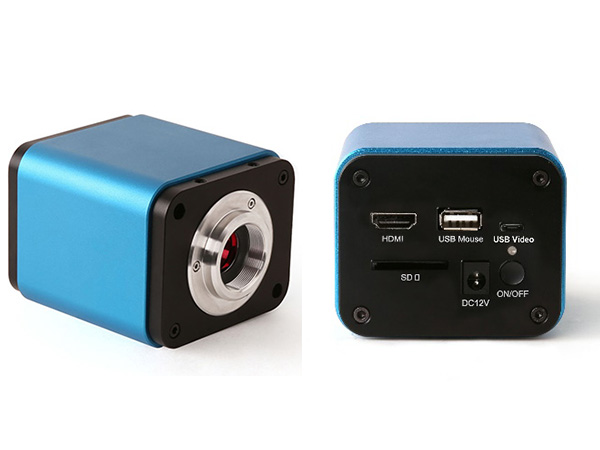

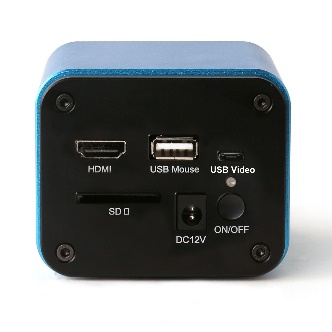

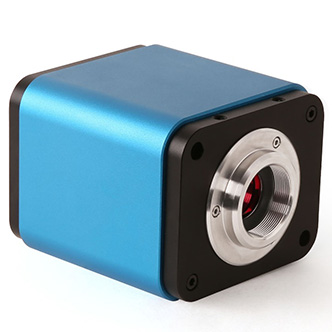

HD300 series is a multiple interfaces (HDMI+USB2.0+SD card output) CMOS camera that utilizes Sony CMOS sensor with exceptional performance for high quality imaging. HDMI output and USB2.0 output are used as the data transfer interface to HDMI input monitor display or computer, respectively.

For HDMI output to monitor, the system is used as an independent standalone inspection system. The camera will use the integrated YSC-HDMI-Measurement software for image processing and conducting measurements. The user interface is normally hidden to maximize field of view seen on screen, and can easily be recalled by hovering the USB connected mouse to the respective side of the screen. The Camera Control Panel will overlay on the left side of the screen, the Measurement Toolbar will overlay and appear on the top, and the Synthesis Camera control toolbar will appear on bottom of the screen when mouse hovers to that side of the screen. The mouse, which is connected to the USB port on the camera, will be used to make changes to camera settings, browse and compare captured images, play recorded videos and perform measurements.

For USB output to computer, the system’s operations will be done completely on the computer side. Plug in the included micro USB cable from camera to computer and the live video imaging will be transferred to the computer through PC-side software YSC-Measurement. Camera settings, image processing and measurements can all be done through the PC side software.

The HD300 series’ basic characteristics are as follows:

For HDMI output:

• All in 1( HDMI+USB+SD card) C-mount camera with Sony high sensitivity CMOS sensor;
• Simultaneous HDMI & USB output;
• Built-in mouse control;
• Built-in image capture & video record to SD card;
• Built-in camera control panel, including exposure (manual/auto) and gain, white balance (lockable), color adjustment, sharpness and de-noising control;
• Built-in video and image measurement software;
• Built-in toolbar including zoom, mirror, comparison, freeze, cross, browser functions;
• Built-in image & video browsing, display & play;
• Real time clock (RTC)

For USB Video output:

• Ultra-Fine color engine with perfect color reproduction capability (USB);
• PC-side software YSC-Measurement has advanced image/video processing and measurement features, including 2D measurement, HDR, image stitching, EDF(Extended Depth of Focus), image segmentation & count, image stacking, color composite and denoising(USB);
• Support standard UVC protocol for Windows OS (USB);
• CNC precision machining shell;

(Mobile: swipe left for horizontal scrolling)

Measurement Software

The possible applications of HD300 series are as follows:

• Scientific research, education (teaching, demonstration and academic exchanges);
• Digital laboratory, medical research;
• Industrial visual (PCB examination, IC quality control, mechanical part measurement);
• Medical treatment (pathological observation);
• Food (microbial colony observation and counting);
• Aerospace, military (high sophisticated weapons)

Systems can also be configured with Auto Focus camera

HD305 High Magnification HD 1080p Economy Digital Microscope Viewing Chart

Below chart is for system with 0.5x Rear Coupler

(Mobile: swipe left for horizontal scrolling)

Below chart is for system with 1x Rear Coupler

(Mobile: swipe left for horizontal scrolling)

Digital Microscope Image/Video Gallery (click to enlarge)

Click for PDF of different HD Digital Microscope models and options

 Compact UV LED Ring Light (BLACK LIGHT) for conformal coating inspection (350 – 400 nm)

Optional Digital Microscope Accessories (click to enlarge)
