HD801 HD 1080p Digital Microscope (2x – 244x)

HD801-LAB HD Digital Microscope
HD801-LBS HD Digital Microscope
HD801-LDUm24 HD Digital Microscope
HD801-LUSM24 HD Digital Microscope
HD801m12-LAB HD Digital Microscope
HD801m12-LBS HD Digital Microscope
HD801m12-LBS-XY HD Digital Microscope
HD801m12-LDU HD Digital Microscope
HD801m12-LUS HD Digital Microscope
HD801m12 with improved ergonomics

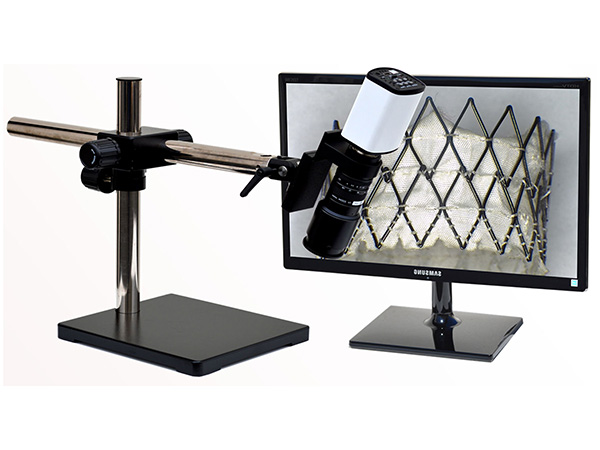

HD801LABm24
HD801LBSm24
HD801LDUm24
HD801LUSM24

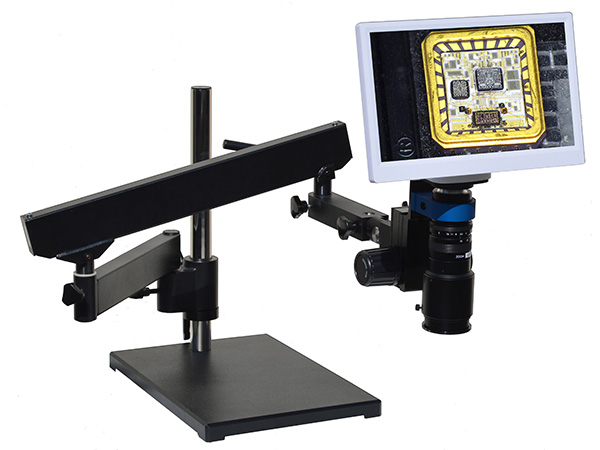

HD801LABm12
HD801LBSm12

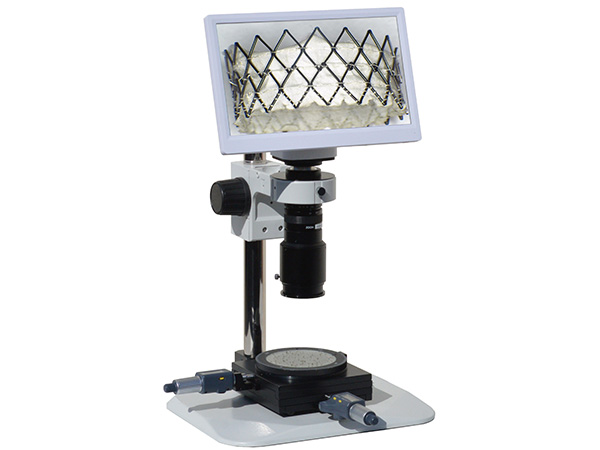

HD801LBSXYm12 with XY Measurement Stage

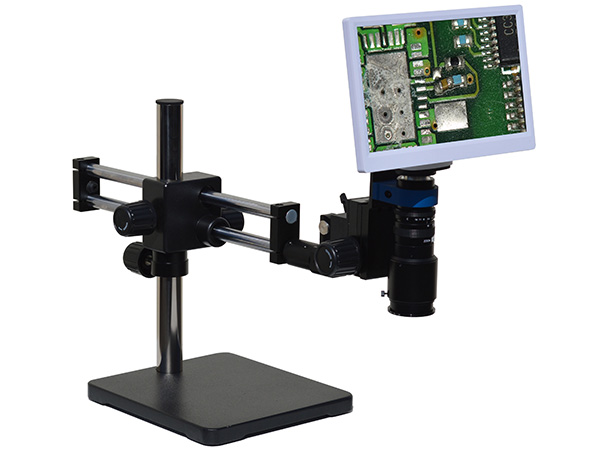

HD801LDUm12
HD801LUSm12
HD801LBSm12 with Improved Ergonomics
previous arrowprevious arrow
next arrownext arrow

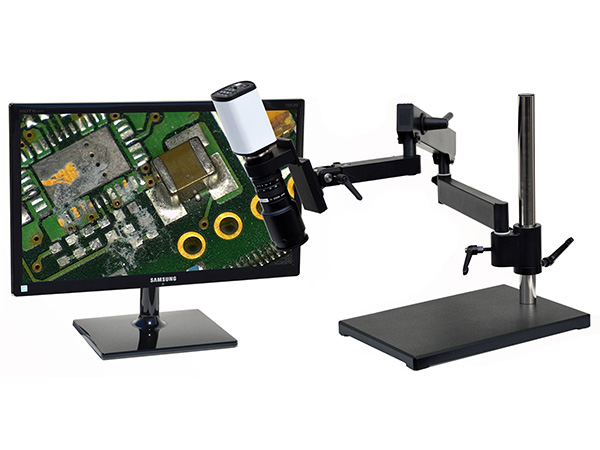

HD801LABm24

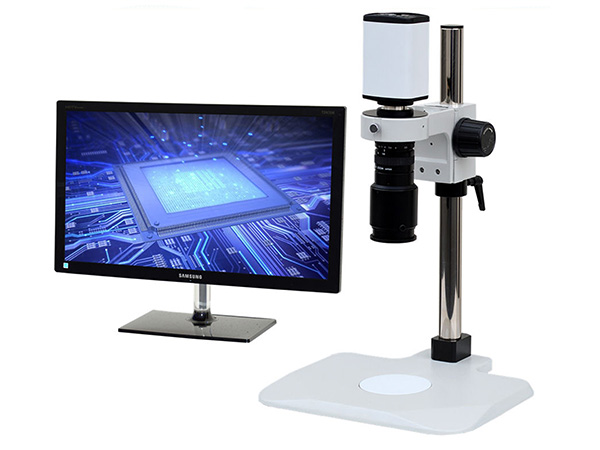

HD801LBSm24
HD801LDUm24
HD801LUSM24
HD801LABm12
HD801LBSm12
HD801LBSXYm12 with XY Measurement Stage
HD801LDUm12
HD801LUSm12
HD801LBSm12 with Improved Ergonomics
previous arrow
next arrow

Full HD 1080p digital microscope   Measurement Software   USB output SD storage HDMI output   Camera settings and tools easy controlled by mouse                                  Starting at $1800+

HD801 is the ultimate HD digital microscope with 12″ or 24” HD monitor paired with the most advanced high definition digital camera technology to deliver Full HD 1080p resolution motion video with no lag time. The HD digital microscope offers magnification of 5x-122x on 24″ HD monitor or 2x-59x on 12″ HD monitor with long working distance of 4.5”-12”. With field of view range of 0.2″ to 4.1″, the manual focus HD801 is ideal for assembly, inspection, training, real-time viewing, image capture and motion video documentation. Optional rear 2x lens can be used to increase the magnification up to 244x with same working distance. The HD digital microscope has HDMI output and SD card for direct image and motion video capture. Still images can be saved in 3264×1836 (6 mega-pixels) and motion HD video can be captured in 1080p. No computer is needed for image or video capture to SD card. USB output is available for direct connection to computer for video measurement application. Customized camera built-in measurement software is also available.

The HD801 can be configured with various stands, XY measurement stage, and lighting accessories. Adjustable high intensity LEDs provide bright uniform lighting for great picture quality. Diffuser glass filter can be used to reduce glare from highly reflective parts. Polarizer lighting and dual arm goose arm lighting options are also available for this HD801. The optional laser light pointer is great for locating the inspection area. Measurement software and XY measurement stages are also available with the HD801.

HD801 HD Digital Microscope Benefits

  • High Definition HD 1080p digital microscope
  • Healthy Ergonomics: Less eye fatigue and neck stress
  • Great Depth of Field
  • Long Working Distance: 4.5″ to 12″
  • Adjustable Viewing Angles (0 to 90 degrees)
  • Real Time Full Motion HD1080p 60fps
  • Large HD monitor for discussion or training purposes
  • Save images with 6 megapixel resolution direct to SD card
  • HD 1080p motion video can be recorded direct to SD card
  • No computer needed for SD card
  • Wide zoom ratio with constant focus
  • Full camera, lens and lighting adjustments
  • XY measurement stage options available
  • Many stand options
  • Adjustable high intensity LEDs with diffuser glass
  • Laser Pointer Option
  • Fluorescent or halogen lighting options
  • Measurement software and stage option

HD801 HD Digital Microscope Applications

  • Assembly
  • Production
  • Quality Control
  • Failure Analysis
  • Electronics
  • Documentation
  • Video Recording
  • Medical Device
  • Machining
  • Aerospace
  • Natural Science
  • Training
  • Education
  • Research and Development
  • Forensics
  • Pharmaceuticals
  • Micro Electronics
  • SMT
  • Semiconductor

Click for PDF of different HD801 models and options

HD801 HD Digital Microscope with Intelligent Integrated Measurement Tools (no PC required)

Smart Measurement Tools Built Inside the Camera (allow up to 10 calibrations)

The HD801 HD digital microscope provides extremely powerful measurement functionality including: freehand lines, rectangles, polygons, circles, bicircles, angles, point-line distance and much more. In addition to the ability to measure point-line distance, angles, the length of curves and lines, the camera can measure the perimeter & area of enclosed features such as: rectangles, polygons, and circles. The unique calibration and magnification functions coupled with the ability to export the results to Excel or text files, make the measurements more convenient and simple.

HD800 hd 1080p digital microscope integrated measurement software user interface
Camera settings and tools easily controlled by mouse

Micro Level Measurement Accuracy

The HD digital microscope is capable of delivering measurements with ultra high resolution which provides an incredible metrology capability in the most demanding situations.

HD800 hd 1080p digital microscope integrated measurement software circumference

Measurement for Various Applications

HD801 allows calibrations in mm, µm, inch and mil, which will meet various measurement requirements in different applications. And these results provide objective and reliable data to support quantitative analysis.

HD800 hd 1080p digital microscope measurement software

System can be configured with Auto Focus cameraSystems can also be configured with Auto Focus camera

Digital Microscope Camera Control & Measurement Settings (click to enlarge)

HD801 HD Digital Microscope Viewing Chart

(Mobile: swipe left for horizontal scrolling)
Working DistanceField of View (Diagonal)Video Mag. 12" MonitorVideo Mag. 24" Monitor
Low Mag.High Mag.Low Mag.High Mag.Low Mag.High Mag.
4.5" (114 mm)1.2"0.2"9x59x20x122x
30 mm5 mm
5" (127 mm)1.4"0.2"8x48x16x100x
36 mm6.1 mm
6" (152 mm)1.9"0.3"6x36x13x75x
47 mm8.1 mm
8" (203 mm)2.6"0.5"4x26x9x53x
65 mm11.5 mm
10" (254 mm)3.3"0.6"3x20x7x41x
85 mm15 mm
12" (305 mm)4.1"0.7"2x16x5x34x
103 mm18 mm

Optional 1.5x lens  [Working Distance reduces to approximate 53mm (2.1 inch) for 3.2 to 19mm (0.13 to 0.75 inch) DFOV] and also rear 2x lens (no change in working distance) are available.

HD Digital Microscope Image/Video Gallery (click to enlarge)

Click for PDF of different HD801 models and options

Compact UV LED ring light for conformal coating inspection Compact UV LED Ring Light (BLACK LIGHT) for conformal coating inspection (350 – 400 nm)

Optional Digital Microscope Accessories (click to enlarge)

New HD Digital Microscope Capture Software for Better Image Stitching & Extended Depth of Focus

Video Measurement Software for Digital Microscope

Image Stitching & Extended Depth of Focus Software
