HD807 HD 1080p Long Working Distance Digital Microscope (2x – 100x)

HD807LUSm24 hd 1080p digital microscope with universal boom stand and 24 inch hd monitor

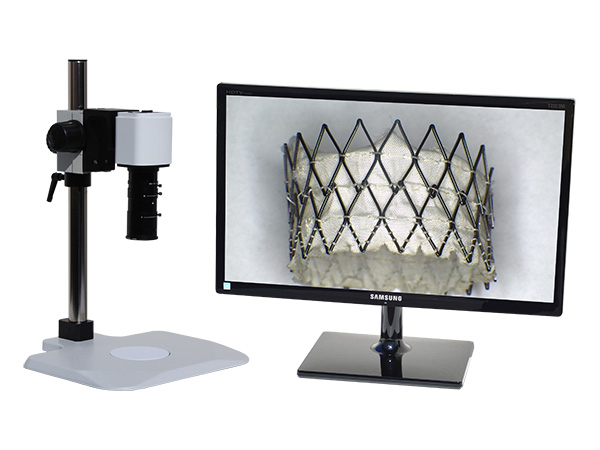

HD807LBSm24 hd 1080p digital microscope with basic stand and 24 inch hd monitor

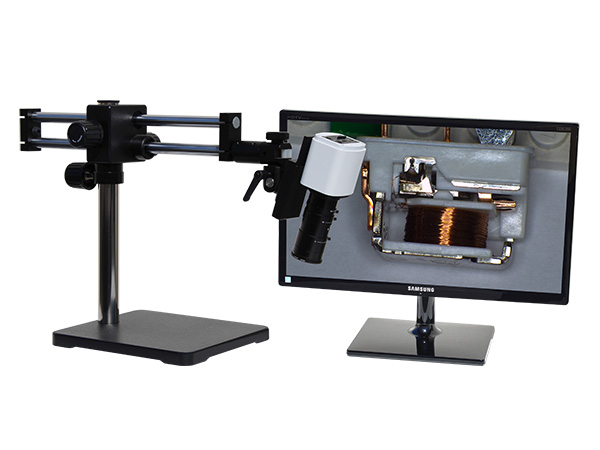

HD807LDUm24 hd 1080p digital microscope with dual sliding arm stand and 24 inch hd monitor

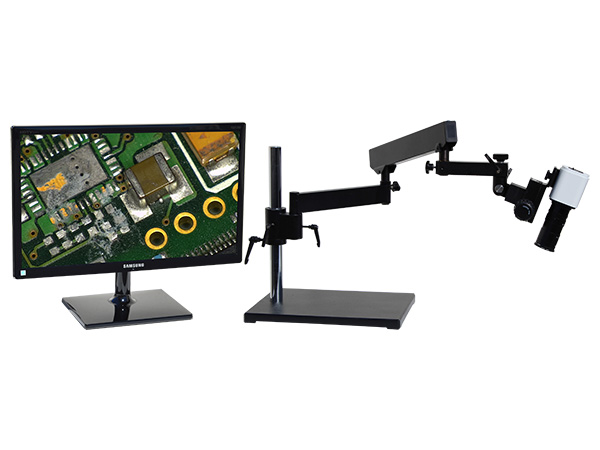

HD807LABm24 hd 1080p digital microscope with articulating arm stand and 24 inch hd monitor

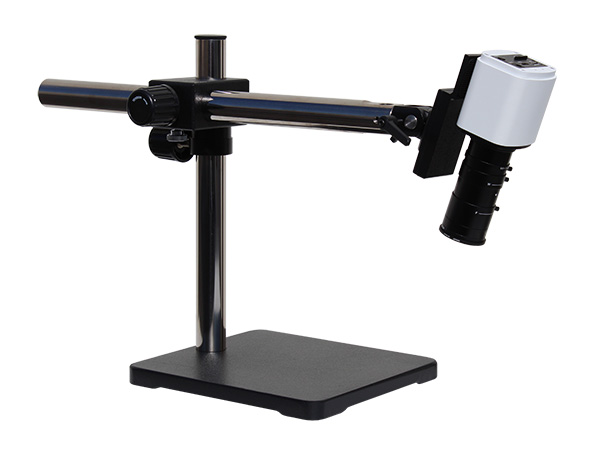

HD807LUS hd 1080p digital microscope with universal boom stand

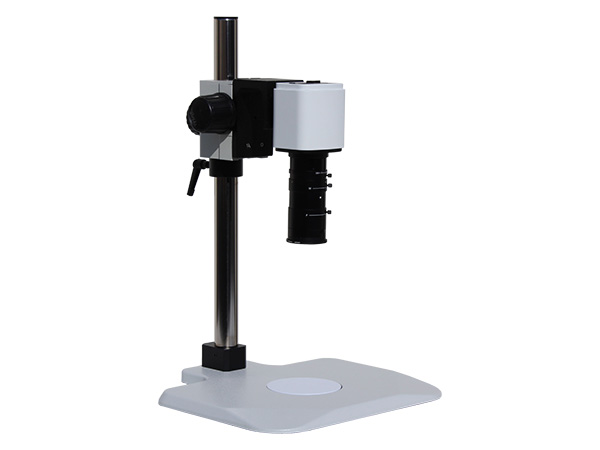

HD807LBS hd 1080p digital microscope with basic stand
HD807LDU hd 1080p digital microscope with dual sliding arm stand
HD807LAB hd 1080p digital microscope with articulating arm stand
HD807LUSm24
HD807LBSm24
HD807LDUm24
HD807LABm24
HD807LUS
HD807LBS
HD807LDU
HD807LAB
previous arrowprevious arrow
next arrownext arrow

HD807LUSm24
HD807LBSm24
HD807LDUm24
HD807LABm24
HD807LUS
HD807LBS
HD807LDU
HD807LAB
previous arrow
next arrow

Full HD 1080p digital microscope   Measurement software   USB output SD storage HDMI output   Camera settings and tools easily controlled by mouse                                       Starting at $1500+

HD807 is the ideal digital microscope for applications requiring long working distance and large field of view range. The system features leading high definition digital camera technology to deliver Full HD 1080p resolution motion video with no lag time, and can be paired with 12″ or 24” HD monitor. The HD digital microscope has magnification of 2x-100x (field of view range of 7″ to 0.18″) on 24″ HD monitor with long working distance range of 5.3″ to 16″, which is ideal for assembly, inspection, training, real-time viewing, image capture and motion video documentation. If needed, an optional rear 2x coupler can be used to increase the magnification up to 200x (down to 0.09″ FOV) while maintaining the system’s working distance ranges. The manual focus digital microscope has HDMI output to connect directly to monitor and SD card for direct image and motion video capture without requiring a PC connection. Still images can be saved in 3264×1836 (6 mega-pixels) and motion HD video can be captured in 1080p. Integrated built-in measurement software is available and allows the HD807 to be used as a complete standalone digital microscope system. USB output is also available for direct connection to computer for video measurement application/image captures direct to PC, if needed.

The HD807 can be configured with various accessories, including stands, XY measurement stage, and lighting accessories. The system includes an adjustable high intensity LED ring light, which provides bright uniform lighting for great image quality and a diffuser glass filter to reduce glare on reflective parts. Other lighting options, such as polarizer lighting, dual arm gooseneck lighting are also available. The system can also be used with the optional laser light pointer for pinpointing and locating the inspection area. Measurement software and XY measurement stages are also available with the HD807.

HD807 Long Working Distance Digital Microscope Benefits

  • High Definition HD 1080p digital microscope camera
  • Healthy ergonomics to reduce eye fatigue and neck stress
  • Great Depth of Field
  • Long Working Distance: 5.3″ to 16″
  • Adjustable Viewing Angles (0 to 90 degrees)
  • Real Time Full Motion HD1080p 60fps
  • Large HD monitor for discussion or training purposes
  • Save images with 6 megapixel resolution direct to SD card
  • HD 1080p motion video can be recorded direct to SD card
  • No computer needed for SD card
  • Wide zoom ratio with constant focus
  • Full camera, lens and lighting adjustments
  • XY measurement stage options available
  • Can be paired with different stand options
  • Adjustable high intensity LEDs with diffuser glass included
  • Optional features/accessories: fluorescent/halogen lighting, measurement software/stages, laser pointer

HD807 Digital Microscope Applications

  • Assembly
  • Production
  • Quality Control
  • Failure Analysis
  • Electronics
  • Documentation
  • Video Recording
  • Medical Device
  • Machining
  • Aerospace
  • Natural Science
  • Training
  • Education
  • Research and Development
  • Forensics
  • Pharmaceuticals
  • Micro Electronics
  • SMT
  • Semiconductor

Click for PDF of different HD Digital Microscope models and options

HD807 Digital Microscope with Intelligent Integrated Measurement Software
(no PC required)

Smart Measurement Tools Built Inside the Camera (allow up to 10 calibrations)

The HD807 long working distance digital microscope has various measurement software features: freehand lines, rectangles, polygons, circles, bicircles and much more. In addition to the ability to measure point-line distance, angles, and curves, the camera can also measure the perimeter & area of enclosed features such as: rectangles, polygons, and circles. The unique calibration and magnification functions coupled with the ability to export the results into Excel or text format, make measurements convenient and efficient.

HD800 hd 1080p digital microscope integrated measurement software user interface
Camera settings and tools easily controlled by mouse

Micro Level Measurement Accuracy

The digital microscope is capable of delivering measurements with ultra high resolution, providing an outstanding metrology capability in the most demanding situations.

HD800 hd 1080p digital microscope integrated measurement software circumference

Measurement for Various Applications

HD807 measurements can be calibrated in mm, µm, inch and mil, providing objective and reliable data to support quantitative analysis.

HD800 hd 1080p digital microscope measurement software

System can be configured with auto focus cameraSystems can also be configured with Auto Focus camera

Digital Microscope Camera Control & Measurement Settings (click to enlarge)

HD807 Long Working Distance Digital Microscope Viewing Chart

(Mobile: swipe left for horizontal scrolling)
Working Distance
HD807HD807h
Video Magnification (24" LCD)
5.3" (135 mm)
10x-100x
20x-200x
Horizontal Field of View
46 mm to 4.6 mm

1.8" to 0.18"
23 mm to 2.3 mm

0.9" to 0.09"
Video Magnification (24" LCD)
8" (203 mm)
6x - 59x
12x - 118x
Horizontal Field of View
80 mm to 8.0 mm

3" to 0.3"
40 mm to 4.0 mm

1.5" to 0.15"
Video Magnification (24" LCD)
10" (254 mm)
4.2x to 42x
8.4x - 84x
Horizontal Field of View
113 mm to 11.3 mm

4.4" to 0.4"
56.5 mm to 5.7 mm

2.2" to 0.2"
Video Magnification (24" LCD)
12" (305 mm)
3.7x - 37x
7.4x - 74x
Horizontal Field of View
130 mm to 13 mm

5.1" to 0.5"
65 mm to 6.5 mm

2.5" to 0.25"
Video Magnification (24" LCD)
16" (406 mm)
2.7x - 27x
5.4x - 54x
Horizontal Field of View
176 mm to 17.6 mm

7.0" to 0.7"
88 mm to 8.8 mm

3.5" to 0.35"
*Specifications subject to changes and E&O without notice and liabilities.
