Starting at $2,000+
HD80W is an excellent wide view digital microscope for applications requiring extra large field of view and long working distance. The manual focus system features a digital camera with exceptional high definition technology to deliver full HD 1080p resolution live video with no lag time. The wide view digital microscope offers possible magnification of 2x-16x on 24″ HD monitor or 1x-8x on 12″ Retina display HD monitor with possible long working distance of 3.3”-25.5” and large field of view range of 1.3” to 12”, which is ideal for assembly, inspection, training, real-time viewing, image capture and motion video documentation. With an optional 2x rear coupler, magnification can be doubled while maintaining working distances, with maximum possible magnification of 32x. The digital microscope has HDMI output for direct connection to monitor and SD card for direct image and motion video capture without having to connect to a computer. Still images can be saved in 3264×1836 (6 mega-pixels) and motion HD video can be captured in 1080p. The camera also has customized built-in measurement software, allowing the system to be a fully functioning standalone unit. USB output is also available for video measurement and image capture application direct to computer, if needed.
The HD80W can be configured with various stands, XY measurement stage, and lighting accessories. An adjustable high intensity LED ring light with diffuser glass (to reduce glare from reflective surfaces) is included to provide bright uniform lighting for great picture quality. Polarizer lighting and dual arm goose arm lighting options are also available as alternative lighting options. The optional laser light pointer accessory is great for locating the inspection area. In addition to the video measurement software, different XY measurement stages can also be used for measurement purposes.
HD80W Wide View Digital Microscope Benefits
- HD 1080p wide view digital microscope
- Designed ergonomically with user’s comfort in mind, and decrease eye and neck strain
- Great Depth of Field
- Extra Long Working Distance: 3.3″ to 25.5″
- Adjustable Viewing Angles (0 to 90 degrees)
- Real Time Full Motion HD1080p 60fps
- Large 24″ HD monitor availabe for discussion or training purposes
- 6 MP image saves and HD 1080p video recordings
- No computer needed image and video saves direct to SD card
- Wide zoom ratio with constant focus
- Full camera, lens and lighting adjustments included

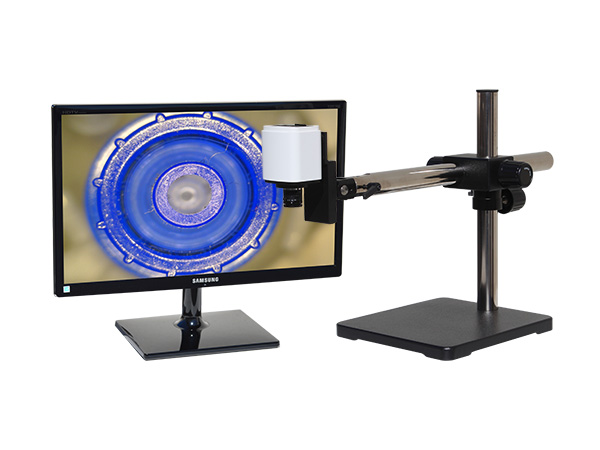

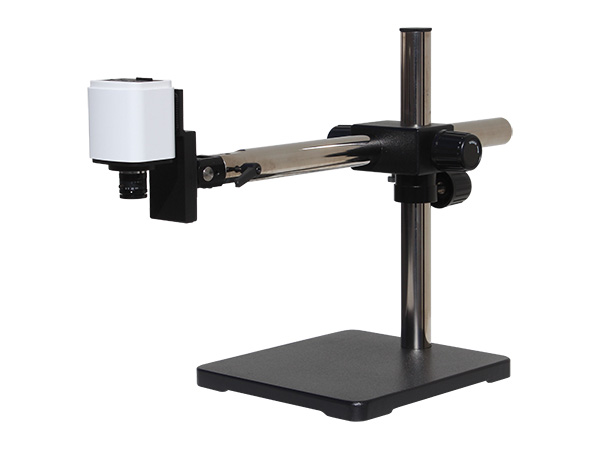

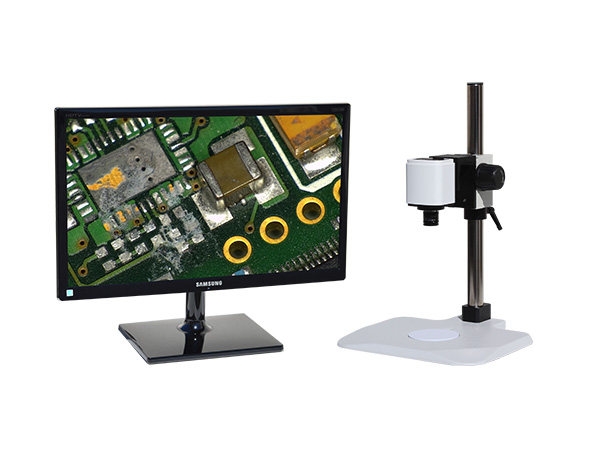

- Stand options include basic, dual arm, boom, and articulating arm stand
- Adjustable high intensity LEDs with diffuser glass included
- Other accessory options available: laser pointer, fluorescent/halogen lighting, measurement software, XY measurement stage
HD80W Wide View Digital Microscope Applications
- Assembly
- Production
- Quality Control
- Failure Analysis
- Electronics
- Documentation
- Video Recording
- Medical Device
- Machining
- Aerospace
- Natural Science
- Training
- Education
- Research and Development
- Forensics
- Pharmaceuticals
- Micro Electronics
- SMT
- Semiconductor
Click for PDF of different HD801 models and options
HD80W Wide View Digital Microscope with Intelligent Integrated Measurement Tools (no PC required)
Smart Measurement Tools Built Inside the Camera (allow up to 10 calibrations)
The HD80W wide view digital microscope has a variety of measurement capabilities, including: freehand lines, rectangles, polygons, circles, bicircles, angles, point-line distance and much more. The digital microscope measurement software is also able to measure the perimeter & area of enclosed features (i.e. rectangles, polygons, and circles). With easy calibration and magnification functions, measurements are easy and efficient, and can be exported into Excel or text files.
Camera settings and tools easily controlled by mouse
Camera settings and tools easily controlled by mouseMicro Level Measurement Accuracy
The digital microscope is capable of delivering measurements with high resolution accuracy, allowing for outstanding metrology capability in the most demanding situations.
Measurement for Various Applications
HD80W wide view digital microscope’s measurements can be calibrated in mm, µm, inch and mil to meet different measurement requirements of different applications, allowing results to be consistent, objective and reliable for quantitative analysis.
Systems can also be configured with Auto Focus camera
Systems can also be configured with Auto Focus cameraDigital Microscope Camera Control & Measurement Settings (click to enlarge)
HD80W Wide View Digital Microscope Viewing Chart
(Mobile: swipe left for horizontal scrolling)
| HD80w16 | HD80w12 | |
Video Magnification (24" LCD) | 16x | 10x |
Horizontal Field of View | 1.3" (32 mm) | 2" (51 mm) |
Video Magnification (12" LCD) | 8x | 5x |
Working Distance | 3.3" (83 mm) | 3.8" (95 mm) |
Video Magnification (24" LCD) | 10x | 5x |
Horizontal Field of View | 2" (51 mm) | 4" (102 mm) |
Video Magnification (12" LCD) | 5x | 3x |
Working Distance | 5.3" (133 mm) | 8" (203 mm) |
Video Magnification (24" LCD) | 7x | 3x |
Horizontal Field of View | 3" (76 mm) | 6" (152 mm) |
Video Magnification (12" LCD) | 3.5x | 2x |
Working Distance | 8.3" (210 mm) | 12.3" (311 mm) |
Video Magnification (24" LCD) | 5x | 3x |
Horizontal Field of View | 4" (102 mm) | 8" (203 mm) |
Video Magnification (12" LCD) | 2.5x | 1x |
Working Distance | 11" (279 mm) | 16.8" (425 mm) |
Video Magnification (24" LCD) | 4x | 2x |
Horizontal Field of View | 5" (127 mm) | 10" (254 mm) |
Video Magnification (12" LCD) | 2x | 1x |
Working Distance | 14" (356 mm) | 21" (533 mm) |
Video Magnification (24" LCD) | 3x | 2x |
Horizontal Field of View | 6" (152 mm) | 12" (305 mm) |
Video Magnification (12" LCD) | 1.5x | 1x |
Working Distance | 17" (432 mm) | 25.5" (648 mm) |
| *Specifications subject to changes and E&O without notice and liabilities. | ||
