HD8TR HD 1080p Trinocular Digital Microscope (3x – 429x)

HD8TRLDUm12 hd 1080p trinocular digital microscope with dual sliding arm stand and 12 inch hd monitor

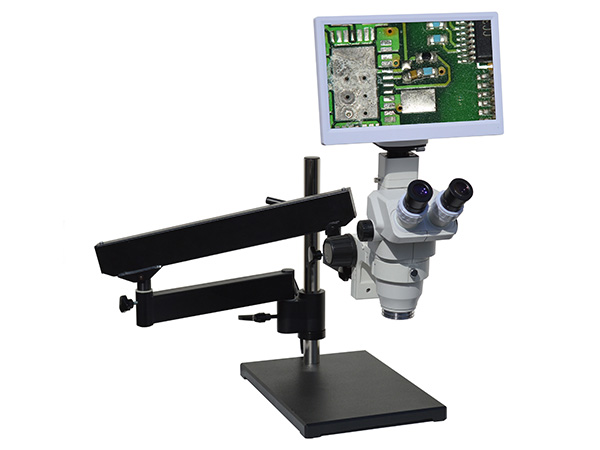

HD8TRLABm12 hd 1080p trinocular digital microscope with articulating arm stand and 12 inch hd monitor
HD8TRLUSm12 hd 1080p trinocular digital microscope with universal boom stand and 12 inch hd monitor
HD8TRLBSm12 hd 1080p trinocular digital microscope with basic stand and 12 inch hd monitor
HD8TRLDUm12
HD8TRLABm12
HD8TRLUSm12
HD8TRLBSm12
previous arrowprevious arrow
next arrownext arrow

HD8TRLDUm12
HD8TRLABm12
HD8TRLUSm12
HD8TRLBSm12
previous arrow
next arrow

Full HD 1080p digital microscope   Measurement software   USB output SD storage HDMI output   Camera controls and settings easily controlled by mouse                                      Starting at $2,000+

HD8TR is the optimal HD 1080p trinocular digital microscope featuring traditional microscope eyepieces as well as a trinocular port to transform the system into a digital microscope. The manual focus system can be integrated with a 11.6 inch Retina HD Display to provide superb image quality at 60 frames per second for inspection and real time viewing while maintaining the traditional eyepiece viewing option for optimal flexibility and also saving on monitor benchtop footprint (24 inch HD monitor also available). This trinocular digital microscope allows simultaneous viewing of eyepiece and HD video at the same time (on 11.6” or 24” monitor). The HD8TR is a great option for a standalone digital microscope unit: high resolution 6 mega pixels (3264×1836) images and 1080p full motion video can be saved directly to SD card, and it also has integrated measurement tools without needing computer connection. The microscope camera also has dual HDMI and USB output for optional direct connection to computer via USB port for video measurement application and saving image and video captures to computer instead.

The HD8TRm12 HD digital microscope has great clearance for assembly or rework applications with its long working distance range from 1.0 inch to 11.3 inch. The system has a possible optical magnification of 2x to 270x, and can be paired with different eyepiece (10x, 15x, 20x, 25x and 30x) and auxiliary lens (0.3x, 0.5x, 0.75x, 1.5x and 2x). When HD8TR is configured with the 11.6 inch HD monitor, the system has a possible video magnification from 3x to 828x, and a possible 7x to 1716x video magnification on a 24 inch HD monitor. The system has possible diagonal field of view range 0.35mm to 91mm (0.015 inch to 3.58 inch), and includes a high intensity LED ring light with adjustable dimmer for bright and uniform lighting.

The HD8TR HD trinocular digital microscope works great with integrated 11.6 inch Retina screen to help operator improve efficiency and productivity with proper head and neck position to reduce fatigue and strain. Better ergonomics help operators perform work better and with higher accuracy. The small mounted HD 1080p monitor can also be used as a presentation tool to show and display quality work for training purpose to improve communication and minimize errors. The motion video recording feature is also great for archiving training videos for operators to review at a later time.

The HD digital microscope inspection system can be customized with various microscope stands, including articulating arm stand, basic stand, back lighting stand, dual arm ball bearing sliding stand, or universal stand. Articulating arm stands can be mounted using clamps to work bench edge or hard mount to table surface. The viewing angle on the microscope can be changed from top down to oblique side profile by tilting focus holder. In addition to video measurement software, X-Y measurement stage with cross hair on monitor screen is also a popular option for routine measurement applications. Other lighting options, such as internal coaxial lighting (bright field lighting for wafer, die or cross section), polarizer lighting, dual arm fiber light guide and fluorescent are also available. The laser pointer is also great for locating the inspection area. Please contact us for your special customization needs so we can better assist in recommendation.

HD8TR Trinocular Digital Microscope Benefits

  • High Definition HD 1080p 60 fps video display without lag
  • Eyepiece and HD video viewing option
  • Great ergonomic trinocular design for reducing neck stress and eye fatigue
  • Great Depth of Field with adjustable iris and aperture
  • Long Working Distance range: 1.0″ to 11.3″
  • Wide possible video field of view 0.35mm to 91mm (0.015 inch to 3.58 inch)
  • Adjustable Viewing Angles (0 to 90 degrees)
  • Real Time Full Motion HD1080p 60fps
  • 24 HD Video Display and Integrated 11.6 inch HD Retina HD Display available
  • Can connect to larger HD monitors (17 inch to 80 inch) for training or presentation
  • High resolution 6 mega pixels (3264×1836) images and 1080p full motion video can be saved directly to SD card without computer connection
  • Parfocal lens so that imaging stays in focus when magnification is adjusted without changing working distance
  • Lens with detent click stops
  • Dual USB output for direct connection to computer’s USB port
  • Many stand and hardware for customization option available
  • Full camera settings control
  • Adjustable high intensity LEDs with diffuser plate to reduce glare included
  • Other lighting options: Internal coaxial lighting (bright field lighting for wafer, die or cross section), fluorescent, halogen and polarizer lighting options
  • Video measurement software and XY measurement stages options

HD8TR Digital Microscope Applications

  •  Assembly
  • Production
  • Quality Control
  • Failure Analysis
  • Electronics
  • Documentation
  • Medical Device
  • Machining
  • Aerospace
  • Natural Science
  • Training
  • Education
  • Research and Development

Click for PDF of different HD8TR models and options

HD8TR Trinocular Digital Microscope with Intelligent Integrated Measurement Tools (no PC required)

Smart Measurement Tools Built Inside the Camera (allow up to 10 calibrations)

The HD8TR trinocular digital microscope has many measurement functionality including: freehand lines, rectangles, polygons, circles, bicircles, angles, point-line distance and much more. Additionally, the camera can measure the perimeter & area of enclosed features (rectangles, polygons, and circles). Measurements can be exported to Excel or text files for further data analysis.

HD800 hd 1080p digital microscope integrated measurement software user interfaceCamera settings and tools easily controlled by mouse

Micro Level Measurement Accuracy

The digital microscope is capable of delivering measurements with high resolution and accuracy to provide great metrology capability in the most demanding situations.

HD800 hd 1080p digital microscope integrated measurement software circumference

Measurement for Various Applications

HD8TR trinocular digital microscope measurements can be calibrated in mm, µm, inch and mil for objective and reliable data to support quantitative analysis.

HD800 hd 1080p digital microscope measurement software

System can be configured with auto focus cameraSystems can also be configured with Auto Focus camera

Digital Microscope Camera Control & Measurement Settings (click to enlarge)

HD8TR Trinocular Digital Microscope Viewing Chart

(Mobile: swipe left for horizontal scrolling)
Eyepiece 10x15x20x25x30x0.35x  Video Coupler0.5x  Video Coupler
Body Zoom 0.67x - 4.5xField of View
(Diagonal)
Video Magnification
per HD Monitor Size
Field of View
(Diagonal)
Video Magnification
per HD Monitor Size
Magnification total
6.7x - 45x
10x - 68x
13x - 90x
17x - 113x
20x - 135x
mminch11.6 inch24 inchmminch11.6 inch24 inch
Auxiliary Lens 0.3x
(WD=287mm/11.3 inch)
2x - 14x3x - 20x4x - 27x5x - 34x6x - 41x91 to 13.5
3.58 to 0.53
3x - 22x
7x - 45x
63.7 to 9.5
2.51 to 0.37
5x - 31x
10x - 64x
Auxiliary Lens 0.5x
(WD=177mm/7.0 inch)
3x - 23x5x - 34x7x - 45x9x - 57x10x - 68x54.6 to 8.1
2.15 to 0.32
5x - 36x
11x - 75x
38.2 to 5.7
1.5 to 0.22
8x - 52x
16x - 107x
Auxiliary Lens 0.75x
(WD=117mm/4.6 inch)
5x - 34x8x - 51x10x - 68x13x - 85x15x - 101x36.4 to 5.4
1.43 to 0.21
8x - 54x
17x - 113x
25.5 to 3.8
1 to 0.15
12x - 78x
24x - 161x
Auxiliary Lens 1.0x
(WD=100mm/3.9 inch)
6.7x - 45x10x - 68x13x - 90x17x - 113x20x - 135x27.3 to 4.1
1.07 to 0.16
11x - 73x
22x - 150x
19.1 to 2.8
0.75 to 0.11
15x - 104x
32x - 214x
Auxiliary Lens 1.5x
(WD=47mm/1.9 inch)
10x - 68x15x - 102x20x - 135x26x - 170x30x - 203x18.2 to 2.7
0.72 to 0.11
16x - 109x
34x - 225x
12.7 to 1.9
0.5 to 0.07
23x - 155x
48x - 321x
Auxiliary Lens 2x
(WD=26mm / 1.0 inch)
13x - 90x20x - 136x26x - 180x34x - 226x40x - 270x13.6 to 2
0.54 to 0.08
22x - 145x
45x - 300x
9.6 to 1.4
0.38 to 0.06
31x - 207x
64x - 429x

Video Coupler Options: 0.35x, 0.5x, or 1x
