Starting at $1900+
HD802 is the ideal high definition 1080p high magnification digital microscope with superb image quality at 60 frames per second for inspection and real time viewing. High resolution 6 mega pixels (3264×1836) images and 1080p full motion video can be saved direct to SD card for documentation, training and communication with other engineers or colleagues—no computer needed! The microscope camera has dual HDMI and USB output for direct connection to computer via USB port for video measurement application and also direct image and video capture to computer, if application requires. Full camera settings can be easily adjusted with a mouse, which is interfaced directly with HD camera to use the system completely as a standalone unit.
The HD802 HD digital microscope offers long working distance range from 1.8 inches to 13 inches to provide good clearance for production, QC, QA, FA and R&D applications. The manual focus microscope has a diagonal field of view range of 0.35mm to 82mm (0.013 inch to 3.2 inch) and when configured with a 24” HD monitor, the system will have a possible magnification of 18x to 1914x video magnification. HD802 can also be configured with a 12” Retina HD monitor display, which has possible magnification range of 9x to 442x, and also helps save on monitor footprint on the work bench.

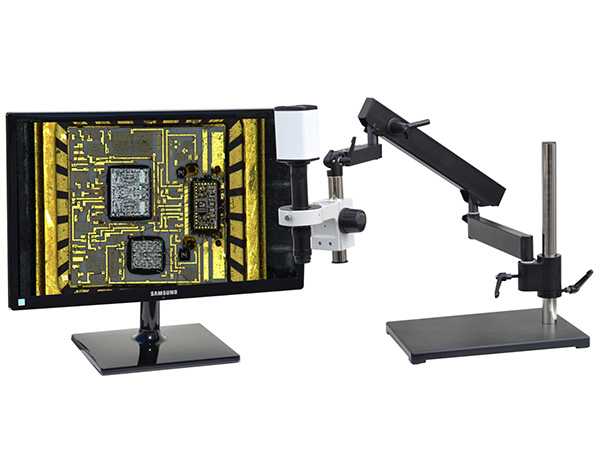

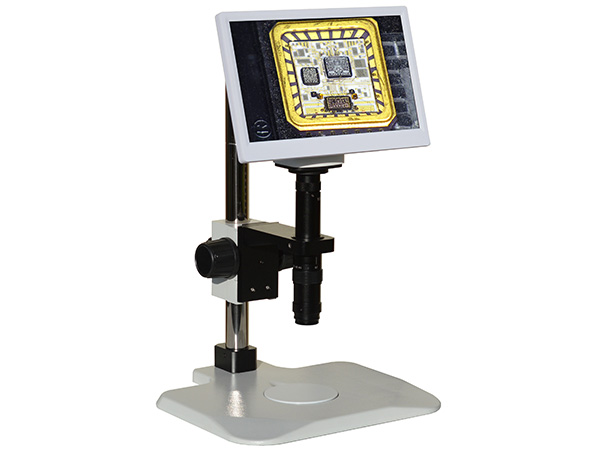

The HD802 is available with various microscope stand options: articulating arm stand, basic stand, back lighting stand, dual arm ball bearing sliding stand, or universal stand. Viewing angle can be changed from top down to oblique side profile, depending on stand choice. Articulating arm stands can be mounted using clamps to work bench edge or hard mount to table surface. In addition to video measurement software, the optional XY measurement stage with cross hair on monitor screen is also a popular option for routine measurement applications. This high magnification digital microscope comes standard with a high intensity LED ring light and an adjustable dimmer that offers bright and uniform lighting. Other lighting options available include internal coaxial lighting (i.e. bright field lighting for wafer, die or cross section), polarizer lighting, dual arm fiber light guide and fluorescent lighting. For applications requiring visual indicator of inspection area, we also carry laser pointers. For more specific customizations, please contact us regarding your special application needs.
HD802 High Magnification Digital Microscope Benefits
- HD 1080p high magnification digital microscope
- Ergonomic in design to reduce eye fatigue and neck strain
- Great Depth of Field
- Long Working Distance Range: 1.8″ to 13″
- Adjustable Viewing Angles (0 to 90 degrees)
- Real Time Full Motion HD1080p 60fps
- Large HD monitor for discussion or training purposes
- Save images (6 MP) and record motion video (HD 1080p) direct to SD card (No PC needed)
- Wide zoom ratio with constant focus
- Full camera, lens and lighting adjustments included
- Many stand options, from basic to articulating arm stands
- Adjustable high intensity LEDs with diffuser glass included
- Optional accessories: laser pointer, fluorescent/halogen lighting, XY measurement stage, measurement software
HD802 Digital Microscope Applications
- Assembly
- Production
- Quality Control
- Failure Analysis
- Electronics
- Documentation
- Medical Device
- Machining
- Aerospace
- Natural Science
- Training
- Education
- Research and Development
Click for PDF of different HD802 models and options

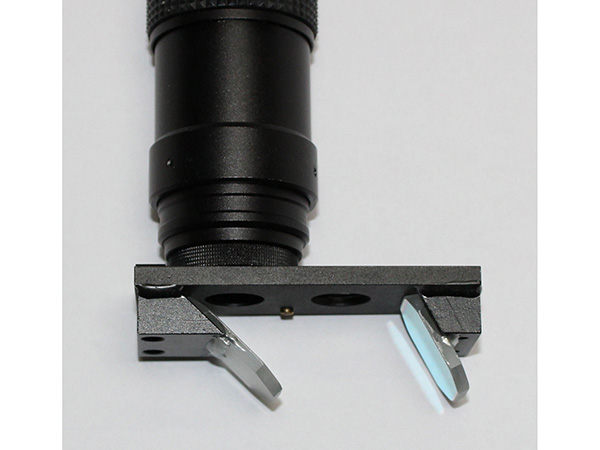

3D Mirror for 35 Degree Angle Viewing Option
- Can be used with 45 degree prism mirror for BGA solder side view inspection.
- Also ideal for SMT and hybrid wire bond inspection.
See below video for example of application with 3D adapter:
HD802 High Magnification Digital Microscope with Intelligent Integrated Measurement Tools (no PC required)
Smart Measurement Tools Built Inside the Camera (allow up to 10 calibrations)
HD802 high magnification digital microscope provides excellent measurement features, including drawing freehand lines, rectangles, polygons, circles, bicircles, angles, point-line distance and much more. In addition to line measurements, the system can even conduct perimeter and enclosed area measurements (rectangles, polygons, circles). The software has unique calibration and magnification functions and can export results to Excel or text files, making the measurements efficient and convenient.
Camera settings and tools easily controlled by mouse
Camera settings and tools easily controlled by mouseMicro Level Measurement Accuracy
The digital microscope is capable of delivering measurements with high resolution and accuracy, providing an incredible metrology capability in the most demanding situations.
Measurement for Various Applications
Measurements on HD802 high magnification digital microscope can be calibrated in mm, µm, inch and mil, which will meet various standards in different measurement applications to provide objective and reliable data to support quantitative analysis.
Systems can also be configured with Auto Focus camera
Systems can also be configured with Auto Focus cameraDigital Microscope Camera Control & Measurement Settings (click to enlarge)
HD802 High Magnification Digital Microscope Viewing Chart
(Mobile: swipe left for horizontal scrolling)
| Adapter: | 0.3x | 0.5x | 0.75x | 1x (standard) | 1.5x | 2x |
| Video Magnification on 11.6" Monitor: | 10x - 66x | 17x - 110x | 25x - 166x | 34x - 221x | 51x - 331x | 68x - 442x |
| Video Magnification on 24" Monitor: | 21x - 137x | 35x - 229x | 53x - 343x | 71x - 457x | 106x - 686x | 142x - 914x |
| Field of View (Diagonal): | 28.6 mm - 4.4 mm 1.12" - 0.175" | 17.1 mm - 2.7 mm 0.675" - 0.105" | 11.4 mm - 1.8 mm 0.450" - 0.070" | 8.6 mm - 1.3 mm 0.337" - 0.052" | 5.7 mm - 0.9 mm 0.337" - 0.052" | 4.3 mm - 0.7 mm 0.169" - 0.026" |
| Working Distance: | 331 mm (13.0") | 199 mm (7.8") | 131 mm (5.2") | 97 mm (3.8") | 61 mm (2.4") | 46 mm (1.8") |
| * Data are estimated by calculation. Optional rear couplers available (0.35x, 0.5x, 0.75x, 1.5x, 2x) for lowering or increasing magnification without changing working distance. Video magnification will be increased by the same factor. Field of view will be changed by inverse factor. | ||||||
Below chart is for system with 0.5x Rear Coupler
| Adapter: | 0.3x | 0.5x | 0.75x | 1x (standard) | 1.5x | 2x |
| Video Magnification on 11.6" Monitor: | 5x - 33x | 9x - 55x | 13x - 83x | 17x - 110x | 26x - 166x | 34x - 221x |
| Video Magnification on 24" Monitor: | 11x - 69x | 18x - 114x | 27x - 171x | 36x - 229x | 53x - 343x | 71x - 457x |
| Field of View (Diagonal): | 57.1 mm - 8.9 mm 2.25" - 0.35" | 34.3 mm - 5.3 mm 1.35" - 0.21" | 22.9 mm - 3.6 mm 0.90" - 0.14" | 17.1 mm - 2.7 mm 0.67" - 0.10" | 11.4 mm - 1.8 mm 0.45" - 0.07" | 8.6 mm - 1.3 mm 0.34" - 0.05" |
| Working Distance: | 331 mm (13.0") | 199 mm (7.8") | 131 mm (5.2") | 97 mm (3.8") | 61 mm (2.4") | 46 mm (1.8") |
| * Data are estimated by calculation. Optional rear couplers available (0.35x, 0.5x, 0.75x, 1.5x, 2x) for lowering or increasing magnification without changing working distance. Video magnification will be increased by the same factor. Field of view will be changed by inverse factor. | ||||||
(Mobile: swipe left for horizontal scrolling)
| Objective: | 1x (standard) | 5x | 10x | 20x | 50x | 100x |
| Video Magnification on 11.6" Monitor: | 34x - 221x | 172x - 1105x | 344x - 2210x | 687x - 4420x | 1719x - 11049x | 3437x - 22098x |
| Video Magnification on 24" Monitor: | 71x - 457x | 356x - 2286x | 711x - 4572x | 1422x - 9144x | 3556x - 22860x | 7112x - 45720x |
| Field of View (Diagonal): | 8.6 mm - 1.3 mm 0.337" - 0.052" | 1.7 mm - 0.27 mm 0.067" - 0.010" | 0.857 - 0.133 mm 0.034" - 0.005" | 0.429 - 0.067 mm 0.017" - 0.003" | 0.171 - 0.027 mm 0.007" - 0.001" | 0.086 - 0.013 mm 0.003" - 0.001" |
| Working Distance: | 97 mm (3.8") | 44.5 mm (1.8") 11.7 mm (0.5") | 34 mm (1.3") 15.33 mm (0.6") | 31 mm (1.2") 11.02 mm (0.4") | 20.5 mm (0.8") 7.9 mm (0.3") | 12.5 mm (0.5") 1.75 mm (0.1") |
| * Data are estimated by calculation. Optional rear couplers available (0.35x, 0.5x, 0.75x, 1.5x, 2x) for lowering or increasing magnification without changing working distance. Video magnification will be increased by the same factor. Field of view will be changed by inverse factor. | ||||||
