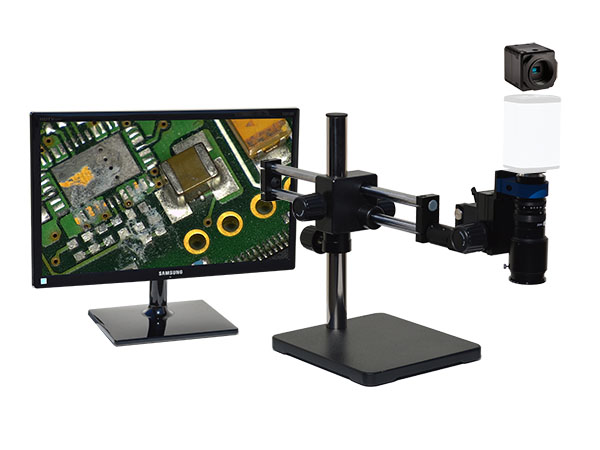

HD701 is a pure HDMI output digital microscope great for applications requiring the system to be used as a standalone unit for live viewing on a monitor. When paired with 12″ or 24” HD monitor, the manual focus digital microscope offers the most advanced high definition digital camera technology to deliver Full HD 1080p resolution motion video with no lag time. The HD digital microscope has magnification range of 5x-122x on 24″ HD monitor or 2x-59x on 12″ HD monitor, equating to 0.2″-4.1″ diagonal field of view range at long working distance range of 4.5”-12”. These specifications are ideal for assembly, inspection, training, and real-time viewing applications. An optional rear 2x lens can be used to increase the magnification range up to 244x without changing working distance.

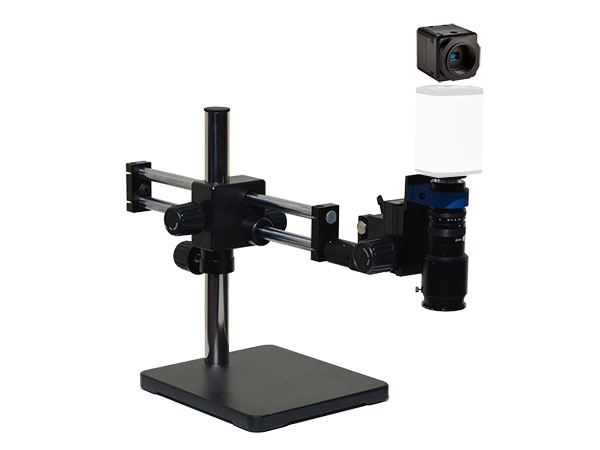

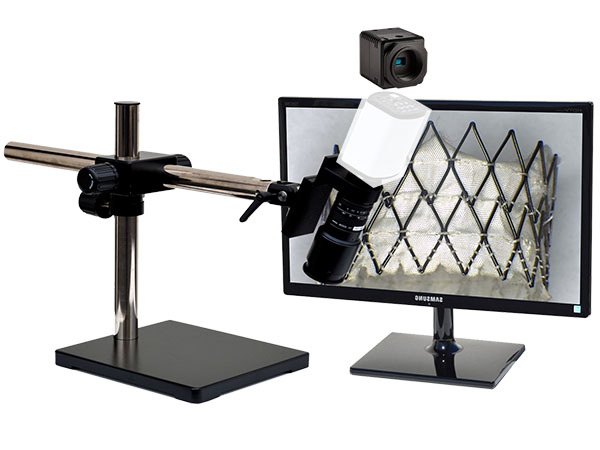

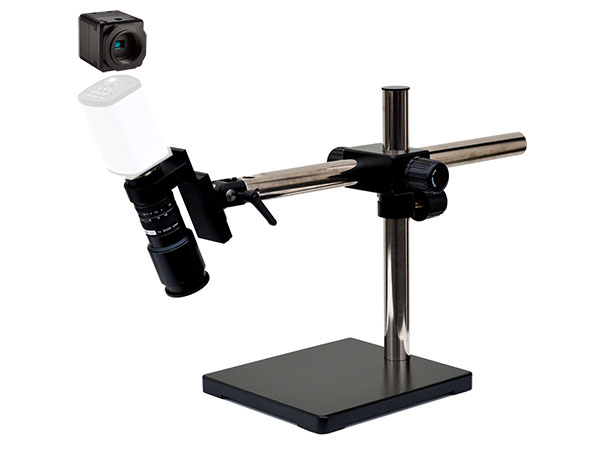

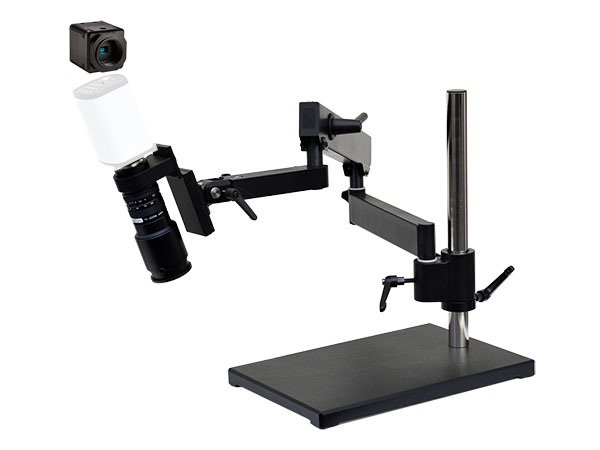

The HD701 HDMI output digital microscope can be configured with various stands, including basic stand, universal boom stand, dual sliding arm stand, and articulating arm stand. The microscope includes adjustable high intensity LEDs for bright uniform lighting for great picture quality and a diffuser glass filter to reduce glare on highly reflective parts. Other lighting options, such as polarizer lighting and dual arm goose arm lighting, are also available. The optional accessory laser light pointer is great for locating the inspection area. XY measurement stages are also available with the HD701 for applications requiring measurement.
HD701 HDMI Output Digital Microscope Benefits
- HD 1080p pure HDMI output digital microscope
- Designed ergonomically to minimize eye fatigue and neck strain
- Great Depth of Field
- Long Working Distance range: 4.5″ to 12″
- Adjustable Viewing Angles (0 to 90 degrees)
- Real Time Full Motion HD1080p 60fps
- Large 24″ HD monitor can be connected via HDMI for discussion or training purposes
- Wide zoom ratio with constant focus
- Full camera, lens and lighting adjustments
- Many stand options: basic stand, universal boom stand, dual sliding arm stand, articulating arm stand
- Adjustable high intensity LEDs with diffuser glass included
- Other accessories available: laser pointers, fluorescent/halogen lighting, XY measurement stages
HD701 HDMI Digital Microscope Applications
- Assembly
- Production
- Quality Control
- Failure Analysis
- Electronics
- Medical Device
- Machining
- Aerospace
- Natural Science
- Training
- Education
- Research and Development
- Forensics
- Pharmaceuticals
- Micro Electronics
- SMT
- Semiconductor
Systems can also be configured with camera with Imaging/Measurement Software (HD801),
4K cameras (4K201, 4K301) or Auto Focus camera (HDAF201)
HD701 HDMI Output Digital Microscope Viewing Chart
| Working Distance | Field of View (Diagonal) | Video Mag. 12" Monitor | Video Mag. 24" Monitor | |||
| Low Mag. | High Mag. | Low Mag. | High Mag. | Low Mag. | High Mag. | |
| 4.5" (114 mm) | 1.2" | 0.2" | 9x | 59x | 20x | 122x |
| 30 mm | 5 mm | |||||
| 5" (127 mm) | 1.4" | 0.2" | 8x | 48x | 16x | 100x |
| 36 mm | 6.1 mm | |||||
| 6" (152 mm) | 1.9" | 0.3" | 6x | 36x | 13x | 75x |
| 47 mm | 8.1 mm | |||||
| 8" (203 mm) | 2.6" | 0.5" | 4x | 26x | 9x | 53x |
| 65 mm | 11.5 mm | |||||
| 10" (254 mm) | 3.3" | 0.6" | 3x | 20x | 7x | 41x |
| 85 mm | 15 mm | |||||
| 12" (305 mm) | 4.1" | 0.7" | 2x | 16x | 5x | 34x |
| 103 mm | 18 mm | |||||
Optional 1.5x lens [Working Distance reduces to approximate 53mm (2.1 inch) for 3.2 to 19mm (0.13 to 0.75 inch) DFOV] and also rear 2x lens (no change in working distance) are available.
