Starting at $2700+

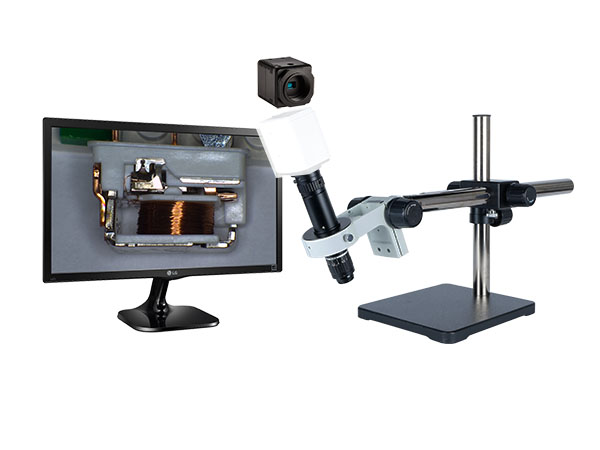

HD706 is a high magnification HDMI digital microscope with complete standalone functionality through direct connection to a high definition monitor for live viewing. The manual focus HD706 can be paired with a 12″ or 24″ HD monitor to display superb image quality at 60 frames per second for inspection, real time viewing, training and communication with other engineers or colleagues. No computer connection is needed, making the system quick and easy to boot up for immediate use.
The HDMI output digital microscope has long working distance range of 1.5 inch to 10.6 inch, which provides good clearance for production, QC, QA, FA and R&D applications. When system is configured with a 12″ Retina HD Display, it eliminates monitor foot print on work bench and also provides adjustable viewing angles. The system has possible video magnification range of 2x to 982x on a 12” HD monitor, and possible range of 6x to 2032x video magnification on a 24” HD monitor. HD706 has diagonal field of view range from possible 0.6mm to 95mm (0.012 inch to 3.7 inch). High intensity LEDs with adjustable dimmer are included to provide bright and uniform lighting.

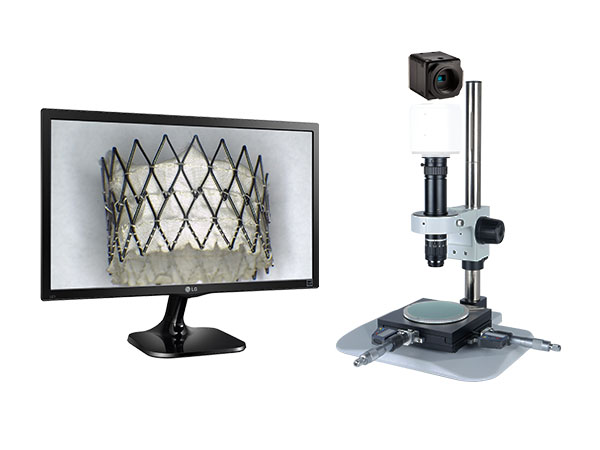

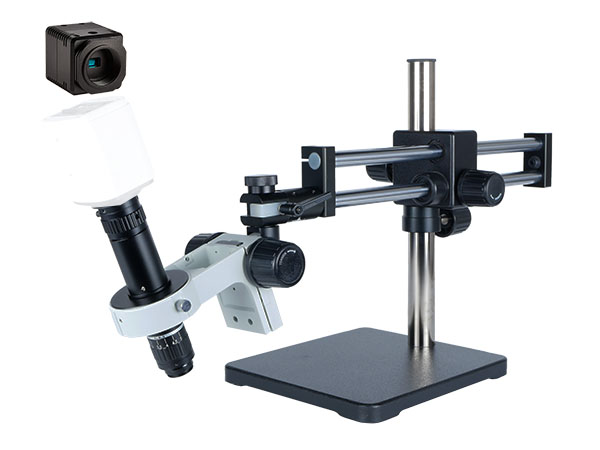

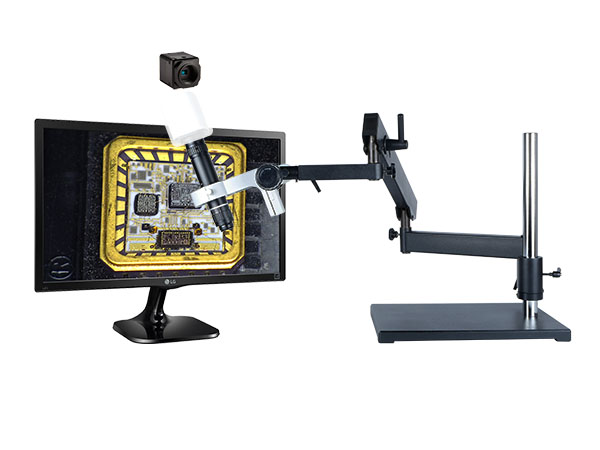

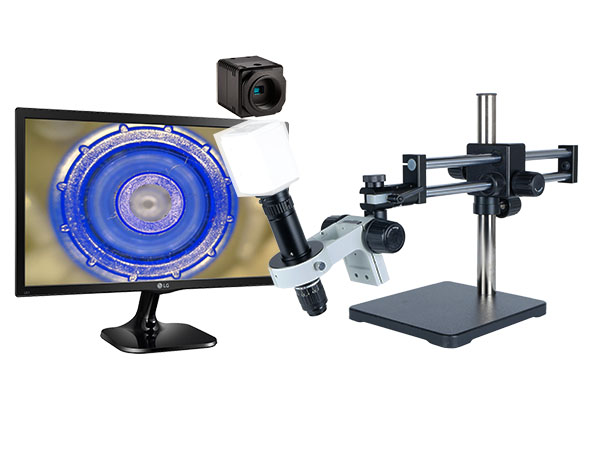

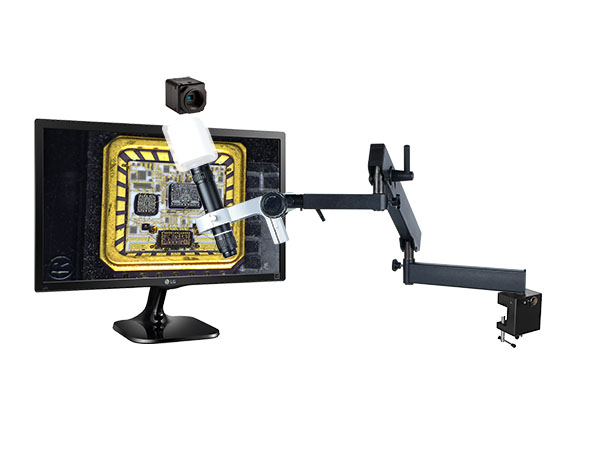

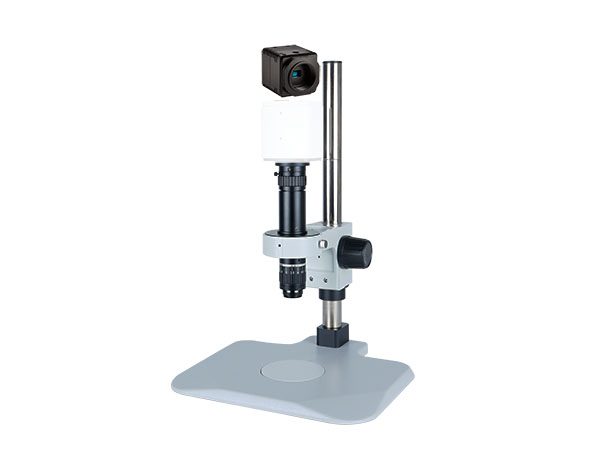

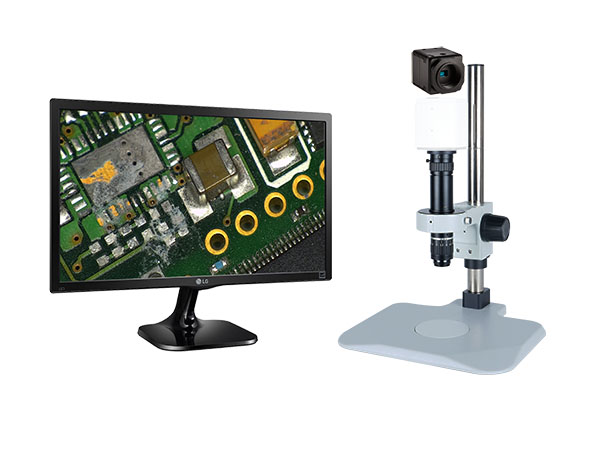

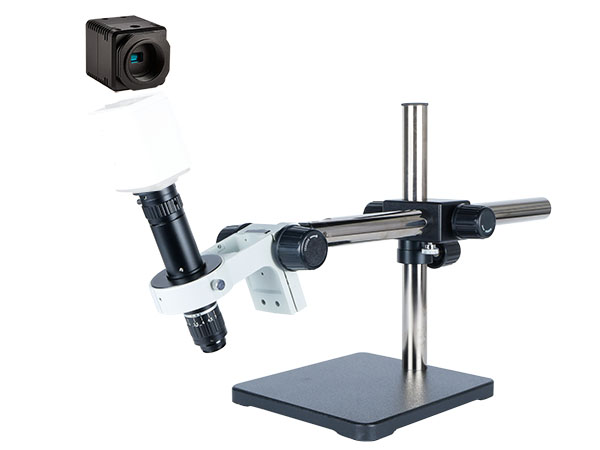

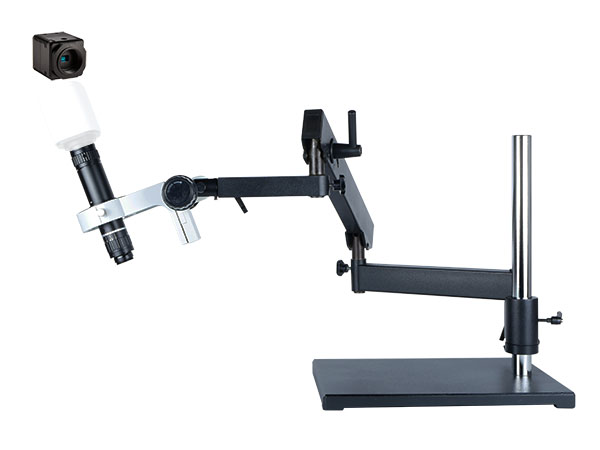

This HD inspection system is available with various microscope stands, such as articulating arm stand, basic stand, back lighting stand, dual arm ball bearing sliding stand, or universal stand. The articulating arm stands can be mounted using clamps to work bench edge or hard mount to table surface. Depending on your stand choice, viewing angle can be changed from top down to oblique side profile for versatile positioning. For routine measurement needs, XY measurement stage with cross hair is available so you can see measurements on-screen. Other lighting options including internal coaxial lighting (bright field lighting for wafer, die or cross section), polarizer lighting, dual arm fiber light guide and fluorescent are also available. Laser pointer accessory is an option great for applications that require visually locating the inspection area. For more specific customization needs, please contact us.
HD706 High Magnification HDMI Digital Microscope Benefits
- HD 1080p digital microscope with HDMI output
- Ergonomic: minimizes eye fatigue and neck strain
- Great Depth of Field
- Long Working Distance range: 1.5″ to 10.6″
- Adjustable Viewing Angles (0 to 90 degrees)
- Real Time Full Motion HD1080p 60fps
- Large 24″ HD monitor available, connects via HDMI for discussion or training purposes
- Wide zoom ratio with constant focus
- Full camera, lens and lighting adjustments
- Many stand options: basic stand, boom stand, dual sliding arm stand, articulating arm stand
- Adjustable high intensity LEDs with diffuser glass included
- Other accessories available: laser pointer, fluorescent/halogen lighting, XY measurement stage
HD706 HDMI Digital Microscope Applications
- Assembly
- Production
- Quality Control
- Failure Analysis
- Electronics
- Medical Device
- Machining
- Aerospace
- Natural Science
- Training
- Education
- Research and Development
HD706 Detent Click Stops and Telecentric Features
Optional Digital Microscope Add-On Features
Turret for High Power Objectives
Coaxial Lighting Port
Differential Interference Contrast (DIC)
Eyepiece
Systems can also be configured with camera with Imaging/Measurement Software (HD806),
4K camera (4K206, 4K306), USB 3.0 camera (USB306), or Auto Focus camera (HDAF206)
HD706 High Magnification HDMI Digital Microscope Viewing Chart
(Mobile: swipe left for horizontal scrolling)
| Adapter: | 0.3x | 0.5x | 0.6x | 1x (standard) | 1.5x | 2x |
| Video Magnification on 11.6" Monitor: | 8x - 74x | 14x - 123x | 17x - 147x | 29x - 246x | 44x - 368x | 58x - 491x |
| Video Magnification on 24" Monitor: | 18x - 152x | 30x - 254x | 36x - 305x | 61x - 508x | 91x - 762x | 121x - 1016x |
| Field of View (Diagonal): | 33.3 mm - 4.0 mm 1.31" - 0.157" | 20.0 mm - 2.4 mm 0.787" - 0.094" | 16.7 mm - 2.0 mm 0.656" - 0.079" | 10.0 mm - 1.2 mm 0.394" - 0.047" | 6.7 mm - 0.8 mm 0.262" - 0.031" | 5.0 mm - 0.6 mm 0.197" - 0.024" |
| Working Distance: | 270 mm (10.6") | 160 mm (6.3") | 130 mm (5.1") | 86 mm (3.4") | 50 mm (2.0") | 39 mm (1.5") |
| * Data are estimated by calculation. Optional rear couplers available (0.3x, 0.4x, 0.5x, 0.75x, 1.5x, 2x, 3x) for lowering or increasing magnification without changing working distance. Video magnification will be increased by the same factor. Field of view will be changed by inverse factor. Standard Optical Body Zoom Range: 0.6X~5X. Zoom Ratio: 1 : 8.3. Detent click stops at 0.6X, 0.8X, 1.0X, 1.5X, 2.0x, 2.5x, 3.0x, 3.5x, 4.0x, 4.5x, 5.0x lockable. Telecentric from 1x to 4x. FOV d : h : v ratio is about 18.35756 : 16 : 9 for estimation purpose. | ||||||
Below chart is for system with 0.5x Rear Coupler
| Adapter: | 0.3x | 0.5x | 0.6x | 1x (standard) | 1.5x | 2x |
| Video Magnification on 11.6" Monitor: | 4x - 37x | 7x - 61x | 9x - 74x | 15x - 123x | 22x - 184x | 29x - 246x |
| Video Magnification on 24" Monitor: | 9x - 76x | 15x - 127x | 18x - 152x | 30x - 254x | 46x - 381x | 61x - 508x |
| Field of View (Diagonal): | 66.7 mm - 8.0 mm 2.62" - 0.31" | 40.0 mm - 4.8 mm 1.57" - 0.19" | 33.3 mm - 4.0 mm 1.31" - 0.16" | 20.0 mm - 2.4 mm 0.79" - 0.09" | 13.3 mm - 1.6 mm 0.52" - 0.06" | 10.0 mm - 1.2 mm 0.39" - 0.05" |
| Working Distance: | 270 mm (10.6") | 160 mm (6.3") | 130 mm (5.1") | 86 mm (3.4") | 50 mm (2.0") | 39 mm (1.5") |
| * Data are estimated by calculation. Optional rear couplers available (0.3x, 0.4x, 0.5x, 0.75x, 1.5x, 2x, 3x) for lowering or increasing magnification without changing working distance. Video magnification will be increased by the same factor. Field of view will be changed by inverse factor. Standard Optical Body Zoom Range: 0.6X~5X. Zoom Ratio: 1 : 8.3. Detent click stops at 0.6X, 0.8X, 1.0X, 1.5X, 2.0x, 2.5x, 3.0x, 3.5x, 4.0x, 4.5x, 5.0x lockable. Telecentric from 1x to 4x. FOV d : h : v ratio is about 18.35756 : 16 : 9 for estimation purpose. | ||||||
(Mobile: swipe left for horizontal scrolling)
| Objective: | 1x (standard) | 5x | 10x | 20x | 50x | 100x |
| Video Magnification on 11.6" Monitor: | 29x - 246x | 147x - 1228x | 295x - 2455x | 589x - 4911x | 1473x - 12277x | 2946x - 24553x |
| Video Magnification on 24" Monitor: | 61x - 508x | 305x - 2540x | 610x - 5080x | 1219x - 10160x | 3048x - 25400x | 6096x - 50800x |
| Field of View (Diagonal): | 10.0 mm - 1.2 mm 0.394" - 0.047" | 2.0 mm - 0.24 mm 0.079" - 0.009" | 1.0 mm - 0.120 mm 0.039" - 0.005" | 0.500 mm - 0.060 mm 0.020" - 0.002" | 0.200 mm - 0.024 mm 0.008" - 0.001" | 0.100 mm - 0.012 mm 0.004" - 0.0005" |
| Working Distance: | 86 mm (3.4") | 44.5 mm (1.8") 26.1 mm (1.0") | 34 mm (1.3") 20.2 mm (0.8") | 31 mm (1.2") 8.8 mm (0.3") | 20.1 mm (0.8") 3.7 mm (0.1") | 12.6 mm (0.5") 0.4 mm (0.02") |
| * Data are estimated by calculation. Optional rear couplers available (0.3x, 0.4x, 0.5x, 0.75x, 1.5x, 2x, 3x) for lowering or increasing magnification without changing working distance. Video magnification will be increased by the same factor. Field of view will be changed by inverse factor. Standard Optical Body Zoom Range: 0.6X~5X. Zoom Ratio: 1 : 8.3. Detent click stops at 0.6X, 0.8X, 1.0X, 1.5X, 2.0x, 2.5x, 3.0x, 3.5x, 4.0x, 4.5x, 5.0x lockable. Telecentric from 1x to 4x. FOV d : h : v ratio is about 18.35756 : 16 : 9 for estimation purpose. | ||||||
