Starting at $2100+
HD707 is the ultimate low magnification HDMI digital microscope for applications requiring a pure HDMI connection to a high definition monitor for live inspections. The manual focus system can be paired with a 12″ or 24” HD monitor and features high definition digital camera technology to deliver Full HD 1080p resolution motion video with no lag time. The HD digital microscope offers magnification of 2x-100x (field of view range of 0.18″ to 7″) on 24″ HD monitor with long working distance range of 5.3″ to 16″, which is ideal for assembly, inspection, training, and real-time viewing. Optional rear 2x lens can be used to double the magnification range, up to 200x while maintaining working distances. The digital microscope’s pure HDMI output for live viewing directly on a monitor makes it an excellent choice as a standalone unit for quick visual inspections.
The HD707 HDMI digital microscope can be configured with various stands, XY measurement stages, and lighting accessories. The system includes adjustable high intensity LEDs to provide bright uniform lighting for great picture quality, as well as a diffuser glass filter to reduce glare from highly reflective parts. Other lighting accessories, such as polarizer lighting and dual arm goose arm lighting, are also available to accommodate for application requirements. Optional laser light pointer, which is great for locating the inspection area, is also available for purchase.
HD707 Low Magnification HDMI Digital Microscope Benefits
- Pure HDMI High Definition 1080p digital microscope
- Configured with healthy ergonomics to minimize eye fatigue and neck stress
- Great Depth of Field
- Long Working Distance range: 5.3″ to 16″
- Adjustable Viewing Angles (0 to 90 degrees)
- Real Time Full Motion HD1080p 60fps
- Large HD monitor available to connect via HDMI for discussion or training purposes
- Wide zoom ratio with constant focus
- Full camera, lens and lighting adjustments

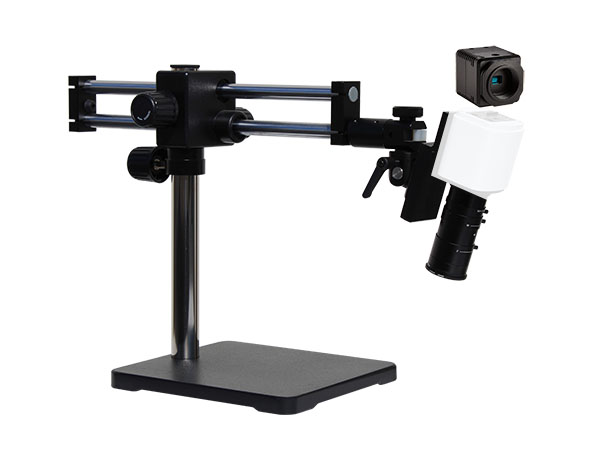

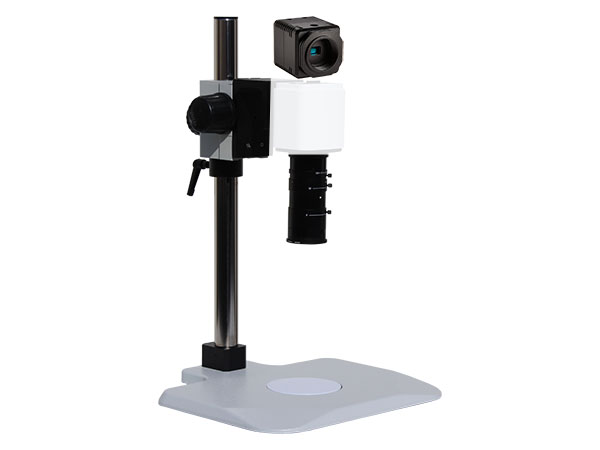

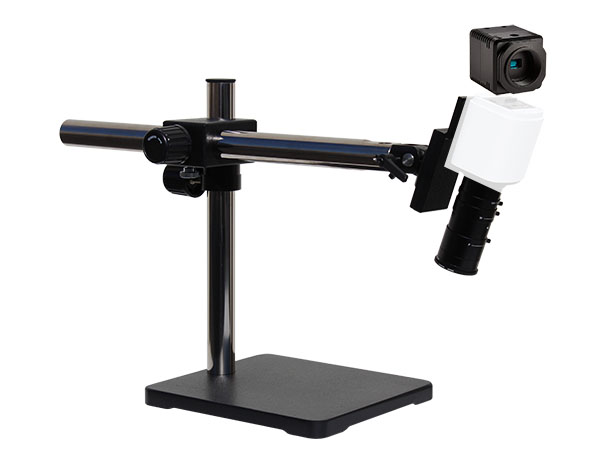

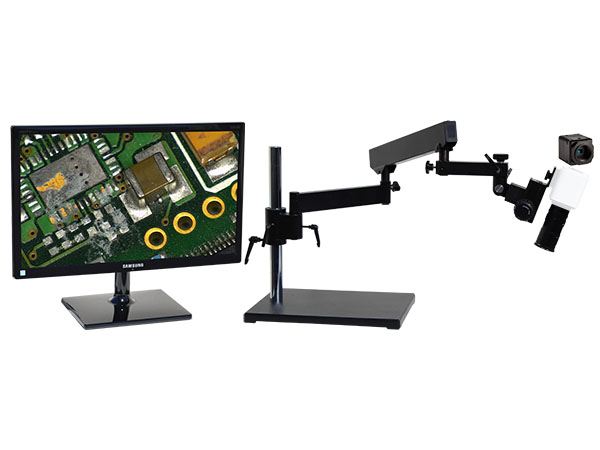

- Many stand options: basic stand, universal boom stand, dual sliding arm stand, articulating arm stand
- Adjustable high intensity LEDs with diffuser glass included
- Optional accessories available: laser pointer, fluorescent/halogen lighting, XY measurement stages
HD707 HDMI Digital Microscope Applications
- Assembly
- Production
- Quality Control
- Failure Analysis
- Electronics
- Medical Device
- Machining
- Aerospace
- Natural Science
- Training
- Education
- Research and Development
- Forensics
- Pharmaceuticals
- Micro Electronics
- SMT
- Semiconductor
