- HD Remote Head Camera
- 1920 x 1080 Pixel
- Sensor 1/2.7″ CMOS
- High quality image in both digital zoom and slow shutter modes
- Video Output HDMI and HD-SDI 2x
- Control Keypad
- Camera Control USB2.0
- Various customizable settings
- Key switch control compatibility
- Exposure control AE Auto (AGC + Shutter), Manual
- White balance Auto, One-push, Manual
- Picture effects Mirror image H and V
- Freeze Mode
(Mobile: swipe left for horizontal scrolling)
| Technical Specifications | |
| Image Device | 1/2.7“ CMOS OV2715 3μm x 3μm |
| Signal System | 1080p/30fps |
| Effective Pixels | 2.14 Megapixels 1920 x 1080 Pixel |
| Lens | S-Mount |
| Digital zoom | Yes |
| S/N ratio | More than 69 dB |
| Electronic shutter | 1/1 sec. to 1/10,000 sec. 16 steps |
| White balance | Auto, One-push, Manual |
| Gain | AE Auto (AGC + Shutter), Manual |
| AE control | Auto / Manual 1/50s to 1/10.000s, 8 steps |
| Picture effects | Mirror image horizontal and vertical |
| Camera Operation Switch | Keypad |
| Video output Digital | HDMI, HD-SDI 2x |
| Output Connector | DC IN (2 pin), HDMI, BNC 2x HD-SDI, USB 2.0 |
| Camera control interface | USB 2.0 |
| Power Requirements | 8 to 28V DC |
| Power Consumption | 3.8 W |
| Operating Temperature | -5° to 60° C |
| Storage Temperature | -20° to 70° C |
| Mass | 400g |

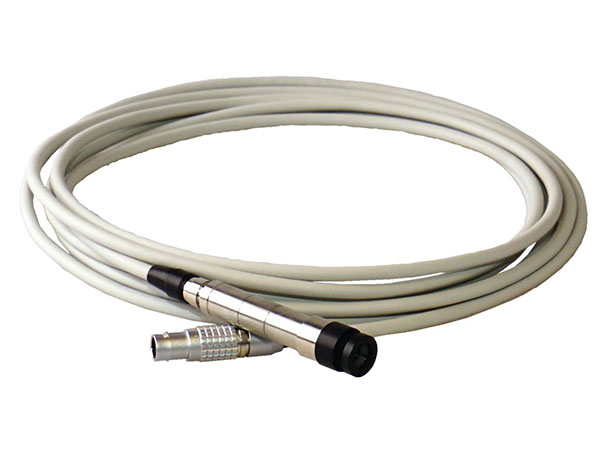

| Mass Remote Head | 50g |
| Cable Length | 3000mm (5m, 10m optional) |
| Dimensions | 155 x 36 x 108mm |
| Dimensions Remote Head | Ø12 x 85mm |
